Aluminum Chip Briquetter
Aluminum Chip Briquetter Introduction:
(1) Small Aluminum Chip Briquetter is multifunctional machine, it can briquette various material, like Kaolin clay, oil shale,urea fertilizer, sand powder, mill scale, coke fines, iron dust, gypsum powder, carbon black, converter dust, etc.
(2) The finish briquette is energy saving and environmental protection, convenient transportation, improve the utilization rate of waste, with advantages of continuous production, high automation, good economic and social benefits.
(3) The small Aluminum Chip Briquetter has 1-6T/H output briquettes production. The size and shape of briquettes is customized but commonly be produced into 25-60mm diameters, the shape shall be oval, round, pillow, square, etc.
(4) Different materials will be designed into different production line work-flow, customer needs to tell us of the materials' moisture, particle size, yield, briquettes size, shape, some special circumstances maybe need auxiliary equipment such as other crusher, mixer, screen mesh, vibration sieve, binder feeder, briquette drying machine, etc.
Aluminum Chip Briquetter Technical Parameter:
Model: XM290
Reducer: ZQ350
Ratio: 1:31.5
Roller Size: 290*200mm
Main Shaft Speed: 12-14r/min
Matched Power: 5.5kw
Capacity: 0.9-1.0t/h
Pressure Type: Constant Pressure

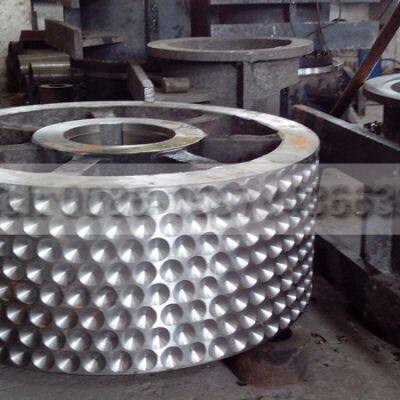

Roller Material: 65Mn, high chrome alloy and 9Cr2Mo
XM Series Coal Briquetting Machine
| Model | Reducer | Ratio | Roller Size(mm) | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| XM290 | ZQ350 | 1:31.5 | 290*200 | 12-14 | 5.5 | 0.9-1.0 | Constant Pressure |
| XM360 | ZQ350 | 1:31.5 | 360*250 | 12-14 | 7.5 | 1.5-2.0 | Constant Pressure/Hydraulic Pressure |
| XM400 | ZQ400 | 1:31.5 | 400*250 | 12-14 | 7.5 | 2.5-3.5 | |
| XM430 | ZQ400 | 1:31.5 | 430*250 | 12-14 | 11 | 3.5-4.5 | |
| XM500 | ZQ650 | 40.17 | 500*470 | 10-12 | 37 | 7.5-8.5 | |
| XM650 | ZQ850 | 40.17 | 650*470 | 9-11 | 45 | 9-10 | |
| XM750 | ZQ1000 | 40.17 | 750*570 | 9-11 | 90 | 13-14 | |
| XM850 | ZQ1250 | 50 | 850*570 | 8-10 | 110 | 15-17 | |
| Remarks: Above capacity is based on material specific gravity 0.8, briquette size: φ50*33mm | |||||||
| Roller material is 65Mn, high chrome alloy and 9Cr2Mo | |||||||
| According to different material adjust machine parameter to meet customer production | |||||||
KF Series Mineral Powder Briquetting Machine
| Model | Reducer | Ratio | Roller Size | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| KF500-371-280 | ZQ500 | 40.17 | 370*280 | 8-10 | 11 | 6.5-7.5 | Constant Pressure/Hydraulic Pressure |
| KF650-500-300 | ZQ650 | 40.17 | 500*300 | 8-10 | 37 | 8.5-9.5 | |
| KF850-650-300 | ZQ850 | 40.17 | 650*300 | 8-10 | 55 | 10.5-11.5 | |
| KF1250-750-350 | ZS1250 | 50 | 750*350 | 7-9 | 110 | 13.5-14.0 | |
| KF1450-850-350 | ZS1450 | 50 | 850*350 | 7-9 | 132 | 15.0-16.0 | |
| KF560-1000-350 | ZSY560 | 50 | 1000*350 | 7-9 | 150 | 17.0-20.0 | |
| Remarks: Above Capacity is based on material specific gravity 2, briquette size:φ50*33mm | |||||||
| Roller material is 65Mn, high chrome alloy and 9Cr2Mo. | |||||||
| According to different material adjust machine parameter to mmet customer production | |||||||
YHG Series Dry Powder High Pressure Briquetting Machine
| Model | YHG-0.5 | YHG-1.5 | YHG-3.0 | YHG-5.0 | YHG-8.0 | YHG-10.0 |
| Roller Diameter(mm) | φ299 | φ367 | φ522 | φ738 | φ760 | φ858 |
| Roller Width(mm) | 180 | 183 | 196 | 210 | 225 | 300 |
| Capacity(t/h) | 0.5 | 1.2-1.4 | 2.5-3.0 | 4.5-5.5 | 7.5-8.5 | 8.0-9.5 |
| Main Reducer | ZQ650 | ZQ850 | ZS1250 | ZS1450 | ZS1650 | ZS1650 |
| Main Motor | 18.5 | 37 | 55 | 75 | 90-110 | 110-132 |
| Pre-pressure Motor(kw) | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 |
| Pre-pressure Reducer | WHC-125 | WHC-160 | WHC-200 | WHC-210 | WHC-210 | WHC-250 |
| Remarks: Above capacity is based on material specific gravity 1.3, briquette size: φ35*30*20mm | ||||||
| Roller material adopts 9Cr2Mo | ||||||
| Pre-pressure motor is speed motor | ||||||
