Pillow charter flight Foodstuffbag pillow charter flight

〖equipment introduction 〗

 Mechanical use of pillow packaging machine: this packaging machine is designed for solid packaging, used for packaging products, so that the product to increase its shelf life, increase the product beauty of a machine. Suitable for packing all kinds of solid state regular objects, such as food biscuits, bread, moon cakes, candy, etc., and daily necessities, industrial parts, etc., for scattered or individual separation objects, must be first in the box, or bind bundle, after the formation of a whole, can be packaged on this machine, as for the other non solid package also must be this point.

〖machine features 〗

〓 With the function of fault self-diagnosis, the fault display is clear.

〓 High sensitivity photoelectric color scale tracking and digital input cutting position, seal cutting is more accurate.

〓 All controls are implemented by the software to facilitate function adjustment and upgrade.

〓 Temperature-independent PID control, suitable for various packaging materials.

〓 Has the positioning shutdown function, do not stick to the knife, do not waste packaging film materials.

〓 Double inverter control, bag length is set and cut, no need to adjust the air walk, one step in place, save time and film.

〖machine parameters 〗

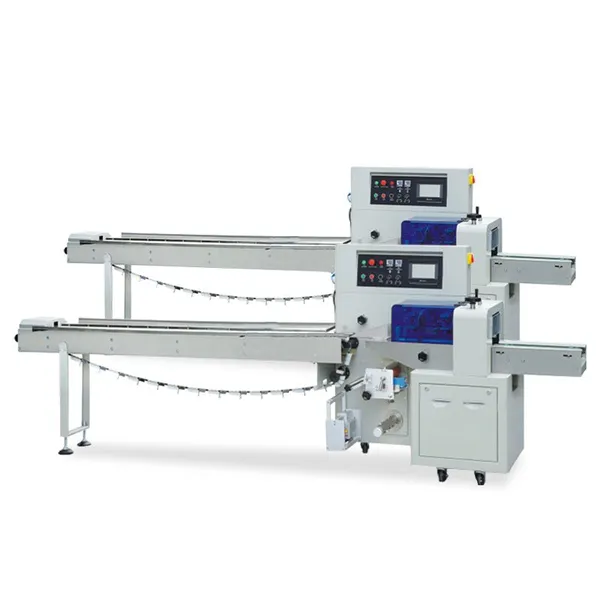

〔〔Upper walking membrane pillow packing machine——HS-ZS250〕〕

Power supply specification: 220V, 50 / 60Hz

Power: 2.4KW

Packaging Film Width: Max.240mm

Length of the bag making (single knife): 150-330mm

Length of the bag making (double knife): 90-220mm

Bag-making width: 30-110mm

Product Height: Max.60mm

Film el diameter: Max.320mm

Packaging speed: 40-230bag / min

Machine weight: 500kg

Equipment size: L3761 * W670 * H1412mm

〔〔Lower walking membrane pillow packing machine——HS-ZS250X〕〕

Power supply specification: 220V, 50 / 60Hz

Power: 2.4KW

Packaging Film Width: Max.240mm

Length of the bag making (single knife): 150-330mm

Length of the bag making (double knife): 90-220mm

Bag-making width: 30-110mm

Product Height: Max.60mm

Film el diameter: Max.320mm

Packaging speed: 40-230bag / min

Machine weight: 500kg

Equipment size: L3905 * W665 * H1375mm

〔〔Upper walking membrane pillow packing machine——HS-ZS320〕〕

Power supply specification: 220V, 50 / 60Hz

Power: 2.4KW

Packaging Film Width: Max.310mm

Length of the bags: 65-190mm or 120-280mm

Bag-making width: 50-145mm

Product Height: Max.45mm

Film el diameter: Max.320mm

Packaging speed: 40-230bag / min

Machine weight: 500kg

Equipment size: L3761 * W670 * H1412mm

〔〔Upper walking membrane pillow packing machine——HS-ZS350〕〕

Power supply specification: 220V, 50 / 60Hz

Power: 2.6KW

Packaging Film Width: Max.340mm

Length of the bag making (single knife): 150-330mm

Length of the bag making (double knife): 90-220mm

Bag-making width: 50-160mm

Product Height: Max.60mm

Film el diameter: Max.320mm

Packaging speed: 40-230bag / min

Machine weight: 550kg

Equipment size: L4011 * W770 * H1412mm

〔〔Lower walking membrane pillow packing machine——HS-ZS350X〕〕

Power supply specification: 220V, 50 / 60Hz

Power: 2.6KW

Packaging Film Width: Max.340mm

Length of the bag making (single knife): 150-330mm

Length of the bag making (double knife): 90-220mm

Bag-making width: 50-160mm

Product Height: Max.60mm

Film el diameter: Max.320mm

Packaging speed: 40-230bag / min

Machine weight: 550kg

Equipment size: L4005 * W765 * H1375mm

〔〔Bottom film pillow charter machine servo model——HS-ZS250XS〕〕

Power supply specification: 220V, 50 / 60Hz

Power: 2.6KW

Packaging Film Width: Max.240mm

Bag length range: automatic induction bag length

Bag-making width: 30-110mm

Product Height: Max.60mm

Film outer diameter: Max.320mm

Packaging speed: 10-25M / min

Machine weight: 550kg

Equipment size: L4005 * W765 * H1375mm

Packaging materials: CPP, OPP, etc

〔〔Bottom film pillow charter machine servo model——HS-ZS350XS〕〕

Power supply specification: 220V, 50 / 60Hz

Power: 2.8KW

Packaging Film Width: Max.340mm

Bag length range: automatic induction bag length

Bag-making width: 50-160mm

Product Height: Max.45-65mm

Film outer diameter: Max.320mm

Packaging speed: 10-25 m / min

Machine weight: 550kg

Equipment size: L3527 * W765 * H1375mm

Packaging material: OPP / CPP, OPP / PE, PET / PE

〔〔Rotary pillow press——HS-ZS260D〕〕

Power supply specification: 220V, 50 / 60Hz

Power: 2.4KW

Packaging film width: Max.260mm

Length of the bag making: 90-230mm

Bag-making width: 30-110mm

Product height: Max.55mm

Film roll diameter: Max.260mm

Packaging speed: 40-250bag / min

Machine weight: 700kg

Equipment size: L3770 * W670 * H1450mm

〔〔Batch packaging machine——HS-ZS800XS〕〕

Power supply specification: 220V, 50 / 60Hz

Power: 3.2KW

Packaging film width: Max.790mm

Bag length range: automatic induction bag length

Bag-making width: 100-370mm

Product height: Max.80mm

Film roll diameter: Max.320mm

Packaging speed: 15 m / min

Machine weight: 950kg

Equipment size: L423 * W112 * H176cm

Note: As the machine is constantly updated, the specific parameters are subject to the physical or contract.
