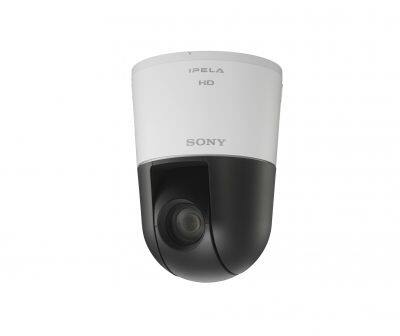

SNC-WR600 Sony 720p PTZ Camera

SNC-WR600 Sony 720p PTZ Camera

Specifications

Camera

Image Sensor1/3-type progressive scan Exmor CMOS sensor

Number of Effective PixelsApprox. 1.37 Megapixels

Signal SystemNTSC/PAL (switchable)

Sync SystemInternal synchronization

Minimum Illumination (50 IRE)Color: 0.2 lx (F1.6, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)

B/W: 0.015 lx (F1.6, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)

Minimum Illumination (30 IRE)Color: 0.12 lx (F1.6, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)

B/W: 0.009 lx (F1.6, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps)

Dynamic RangeEquivalent to 130 dB with View-DR technology

S/N Ratio (Gain 0 dB)More than 50 dB

GainAuto/Manual

Shutter Speed1/1 s to 1/10,000 s

Exposure ControlFull auto, Shutter priority, Iris priority, Manual

White BalanceATW, ATW-PRO, Indoor, Outdoor, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual

LensAuto-focus zoom lens

Powered ZoomYes

Zoom RatioOptical zoom 30x

Digital zoom 12x

Total zoom 360x

Powered FocusYes

Auto FocusYes

Horizontal Viewing Angle58.3° to 2.1°

Vertical Viewing Angle34.8° to 1.2°

Focal Lengthf = 4.3 mm to 129.0 mm

F-NumberF1.6 (Wide) to F4.7 (Tele)

Minimum Object Distance300 mm

Pan/Tilt Angle (powered)360 ° endless rotation/220 °

Pan Speed700 °/s (max.) *1

Tilt Speed700 °/s (max.) *1

Number of Preset Positions256

Number of Tour Programs5

Camera Features

Day/NightTrue D/N

Auto-rotation ModeYes

Wide-DView-DR

Tone CorrectionVisibility Enhancer

Defog Image ProcessingYes

Highlight CompensationYes

Noise ReductionXDNR

Image StabilizerElectronic

Picture ModeYes

Privacy Masking (number)24

Privacy Masking (shape)Quadrangle

Privacy Masking (color/effect)Opaque 14 colors (Black, White, Red, Green, Blue, Cyan, Yellow, Magenta, Gray (6 scales)), Mosaic

Edge StorageYes

Compatibility with Cloud ServiceYes

Voice AlertYes

Superimpose Number3 independent positions for characters (Codec, Date & Time, Event, Text (Max. 64 characters)), 1 independent position for a logo mark

Superimpose LanguageEnglish

Menu LanguageEnglish, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai, Turkish, Polish

Smartphone viewerYes

Video

Resolution1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184 (H.264, JPEG)

Compression FormatH.264 (High/Main/Baseline Profile), JPEG

Maximum Frame RateH.264: 60 fps (1280 x 720)

JPEG: 60 fps (1280 x 720)

Bitrate Control ModeCBR/VBR (selectable)

Range of Bit Rate Setting64 Kbps to 32 Mbps

Adaptive Rate ControlH.264

Bandwidth ControlJPEG

Multi streaming CapabilityYes (3)

Number of Clients20

Intelligent Video/Audio Analytics

Analytics ArchitectureDEPA Advanced

Intelligent Motion DetectionYes

Face DetectionYes

Tamper AlarmYes

Scene AnalyticsPassing, Intrusion, Left Object Detection, Removed Object Detection

Audio

Compression FormatG.711/G.726/AAC (16 kHz, 48 kHz)

System Requirements

Operating SystemWindows XP (32 bit) Professional Edition

Windows Vista (32 bit) Ultimate, Business Edition

Windows 7 (32/64 bit) Ultimate, Professional Edition

Windows 8 Pro (32/64 bit)

Windows 8.1 Pro (32/64 bit)

ProcessorIntel Corei7 2.8 GHz or higher

Memory2 GB or more

Web BrowserMicrosoft Internet Explorer Ver. 7.0, Ver. 8.0, Ver. 9.0, Ver. 10.0, Ver. 11.0

Firefox Ver. 19.02 (plug-in free viewer only)

Safari Ver. 5.1 (plug-in free viewer only)

Google Chrome Ver. 25.0 (plug-in free viewer only)

SNC toolboxYes

SNC toolbox mobileYes

Network

ProtocolsIPv4, TCP, UDP, ARP, ICMP, IGMP*, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, SMTP, IPv6, HTTPS, FTP (client), SNMP (v1, v2c, v3), SSL

*SSM (Source Specific Multicast) is supported.

Number of IP Address/Mac ADDRESS1

QoSDSCP

Multicast Streaming SupportYes

ONVIF ConformanceProfile S, Profile T

AuthenticationIEEE802.1X

Interface

Analog Video OutputBNC x1, 1.0 Vp-p, 75 Ω, unbalance, sync negative

480 TV lines

Microphone InputMini jack (monaural), MIC IN/LINE IN: 2.5 V DC plug-in power

Line InputMini jack (monaural)

Line OutputMini jack (monaural) Maximum output level: 1 Vrms

Network Port10BASE-T/100BASE-TX (RJ-45)

Alarm Input (Sensor Input)x4, make contact, break contact

Alarm Outputx2, AC 24V/DC 24V, 1 A (mechanical relay outputs electrically isolated from the camera)

Serial InterfaceRS-422/RS-485 (PELCO D protocol)

Card SlotsSD x 1

Confirmed SD Card TypeMax. 64 GB

General

Power RequirementsIEEE802.3at compliant (HPoE system), AC 24 V, DC 12 V

Power Consumption25.0 W max.

Operating Temperature-5 °C to +50 °C

23 °F to 122 °F

Cold Start Temperature0℃ to +50℃

32°F to 122°F

Storage Temperature-20 ℃ to + 60 ℃

-4 °F to + 140 °F

Operating Humidity20 % to 80 %

Storage Humidity20 % to 95 %

Dimensions *2φ146.3 x 204.5 mm

φ5 7/8 inches x 8 1/8 inches

MassApprox. 1.7 kg

3 lb 12 oz

External MaterialBase cabinet: PC+ABS

Camera cabinet: PC+ABS

Side cabinet: PC+ABS

External ColorBase cabinet: 4.4BG 8.4/0.2

Camera cabinet: 3.9PB 0.3/1.0

Side cabinet: 3.9PB 0.3/1.0

Safety RegulationsJATE Technical Standard (LAN)

UL2044, IEC60950-1 (CB)

VCCI (Class A), FCC (Class A), IC (Class A)

Emission: EN55022 (Class A) + EN50130-4

Immunity: EN55022 (Class A) + EN55024

Emission: AS/NZS CISPR22 (Class A)

KCC

EMC-TR

Supplied AccessoriesCD-ROM (supplied programs) (1)

Installation Manual (1)

Ceiling unit (1)

Ceiling bracket (1)

Fixing screws (M4 × 10) (3)

3-pin power connector (1)

BNC cable (1)

I/O cable (1)

Template (1)

Cable clamp (1)

Cable clamp fixing screws (M2.6 × 8, tapping screw) (2)

Optional AccessoriesYT-LD124C (Dome Cover Clear)

YT-LD124S (Dome Cover Smoked)

YT-ICB630 (In-ceiling Bracket)

Notes

*1Available when preset mode is On.

*2The values for dimensions are approximate.
