Home > Products > meat/fish/egg processing line > Complete fish flour production line / fish meal making machine
Complete fish flour production line / fish meal making machine
- 1000 per Month
- T/T Credit Card
You May Like
-
Fish oil process plant / fish oil processing machine
-
horizontal type automatic egg washing machine
-
Automatic whole egg powder processing machine
-
Commercial egg white powder processing machine
-
Hot sale egg white powder production line
-
Factory Genyond Complete egg white & yolk liquid making machine and whole egg powder production plant processing line
Product Description
This small capacity fish meal production line is specially design and manufacture for our customers who want to process leftovers like fish head, fish sausages and offals, also can deal with small whole fresh fish, the whole production line has a compact structure, good-looking appearance, easy operate and good performance.
Raw materials:
Whole fish, different kinds of fresh fish, fish heads, fish sausages and offals
Products: This line can be used to produce nutritional fish meal, it is high quality feed for different kinds animal such as dog, cat, cattle, fish, duck, chicken, the final meal can be easy digestion, nutrition will be 90% better absorbed.
Capacity: 2ton-3ton/day.we can also do 30ton/day,50ton/day,100ton/day.

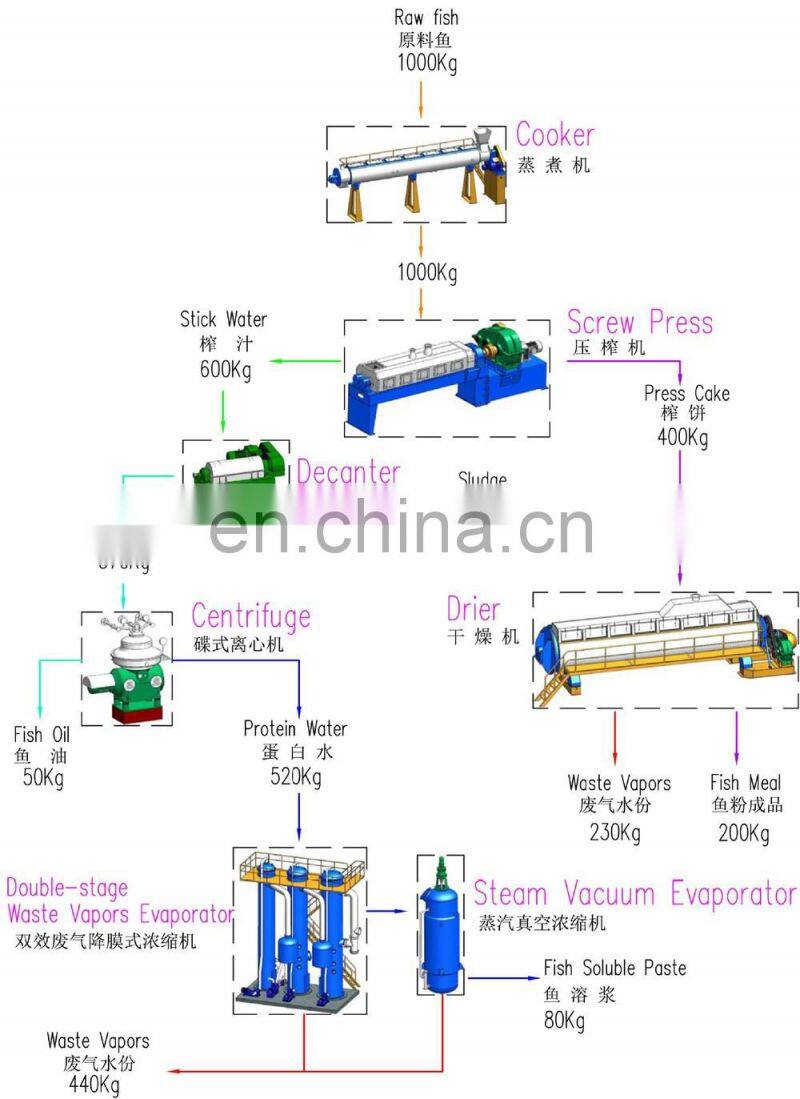

Flow chart:
Screw conveyor----Cooking----Pressing----Drying----Packing
Parameter of small fish meal machine
|
Machine Name |
Model |
Installed power |
Length |
Diameter |
|
Screw Conveyor |
φ160×4000 |
1.1kw |
4000mm |
200mm |
|
Cooking |
φ377×3500 |
1.5kw |
3500mm |
1100mm |
|
Pressing |
φ219×1000 |
1.5kw |
2000mm |
300mm |
|
Drying |
φ820×3500 |
4kw |
3500mm |
1100mm |
Details of small fish meal machine
|
Item |
Description |
Dimension |
Details |
|
1 |
Screw conveyor |
φ170×4000 |
Equipped with reducer 1 set, SS304 |
|
2 |
Electric heating boiler |
φ377×3500 |
Outer heat preservation SUS430, thickness 0.7mm Inner and outer cylinder: Q235B Driving power: 1.5kw Speed adjust by magnetization |
|
3 |
Screw presser |
φ219×1000 |
Outer cover: SUS304 thickness 1.2mm Seive mesh applied SUS304 Driving power: 1.5kw |
|
4 |
Electric heating dryer |
φ820×3500 |
Inner and outer cylinder made of Q235B Preservation SUS430, thickness 0.7mm Driving power: 4kw V=30r/min |
|
5 |
Heat-transfer oil pump |
|
Driving power: 1.5kw |
|
6 |
Electric control carbin |
|
Electric control carbin 1 set |
