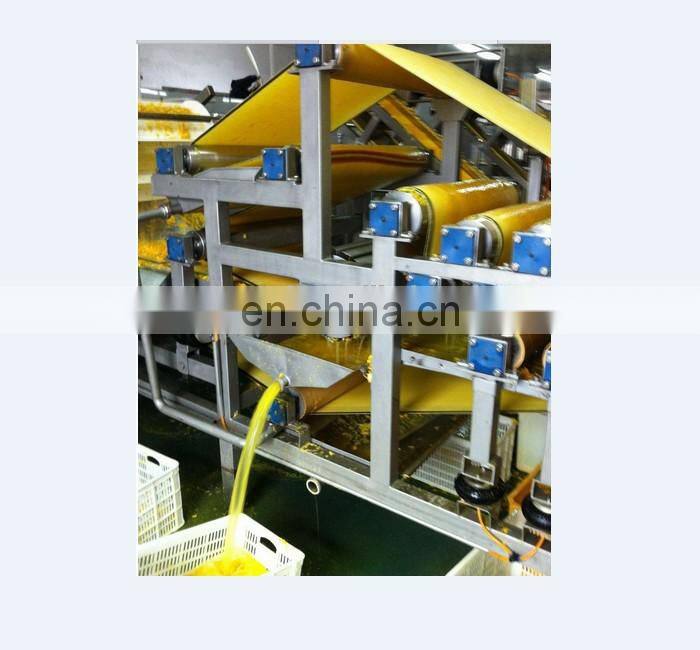

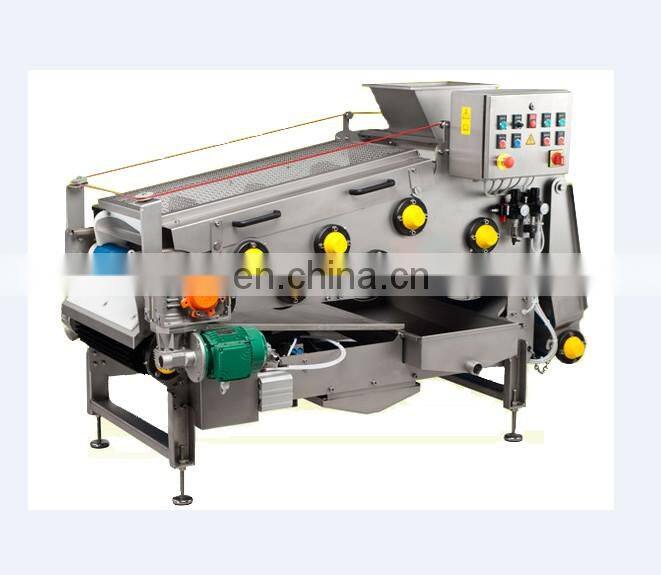

Orange Juice Belt Extractor Machine
- T/T Credit Card
You May Like
-
Manual Cheap Small Commercial Electric Garlic Bulb Splitting Garlic Peeler Equipment Peeling Machine
-
Hot Sale Garlic Peeler Machine
-
Industrial Electric Orange&lemon Peeling Machine
-
High Quality Stainless Steel Fruit Pulping Machine
-
Factory Genyond 20% OFF Fruit Puree Pulping Machine / Juice Screw Pressing Extracting Equipment Extractor Machine
-
Dual Channel Fruit Pulping Machine
Product Description
Technical Parameters:
Belt type juice extractor | |||
Model | GY-500KG - 1000KG | Material: | SUS 304 |
Processing capacity | 0.5T-1T/h | Reflux pump power | 0.75KW |
main drive speed | 0-9r/min | Reflux pump flow | 10m3/h |
Filter line speed | 0-0.1m/s | Reflux pump head | 20m |
Host power | 0.93 KW | Cloth roll power | 0.18KW |
Rinse pump power | 0.75kW | Inlet height | 1900mm |
Flush pump flow | 10m3/h | Host size mm | 1800*800*900 |
Rinse pump head | 120m | Pressing belt size mm | 9100×800 |
Characteristics:
1.The machine is used in fruit and vegetable pressing with high juicing rate.
2. Widely used in VC project,engineering,and brewing of alcohol,starch,feed and others semi-finished products of solid liquid separation mining,but can also used in industrial wastewater treatment,water desalination mustard and other working conditions.
3. All stainless steel,in line with food hygiene standards.
4. Accessory devices are used mainly foreign brand-name products,stable and reliable.
5. Continuous automatic working,airbag control up with,correction,pressure,frequency control.
6. Fully automatic CIP cleaning system,without manual operation,convinent.
7. Control system with touch screen operation,intuitive interface,simple and efficient.
8. Energy saving,to recycle clean water from the arc network with filters.
9. Depending on operating conditions,there are three kinds of cleaning pumps available,vertical multi-stage pump,single screw pump and centrifugal pump.
Equipment scope:
This type of belt squeeze extractor is based on advanced foreign technology.Developed by many technical experts of the domestic industry.This dewater equipment posses the 90's advanced international level,which is mainly used for fruit juice extraction,particularly applicable to berry,kernel fruit and vegetable juicing.The product capacity reaches 20 ton per hour.The advantages are high juice rate,low energy and simple operation.It is one of the most ideal squeezing machine for large and medium-sized fruit juice factory.
The machine is a new efficient and continuous operation of solid-liquid separation equipment.
In addition to the fruit juice industry,it is also used in the city sewage treatment plant, water plant, paper, leather, printing and dyeing, slaughter, petrochemical, pharmaceutical, metallurgical materials, brewing,food and other industry wastewater sludge dewatering.
Company Profile
Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
