Labbler Round Jartargeting Machine

【Introduction 】

 The marking machine is the equipment that pasted the adhesive paper label (paper or metal foil) on the PCB, product or specified packaging. The labeling machine is an important part of modern packaging, which can be produced by single machine or connected to the assembly line production.

【machine features 】

⊕ The adjustment is simple, the labeling speed, the delivery speed can be adjusted according to the need.

⊕ The order effect is neat and beautiful, improve the product packaging grade.

⊕ Can be flexibly connected to the automatic pipeline or single-alone use.

⊕ Human-computer interaction interface, the parameter modification is intuitive and clear.

【product parameters】

〔〔One-button single-player——HS-TB101〕〕

Type: research control step motor control

Order speed: 40-100 pieces / min

Order accuracy: ± 3mm

Exit speed: 25 m / min

Conveyor belt speed: 25 m / min

Conveyor belt length: 1,000 mm

Height: 600-850mm

Host direction: right and left

Carton Height: Max.300mm

Carton width: Max.300mm

Overall dimension: L1000 * W500 * H1200mm

Weight: 100kg

Power: 400W

Power supply: 220V, 50 / 60Hz

Operating ambient relative temperature: 0 to 50℃

Use of relative humidity: 15~90%

〔〔Touch screen type stick single machine——HS-TB102〕〕

Type: research control step motor control

Order speed: 50-100 pieces / min

Order accuracy: ± 3mm

Exit speed: 31 m / min

Conveyor belt speed: 31 m / min

Conveyor belt length: 1,200 mm

Height: 600-850mm

Host direction: right and left

Carton Height: Max.300mm

Carton width: Max.400mm

Overall dimension: L1200 * W700 * H1300mm

Weight: 120kg

Power: 400W

Power supply: 220V, 50 / 60Hz

Operating ambient relative temperature: 0 to 50℃

Use of relative humidity: 15~90%

〔〔Rub the rolling vertical round bottle labeling machine——HS-TB211〕〕

Labeling speed: approximately 0-150P / min

Labeling accuracy: ± 1mm

Product diameter range: 20-110mm

Product height range: 30-350mm

Label length range: 10 to 300 mm

Width of the label base sheet: 10-150mm

Label OD: Max.300mm

Label inner diameter: Max.76mm

Ambient temperature: 0-50℃

Ambient humidity: 15-85%

Voltage specification: 220V, 50Hz

Dimensions: L2100 * W1300 * H1600mm

Weight: 150 Kg

〔〔Position the vertical bottle labeling machine——HS-TB212〕〕

Voltage specification: 220V, 50Hz

Labeling speed: approximately 0-60P / min

Labeling accuracy: ± 1mm

Product diameter range: 20-110mm

Product height range: 30-350mm

Label length range: 10 to 350 mm

Width of the label base sheet: 10-150mm

Label OD: Max.300mm

Label inner diameter: Max.76mm

Ambient temperature: 0-50℃

Ambient humidity: 15-85%

Dimensions: L2100 * W1500 * H1600mm

Weight: 150 Kg

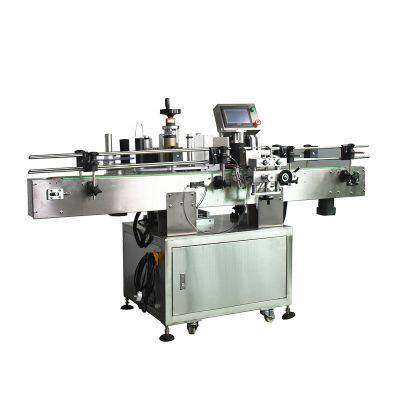

〔〔Round bottle label machine——HS-TB320〕〕

Labeling speed: 30~50 pieces / min (related to bottle and label size)

Labeling accuracy: ± 1mm (excluding product, label error)

Product diameter range: φ 40~100mm

Product height range: 25~230mm

Label length range: 40 to 300 mm

Width of the label base sheet: 20~130mm

Label OD: Max.Φ300mm

Label drum inner diameter: Φ 76mm

Applicable power supply: 220V, 50Hz

Dimensions: L1750 * W800 * H1450mm

Weight: 185 Kg

〔〔High-speed single machine——HS-TB104〕〕

Type: research control step motor control

Order speed: 40-150 pieces / min or above

Order accuracy: ± 3mm (no stickers and labeling errors)

Exit speed: 5~50 m / minute

Conveyor belt speed: 5~50 m / min

Delivery line width: 400mm

Delivery line length: 1,500 mm

Height of conveying surface above ground: 700-850mm (adjustable)

Host direction: right and left

Carton Height: Max.400mm

Carton width: Max.400mm

Overall dimensions: about L1500 * W600 * H1500mm

Weight: about 150kg

Power: about 400W

Power supply: 220V, 50 / 60Hz

Operating ambient relative temperature: 0 to 50℃

Use of relative humidity: 15~90%

〔〔Plane labeling machine——HS-TB300〕〕

Power supply voltage: 110V / 220V

Power: 800W

Conveyor belt width: 300mm

Conveyor belt speed: 35 m / min

Labeling speed: 20-250 pieces / min

Label width: 73-100mm

Label length: 130-180mm

Labeling height: 300mm

Order accuracy: ± 2mm

Machine weight: 80kg

Machine size: L1200 * W420 * H1300mm

Note: As the machine is constantly updated, the specific parameters are subject to the physical or contract.
