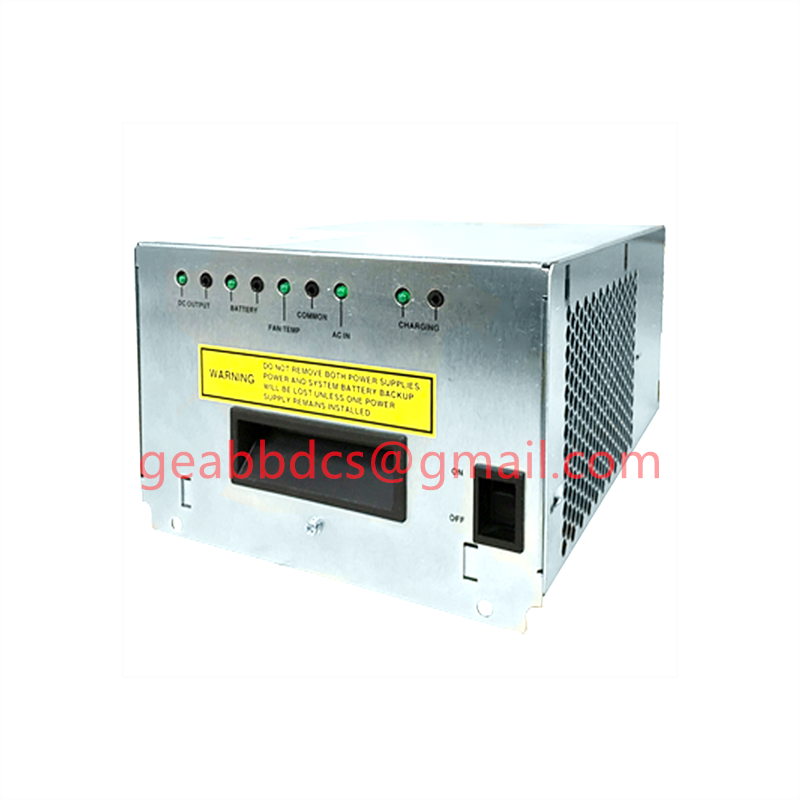

SE3007 Power Redundancy Module

The 155M dual optical interface can better support the outstanding advantages of the fiber optic transmission ControlNet bus, such as peer-to-peer transmission, burst data, bus arbitration, etc., while achieving high-speed long-distance transmission, electrical and ground wire isolation, and reducing interference. The product is industrial grade design, IP30 protection level, corrugated aluminum reinforced casing, 35mm rail installation, DC (9-36) V wide power input, and has relay alarm output Advantages such as dual power redundancy and isolation protection.

Features:

*Supports logical independent dual ControlNet buses

*Flexible selection of 1-2 ControlNet BNC-F electrical ports and 1-2 155M fiber optic interfaces, supporting redundant dual network fiber optic ring topology

*A fiber optic distance of over 20km, 155Mb/s, and a high-speed optical interface better support long-distance reliable transmission of burst data

*Six dual color LED status indicators, fiber optic link and power failure relay output alarms

*Lightning protection for 4000V electrical interface, 1.5 A overcurrent, 600W surge protection. Industrial grade design, EMC testing certification

*DC9-36V wide redundant dual power supply, DC1500V power isolation, reverse protection

*IP30 protection level, corrugated aluminum reinforced casing, using standard

This device has a unique dual electrical service and dual fiber optic interface design, supporting dual network redundancy and fiber optic ring network, as well as supporting point-to-point, star, chain bus, ring network, and hybrid network structures. Long distance transmission of fiber optic with a length of over 20km breaks through the distance limit of cable systems. The dual electrical service channel is logically independent and supports flexible combination of 1-2 optical/electrical interfaces. According to the actual needs of the project, it can achieve 1 fiber optic interface and 1 data interface; 1 fiber optic interface and 2 data interfaces; Two fiber optic interfaces and one data interface; Flexible configuration of 2-way fiber optic interface and 2-way data interface The Ci CF series is a universal product based on standard ControlNet, with a communication rate of 5M

Contact information: 15359293870

WhatsApp:+86 15359293870

Contact person: KELLY

Email: geabbdcs@gmail.com   386353502@qq.com

Official website:

In programming, a program or subroutine required to complete a certain function; Or refers to an independent program unit that can be processed by compilers, assemblers, etc; Or refers to a part of a large software system.

A module, also known as a component, is a collection of program statements that can be individually named and independently perform certain functions (i.e., a collection of program code and data structures). It has two basic features: external features and internal features. External features refer to the interface between a module and the external environment (i.e. the way other modules or programs call the module, including input and output parameters, referenced global variables) and the functionality of the module; Internal characteristics refer to the characteristics of the internal environment of a module (i.e. the local data and program code of the module).

There are various types of modules, such as unit operation module (heat exchanger, distillation tower, compressor, etc.), calculation method module (accelerated convergence algorithm, optimization algorithm, etc.), physical and chemical properties module (vapor-liquid phase equilibrium calculation, enthalpy calculation, etc.), etc.
