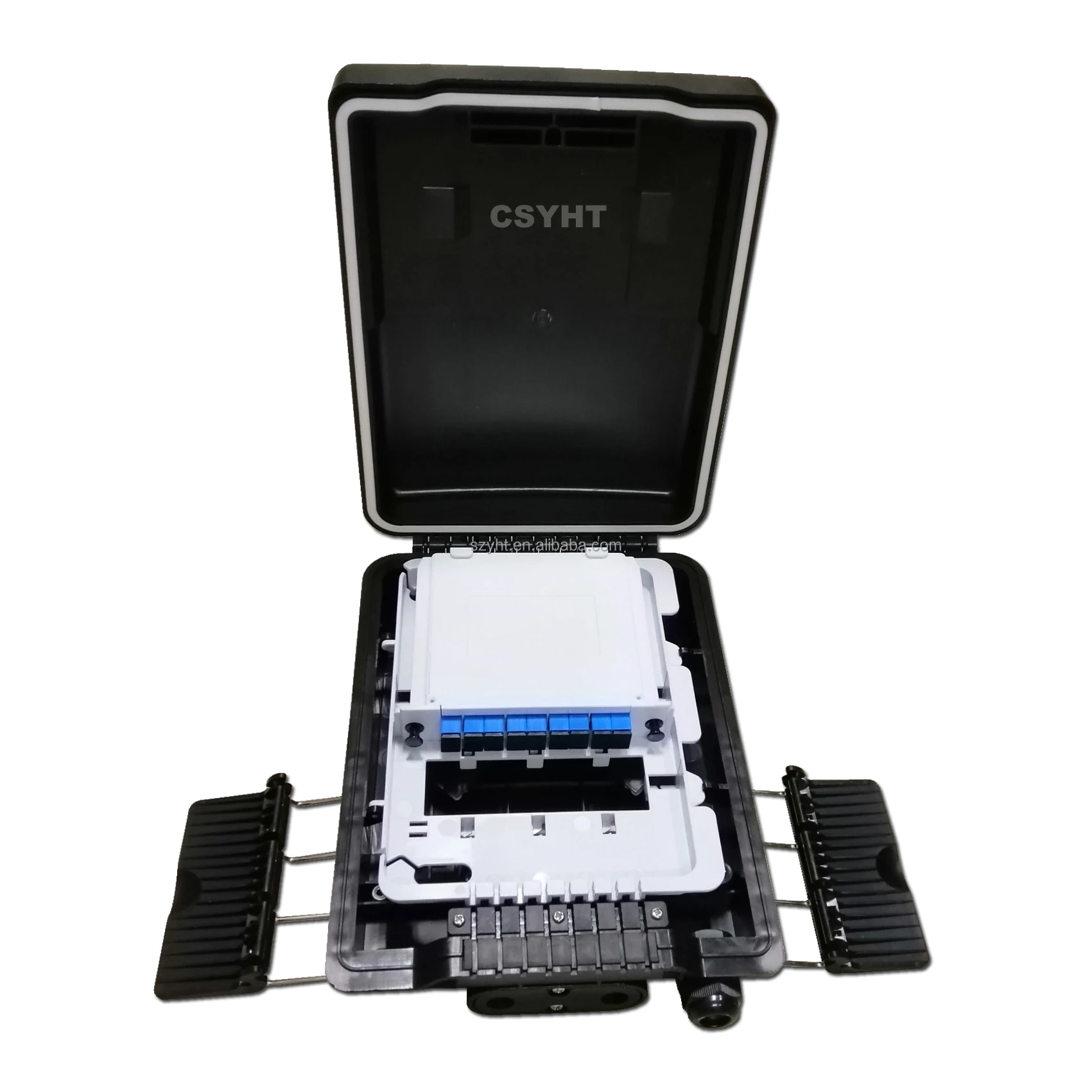

CTO cajas 1x8 NAP ftth terminal box ODB 8 core Outdoor Optical Distribution Box IP65 Black Fiber Nap Box Fiber Home
USD $5 - $8
/ Piece
200 Pieces(Min.Order)
- 10000000 Piece / Pieces per Month
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
-
8 cores FTTH box fiber optic terminal box IP65 with 8 SC adapters ABS+PC material
-
8 Cores FTTH Nap Box Outdoor ABS Plastic 8 Cores FTTH Termination Box Support 1x8 PLC Splitter 8 Port Cable ports
-
Indoor Wall Mounted 4 inlet 8 outlet 2*3mm Drop Cable 8-port Fiber Terminal Box OTB NAP
-
2 cores desk box indoor wall fiber optic box with SC duplex adapter for FTTH project
-
Factory Price 2port SC UPC Simplex indoor Fiber Wall Mount splitter Terminal Box
-
FTTH Network MINI Type 4 core Rosettes Terminal Box Fiber Optic Faceplate OTB 4 Cores
Product Details
| Brand Name | CSYHT | Place of Origin | China | |
| Model Number | OTB-P036 |
Product Description
CTO cajas 1x8 NAP ftth terminal box ODB 8 core Outdoor Optical Distribution Box IP65 Black Fiber Nap Box Fiber Home
Product Description

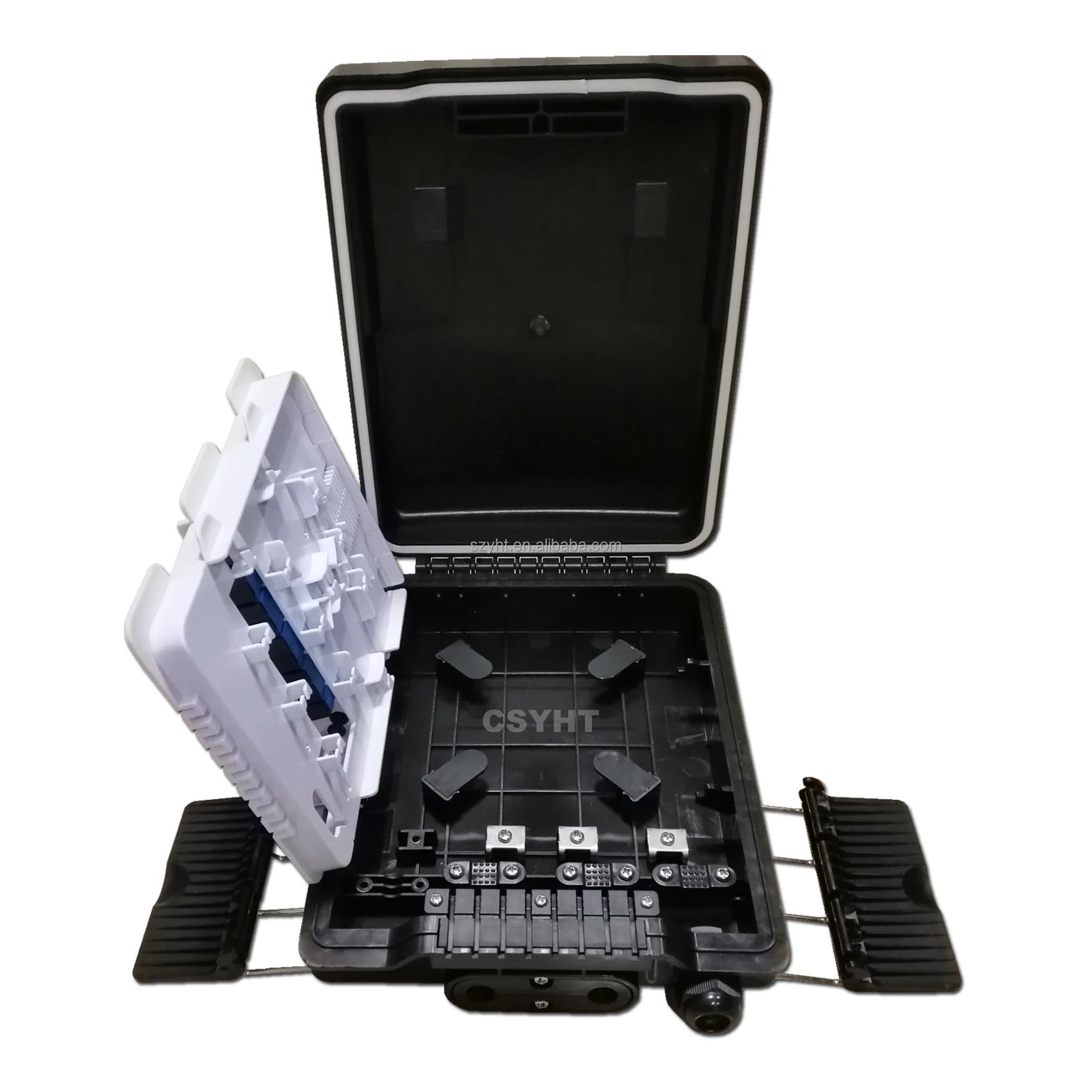

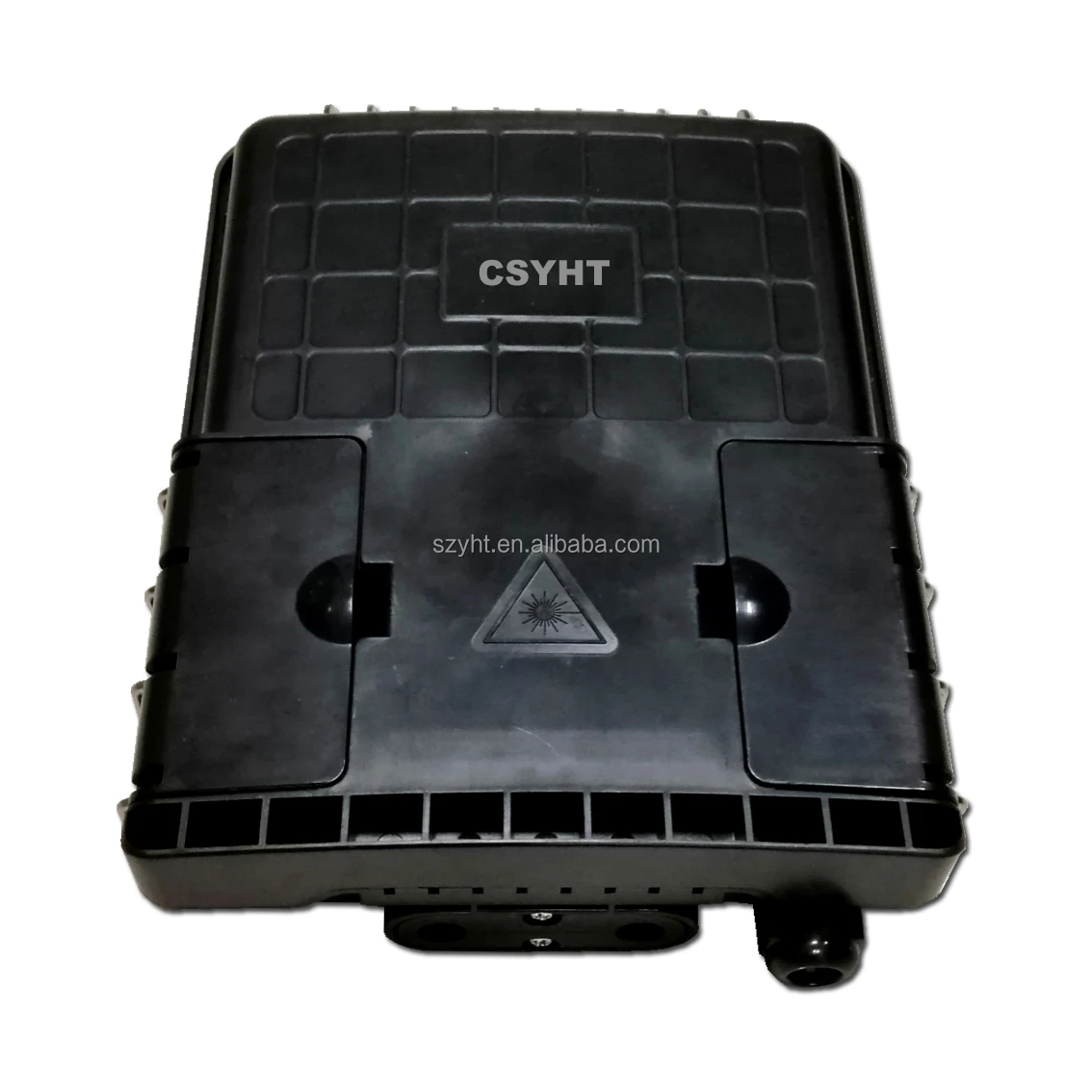

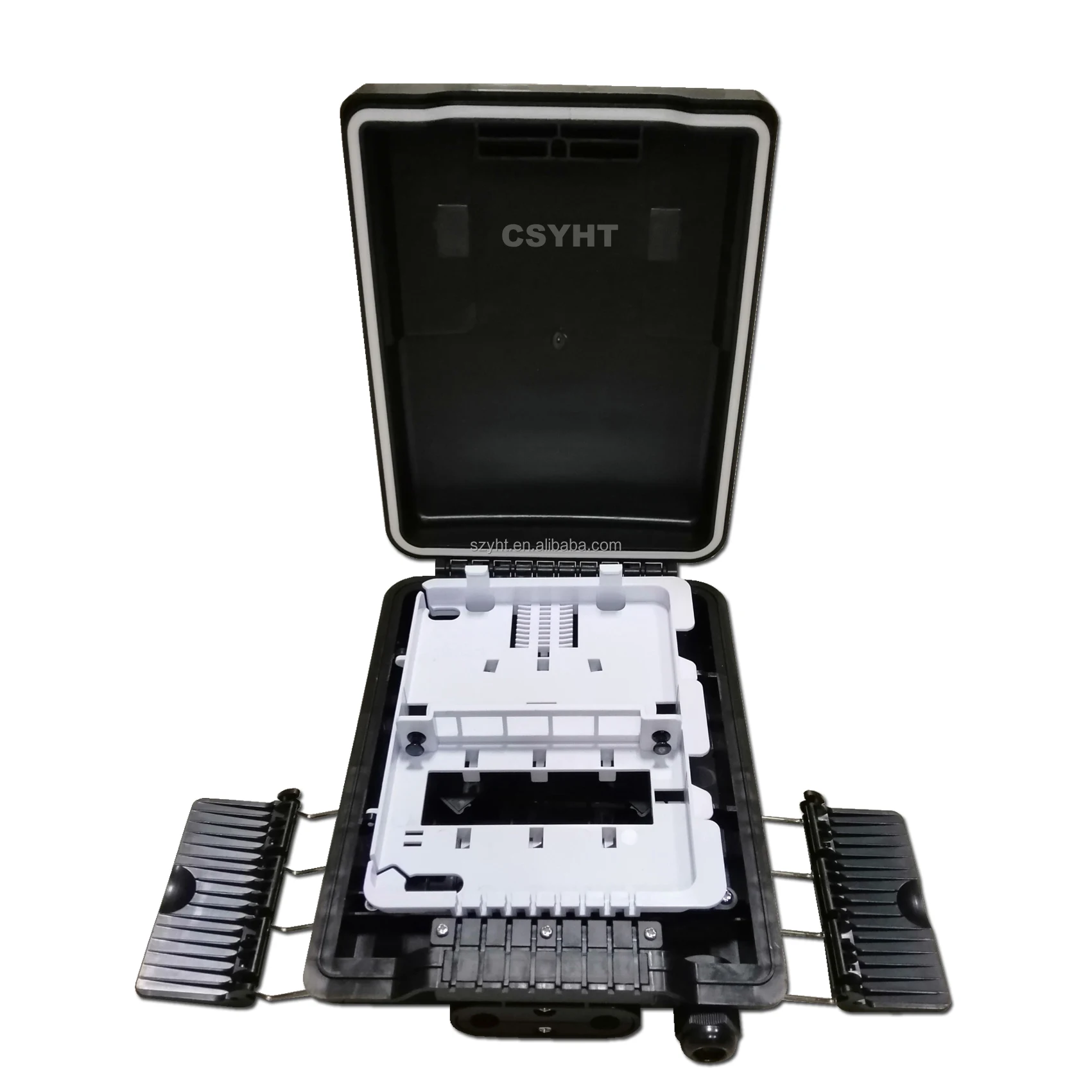

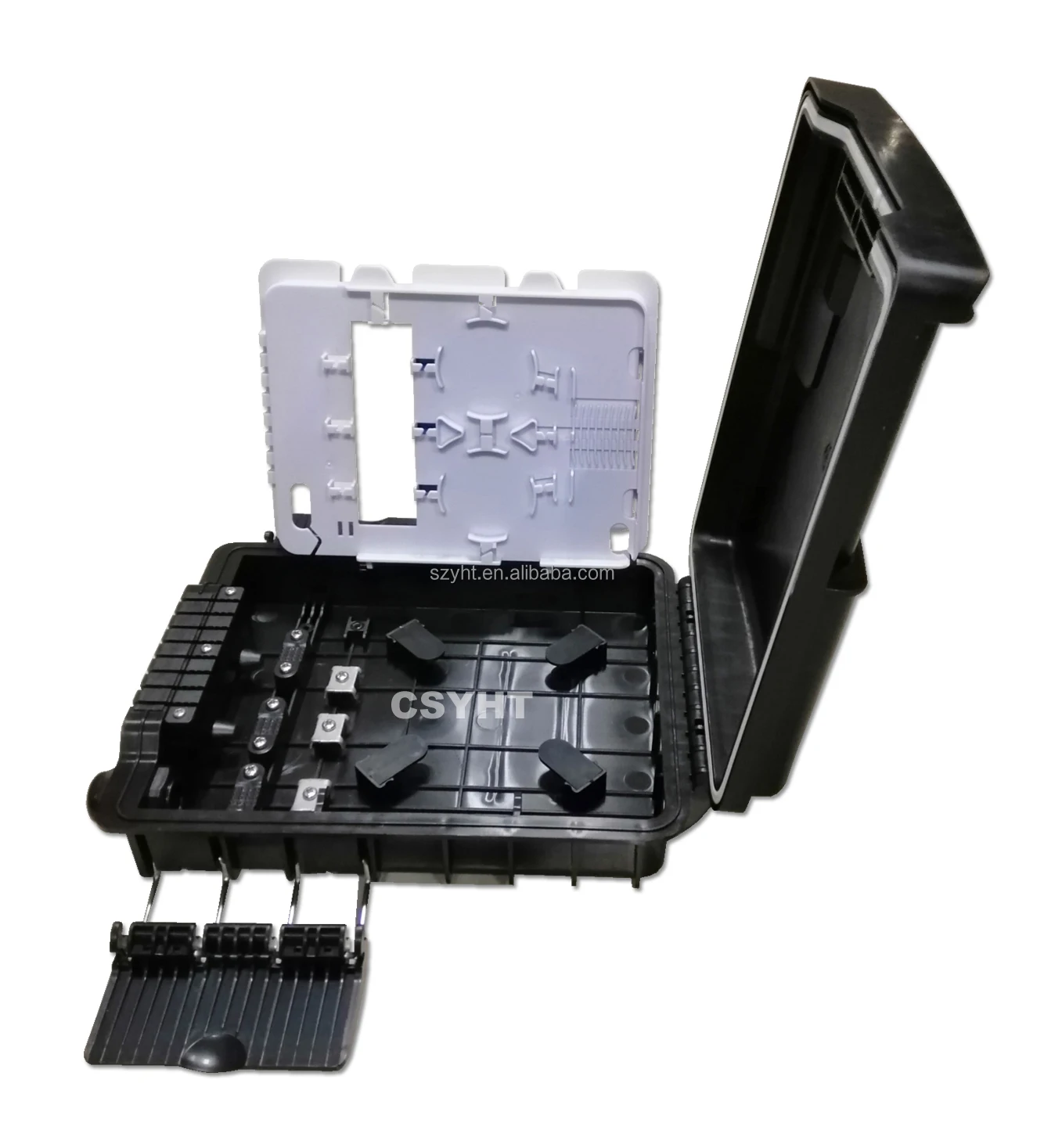

CTO cajas 1x8 NAP ftth terminal box ODB 8 core Outdoor Optical Distribution Box IP65 Black Fiber Nap Box Fiber Home OTB-P036 is a plastic fiber optic terminal box that suitable for optical fiber splicing, distribution and protection. It can load 1pc fiber adapter plate of 9 SC simplex adapter port or 1pc plastic splitter cassette 1x8. It support 8 drop cable output and cable entry without cutting.
Product Feartures
Small size, reasonable structure, convenient for operation.
Material: PP impact resistant plastic.
Can load 1pc adapter plate of max. 9pcs SC simplex adapter or 1pc plastic splitter cassette 1x8.
Can load 1pc PLC 1:8 steel tube type splitter.
Wall mounted and pole mounted application available
Waterproof, outdoor using, IP65

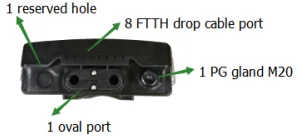

Cable ports: 1pc cable port M20 suitable for Φ6~11mm cable entry &1pc reserved hole suitable for M20 cable gland & 1pc oval port support Φ6~12mm cable entry without cutting & 8 pcs 2*3mm FTTH drop cable output ports
Product Information
Model | Dimension(mm) | Material | Adapter port | Splicing capacity | Cable port | Application |
OTB-P036 | 195.5x240x77.5 | PP | 9 SC simplex | 8 fibers | 1 PG gland + 1 oval + 8 drop cable port + 1 reserved hole | Outdoor wall mounted or pole mounted |
Product Pictures
Related Products
Key Attributes
Industry-specific attributesOther attributesPackaging and Delivery
Type
Fiber optic terminal box
Model Number
OTB-P036
Place of Origin
Guangdong, China
Brand Name
YHT
Use
FTTH FTTX
Warranty Time
1 YEARS
Product name
1x8 NAP ftth terminal box ODB 8 core Outdoor Optical Distribution Box
Cable Port
1 PG gland + 1 oval + 8 drop cable port + 1 reserved hole
Max. Capacity
8 FO
Dimension
195.5x240x77.5 mm
IP Rated
65
Splitter Cassette
1 pc with 8 SC simplex ports
Adapter Port
9 SC simplex ports
Material
PP
Installation Way
Wall/Pole Mounting Application
Application
FTTH, Telecom, CATV, Data Communications & Local Area Networks
Packaging Details
CTO cajas 1x8 NAP ftth terminal box ODB 8 core Outdoor Optical Distribution Box IP65 Black Fiber Nap Box Fiber Home
Port
Shenzhen
Package Type:
CTO cajas 1x8 NAP ftth terminal box ODB 8 core Outdoor Optical Distribution Box IP65 Black Fiber Nap Box Fiber Home
Supply Ability
2000 Piece/Pieces per Day CTO cajas 1x8 NAP ftth terminal box ODB 8 core Outdoor Optical D
Samples
Maximum order quantity: 1 piece
Sample price:
$10.00/piece
Customization
Min. order: 200
Min. order: 1000
Min. order: 200
For more customization details, message or email supplier!
