Paper Machinery, Automatic Paper Cone Production Line/
US$ 55000 - 85000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Certification:
CE
Dimension(L*W*H):
14000mm*6000mm*3800mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days
Related Products
-
Stable Performance/ High Configuration/ Fireworks Paper Cone MachineUS$ 55000 - 85000MOQ: 1 Piece -
Factory Manufacture/ High Cost Performance/ After Finishing Machine/ for Paper ConeUS$ 55000 - 85000MOQ: 1 Piece
-
Single Side Gluing Easy Operation Fireworks Paper Bobbin MachineUS$ 55000 - 85000MOQ: 1 Piece
-
One Operator/ Save Paper/ After Finishing Machine/ for Paper ConeUS$ 55000 - 85000MOQ: 1 Piece
-
High-speed Paper Corner Kraft Paper Protection Production LineUS$ 24000 - 38000MOQ: 1 Piece
Place of Origin
China
Certification
CE
Dimension(L*W*H)
14000mm*6000mm*3800mm
Voltage
380 V
Product Type
Paper Core Machine
Condition
New
Power(W)
49.2 Kw
Processing Type
Cutting Machine
Product details

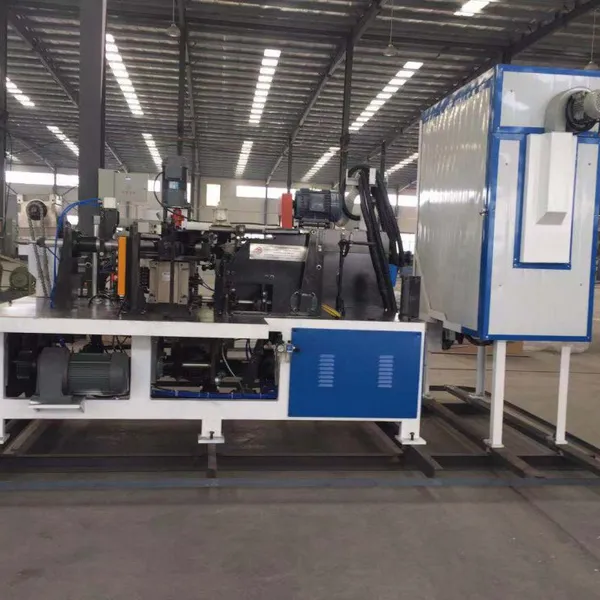

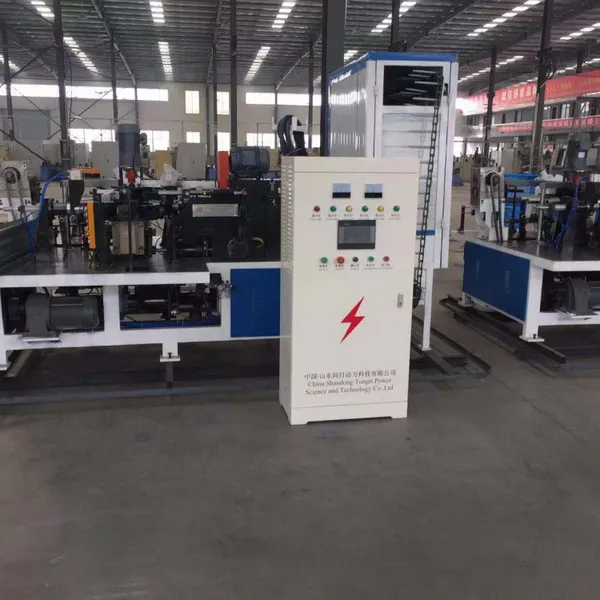

TRZ-2022 automatic conical paper tube production line need no manual operation from raw paper to paper tube product. The whole production process is controlled by PLC programming, main engine transmission uses cam timing mechanism. All bearings of the machine adopt Japanese NSK bearings. Each position takes double speed variable frequency control technology. Also the none mechanical abrasion photoelectric control, approaching control and pneumatic delay control, which realize the mechanical and electrical integration. Suitable for the production of conical tube with various specification.
Process:
Rolling---internal and external printing---edge grinding---cutting---Reeling---Drying---Finishing---cutting V-shaped opening---opening processing---pressing---grinding---galling---finishing
Main Parameter:
Power:49.2KW
Speed: 50/min
Size: 14000mm*6000mm*3800mm
Operator: 1
1. reeling machine
TRZ-2022 automatic conical paper tube reel is suitable for conical tubes of various specification. After hanging the paper roll, internal and external printing, edge grinding, cutting, reeling, head cutting, the semi-finished paper tube will be sent to the dryer. It takes double speed variable frequency control technology. The reeling speed will be adjusted automatically. The whole process is eased by connecting with the dryer.
Main parameter:
For conical tubes with various taper and calibre.
Speed: 25-50/min
Power: 13.27kw
Size: 6080mm*2240mm*1500mm
TRZ-2022 automatic conical paper tube production line need no manual operation from raw paper to paper tube product. The whole production process is controlled by PLC programming, main engine transmission uses cam timing mechanism. All bearings of the machine adopt Japanese NSK bearings. Each position takes double speed variable frequency control technology. Also the none mechanical abrasion photoelectric control, approaching control and pneumatic delay control, which realize the mechanical and electrical integration. Suitable for the production of conical tube with various specification.
Process:
Rolling---internal and external printing---edge grinding---cutting---Reeling---Drying---Finishing---cutting V-shaped opening---opening processing---pressing---grinding---galling---finishing
Main Parameter:
Power:49.2KW
Speed: 50/min
Size: 14000mm*6000mm*3800mm
Operator: 1
1. reeling machine
TRZ-2022 automatic conical paper tube reel is suitable for conical tubes of various specification. After hanging the paper roll, internal and external printing, edge grinding, cutting, reeling, head cutting, the semi-finished paper tube will be sent to the dryer. It takes double speed variable frequency control technology. The reeling speed will be adjusted automatically. The whole process is eased by connecting with the dryer.
Main parameter:
For conical tubes with various taper and calibre.
Speed: 25-50/min
Power: 13.27kw
Size: 6080mm*2240mm*1500mm
2. after finishing machine
TRZ-2022 after finishing part is designed to turn the semi-finished product into conical paper tube after V cutting, grinding, pressing, reversing and galling.
The speed can be adjusted freely with over-load protector and automatic stopping equipment when the improper operation happens to guarantee the safety and stability and lower the waste rate. The after finishing machine can also be used individually.
Main parameter:
For conical tubes with various taper
Speed: 35-50/min
Air pressure: 0.3-0.4mpa
Size: 2600*1600*1580mm
3. drying machine
The TRZ-2022 auto-temperature control dryer uses chain-type circulation drying. After setting up the temperature, the heat can be controlled, maintained and adjusted freely, featured Low consumption and high outcome. Paper tube can be feed and collected automatically after connecting with other equipment.
Main Parameter:
Speed: 25-50/min
Power: 10.1-24.5kw
Size: 5620mm*1700mm*3800mm
TRZ-2022 after finishing part is designed to turn the semi-finished product into conical paper tube after V cutting, grinding, pressing, reversing and galling.
The speed can be adjusted freely with over-load protector and automatic stopping equipment when the improper operation happens to guarantee the safety and stability and lower the waste rate. The after finishing machine can also be used individually.
Main parameter:
For conical tubes with various taper
Speed: 35-50/min
Air pressure: 0.3-0.4mpa
Size: 2600*1600*1580mm
3. drying machine
The TRZ-2022 auto-temperature control dryer uses chain-type circulation drying. After setting up the temperature, the heat can be controlled, maintained and adjusted freely, featured Low consumption and high outcome. Paper tube can be feed and collected automatically after connecting with other equipment.
Main Parameter:
Speed: 25-50/min
Power: 10.1-24.5kw
Size: 5620mm*1700mm*3800mm
