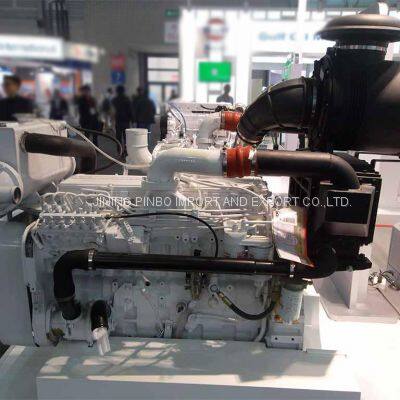

6BT5.9-GM100 100kw marine auxilliary motor

Cummins 6BT5.9-GM100 – Original from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA.

Available for Cummins 6BT5.9-GM100 marine generator with CCS/IMO certificate. Complete Cummins marine auxiliary engine with sea water pump & heat exchanger. If used on vessel board, optional for radiator and fan cooling system.

Available for Marine power pack, Marine Gearbox, Propeller, Shaft, etc..

Model: 6BT5.9-GM100

Type: 6 Cylinders in Line

Displacement: 5.9 L

Bore * Stroke: 102 * 120

Net Weight (with flywheel & alternator): 426 Kg

Overall Dimension: 867mm*544mm*988mm

Rated Power/Speed: 100 kW/ 1800 rpm

Standby Power: 110 kW

Low Idle Speed: 1000±50 rpm

Fuel Consumption (Running Speed): ≤ 240 g/kW.hr

Aspiration: Turbocharged

Fuel System: BYC A Pump/GAC Governor

Compression Ratio: 17.3:1

Electrical System (Starter Motor/Alternator):12V/24V

Lowest Starting Temp Without auxiliary system: -12℃

Engine Cooling Fluid Volume: 9.9 L

Ignition Order: 1-5-3-6-2-4

Cooling Method: Water Cooled

Packing Details: Dimension: 1100* 800* 1200 mm, G.W: 450 KG
