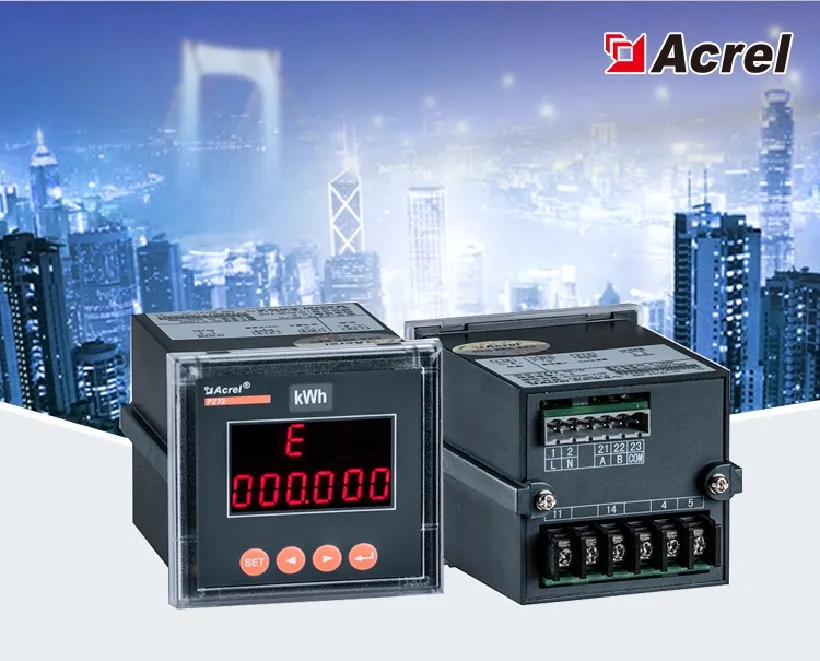

Acrel PZ Series PZ72-DE DC Power Analyzer LED Display Panel Type DC Multi-function Energy Meter Power Rs485
US$ 82.6 - 118
/ Piece
1 Piece(Min. Order)
- T/T L/C Credit Card PayPal
You May Like
-
Acrel PZ Series PZ72-DE DC Power Analyzer LED Display 10A DC 0/4~20mA DC 75mV RS485 Power Analyzer Watt Meter
-
0~20mA or 4~20mA Input DC Digital Power Energy Monitor Meter Wattmeter For PV Solar Panel PZ72-DE
-
Multifunction DC Power Meter LED Digital DC Volt AMP Kwh Panel Meter PZ72-DE
-
RS485 MODBUS-RTU DJSF1352-RN DC Power Meter Dual-circuits Monitoring DIN Rail Energy Meter
-
RS485 MODBUS-RTU EV Charging Base Station 0~1000V DC 2 Circuits Measuring LCD Display Energy Meter 0~10V/ 0~20mA Input
-
Acrel DJSF1352-Rn DO/DI Function 2 Channels DC Power Consumption Meter Rs485 Modbus-RTU for Twin Ev Charger&Battery Monitoring
Product Details
| Brand Name | Acrel | Place of Origin | China | |
| Model Number | 0-9999A | Phase | Three Phase | |
| Output Voltage | 0-1000V | Operating Temperature | -10-+45℃ | |
| Dimensions | 75*75mm | Display Type | Digital Only | |
| Accuracy Class | 0.5 | Measuring Energy Range | 0-9999A |
Product Description

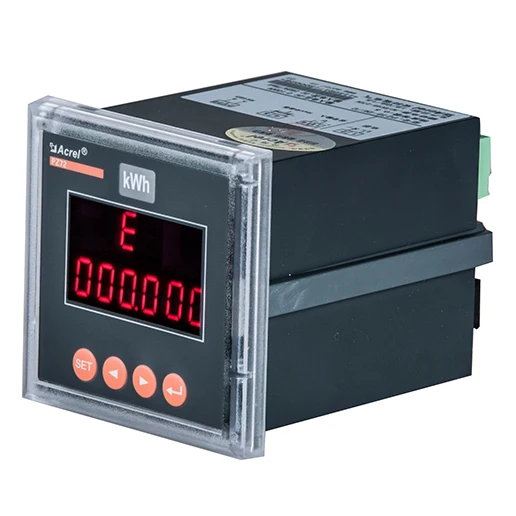

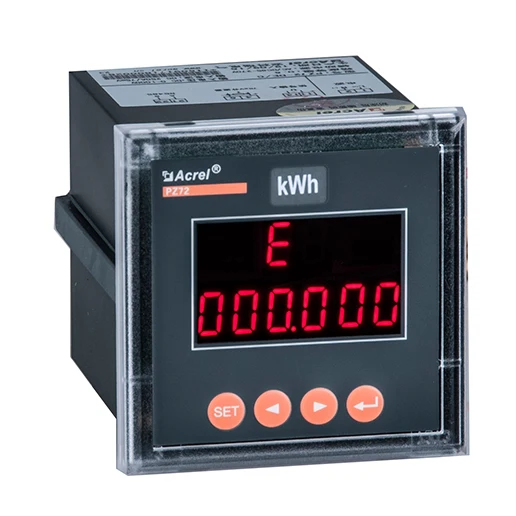

PZ72-DE
| Intelligent PZ series DC Power Analyzer | ||
| * DC Current: external shunt or hall element(range programmable) * DC Voltage: DC0-1000V * LED display | ||
INFORMATION
| Characteristic |
| Display : LED display U,I,+/-P,+/-kWh measure |
| Rated U and I : Voltage input:DC0-1000V;Current input:75mV,0-20mA,0-5V |
| Option function/C: RS485(Modbus-RTU) Communication |
| Option function/K: Switching 2DI/2DO |

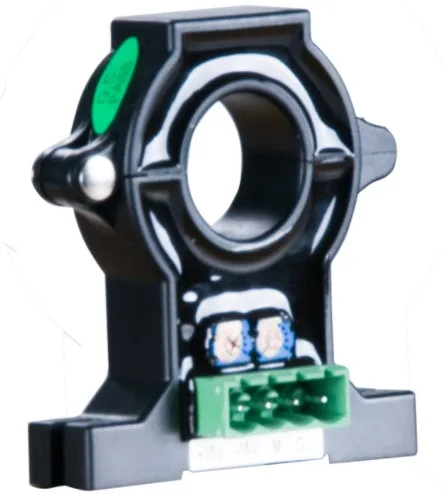

| Option function/V: ±12V to access hall sensor |
LCD diaplay
Function

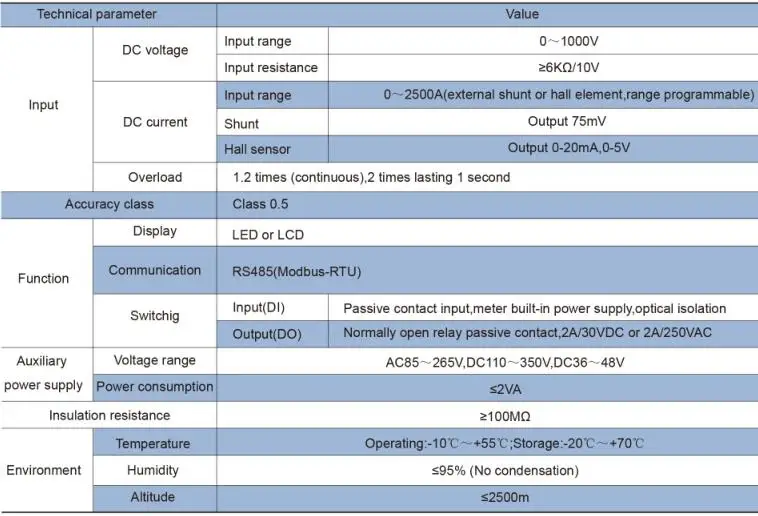

Accuracy U,I,kWh: Class 0.5 Auxiliary power supply AC 85V-265V,DC110-350V,DC36-48V DC current Shunt: output 75mV Hall sensor: output 0-20mA,0-5V Consumption
| |
|
Installation Pannel mounted Dimension(L*W*H) Pannel size(L×W):75*75mm Cutout(L×W):67*67mm Housing(L×W×H):67*67*98mm Relay DC 30V/2A, AC 250V/2A |

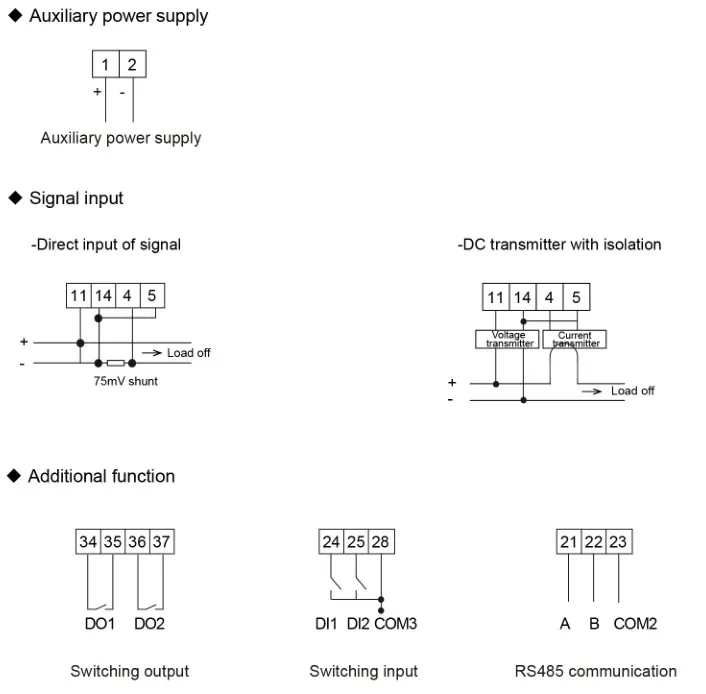

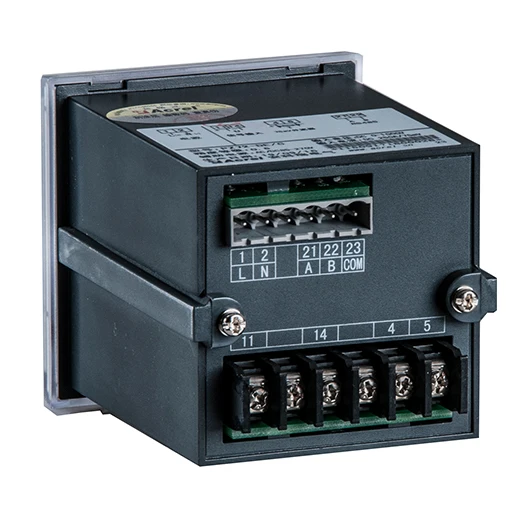

Wiring
