Parker SSD 890 AC Variable Frequency Drives (VFD) 890SD-433375H2-000-1A000

Name: Parker SSD 890 AC Variable Frequency Drives (VFD) 890SD-433375H2-000-1A000
Brand: Parker ac Frequency changer
Availability: InStock

FOB Price

US$ 12000 - 12500 / Piece

1 Piece(Min. Order)

Port shanghai，qingdao，yiwu，shenzhen
Payment TermsT/T Credit Card
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Parker ac Frequency changer		Place of Origin	China
Model Number	380V-500V		Motor Type	AC Motor

Product Description

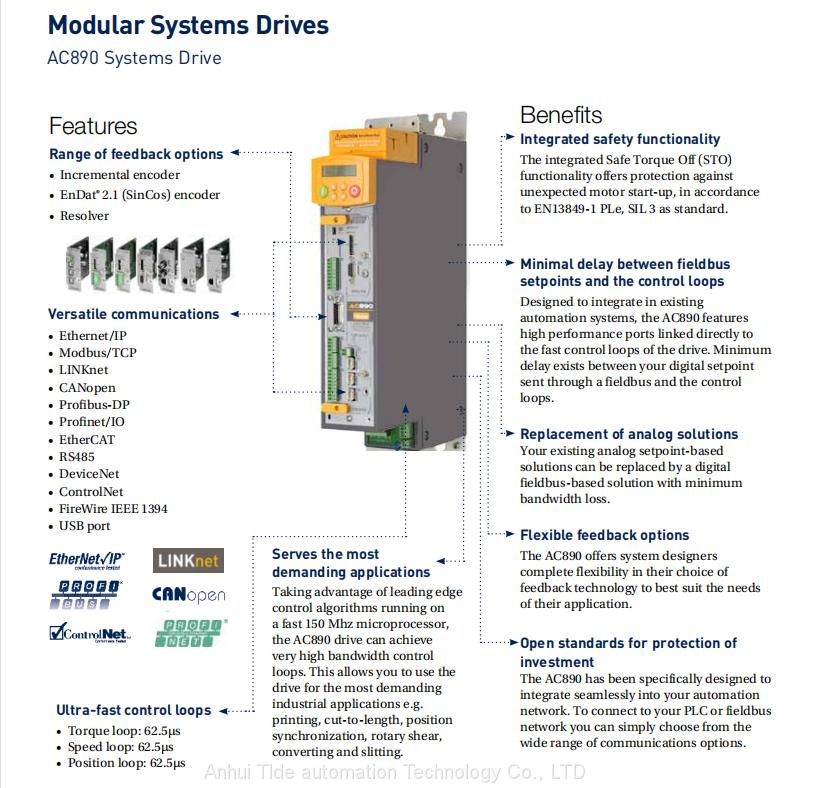

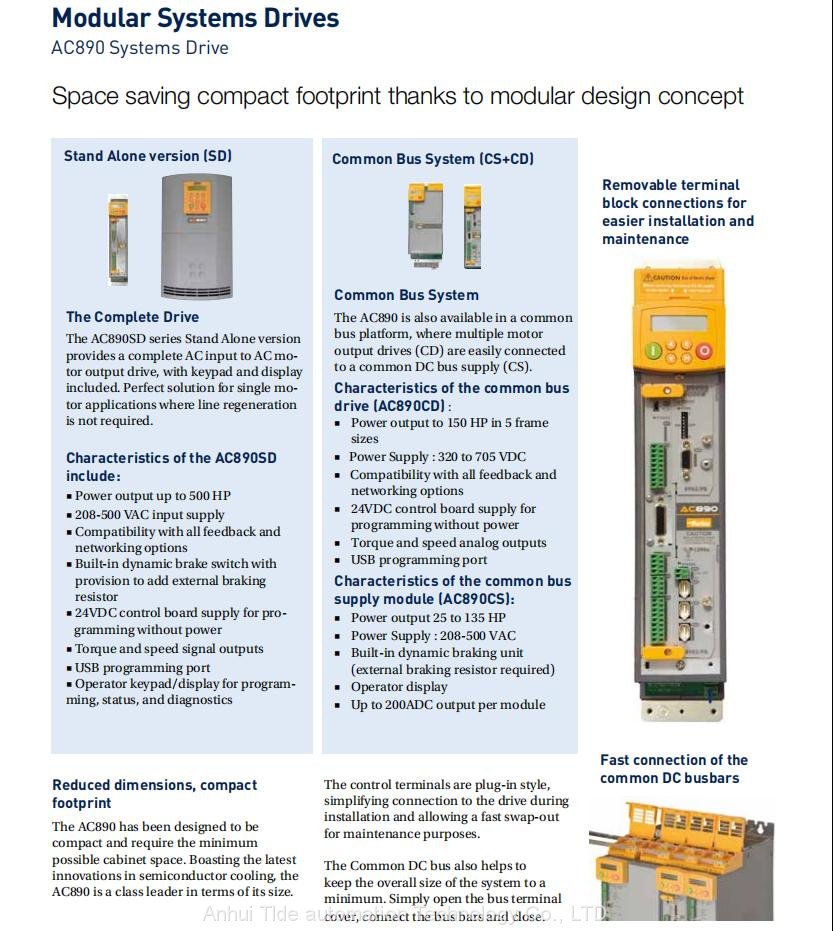

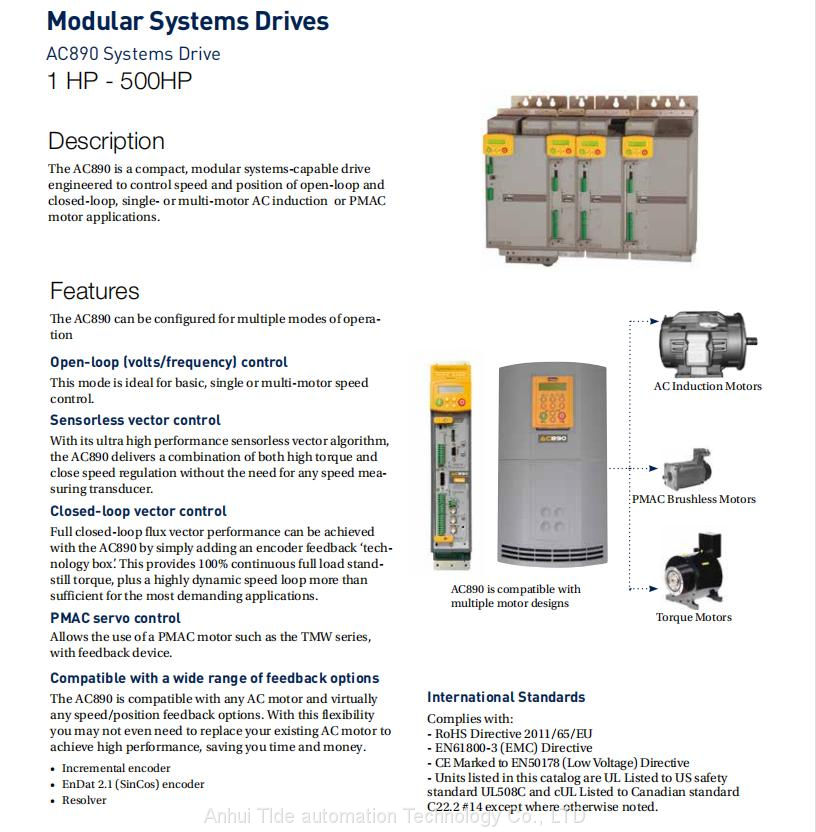

The AC890 is a compact, modular systems AC drive engineered to control speed and position of open-loop and closed-loop, single- or multi-motor AC induction or servo motor applications, up to 500HP.

Brand	Parker	Product Type	AC Drive
Drive Axis Type	Single Axis Technology Multi Axis Technology	Product Series	AC890
Input Voltage	3230VAC 3380-480VAC 3*500-690VAC 320-705VDC(Common Bus)	Output Power	0.75 - 1500 HP
Compatible Motor Type	Brushless Servo Frameless Servo Induction Spindle Torque PMAC	Compatible Feedback Device	Resolver Incremental Encoder
Modes of Control	V/Hz Sensorless Vector Closed Loop Vector Active Front End Speed Control of Permanent Magner Motor	Communication Interface	RS232 / RS485 CANopen ControlNet DeviceNet Profibus Profinet Ethernet TCP/IP
Operating Temperature	0-45 °C for Frames B-F / derateup to max 50 °C 0-40 °C for Frames G-K / derate up to max50°C, 32-113F for Frames B-F(derate up to 122F max)32-104F for Frames G-K (derateup to 122F max)°F	Operating Altitude	Up to 1000m ASL (derate >1000m)
Overload Rating	Heavy Duty Rating (ConstantTorgue) : 150% for 60sNormal Duty Rating (VariableTorque) : 110% for 60sServo Mode Rating (Frames BD) : 200% for 4sServo Mode Rating (Frames E J): 150% for 60s	Specifications Met	CE(EMC & LVD) UL Listed cUl listed
