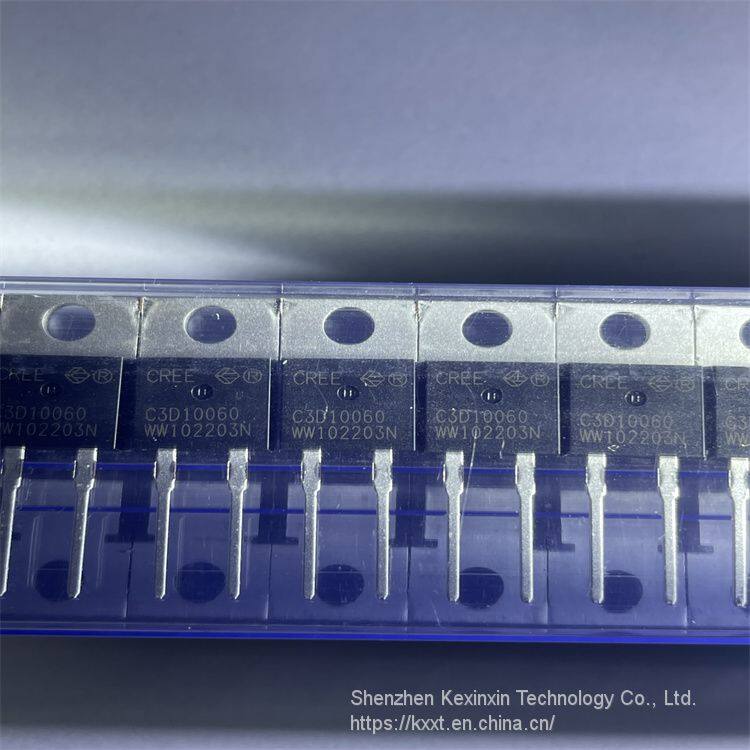

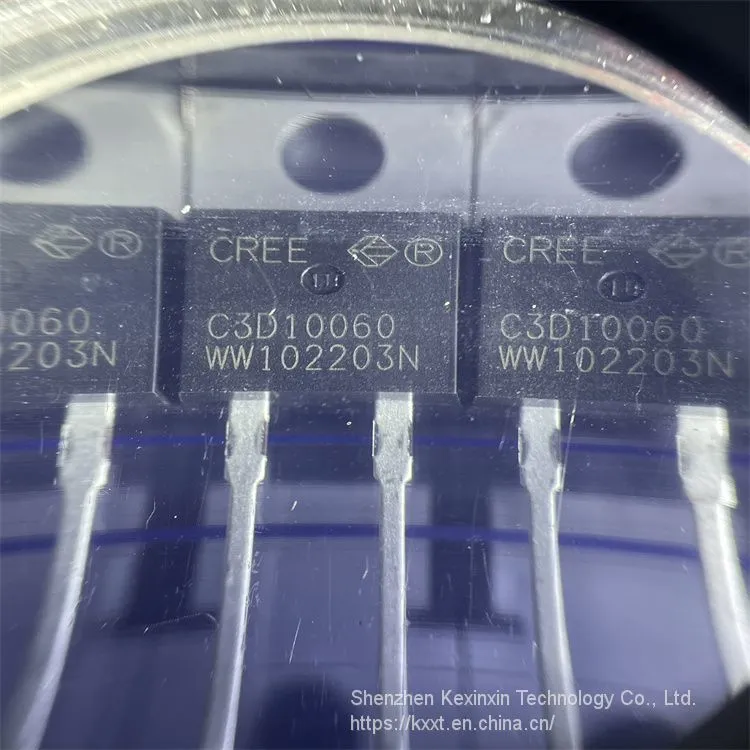

C3D10060A
SILICON CARBIDE Schottky diode
z-rec trademark
category: rectifier
Features:
600-Volt Schottky Rectifier
zero Reverse Recovery Current
Zero Forward Recovery Voltage
High-Frequency Operation
Temperature-Independent Switching Rehavior
Extremely Fast Switching
Positive Temperature Coefficient on V
Benefits:
replace bipolar with Unipolar rectifiers
essentially No Switching Losses
Higher Efficiency
Reduction of Heat Sink Requirements
Parallel dEVICES Without Thermal Runaway
Applications
Switch mode power supplies
power factor correction - typical PFC P
motor drives out: 1000w-2000w
typical pwer: 3hp-5hp
maximum ratings
vprm repetitive Peak Reverse Voltage 600v
vrsm surge Peak Reverse Voltage: 600v
vdc DC Blocking Voltage 600V
IF COTINUOUS Forward Current 10 12 A TC
ifrm Repetitive Peak Forward Surge Current: 47 44 A
Ifsm Non-repetitive Peak Forward Surge Current 90 71 A
IFSM NON- repetitive Peak Forward Surge Current 250 A
ptot power dissipation 136.3 w 59w
Tj, tstg operating Junction and Strorage Temperature -55to+150 ℃
to-220 mouting torque 1 nm ibf-in m3 screw; 8.8nm ibf-in 6-32 screw
Factory Pack Quantity: 50 /tube
