Product Description

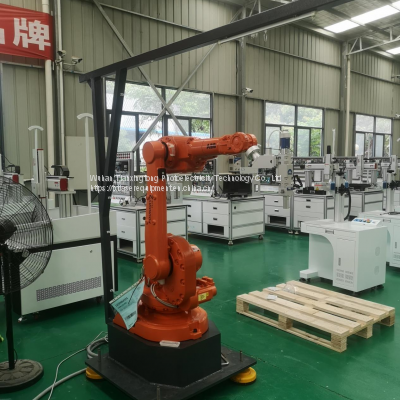

Automatic industrial robot arm laser welding system is a automation system which equip a robot arm to hold laser welding head to 3D welding.
Especially suitable for welding of various components of the laser precision. Production efficiency is increased 8 times comparing with other normal laser spot welding systems. The aircraft from the YAG solid-state laser, laser power, optical scanning system, flat-field focusing system, fiber-coupled transmission systems, computers and programmable controllers, cooling system, the laser pointer system, the operation and three-axis precision CNC cabinet table and so on.
Technical Parameters
Model | TXT-HJ-RB1000/1500/2000 |
Automation | Robot system |
Laser type | Fiber laser |
Laser wavelength | 1064nm |
Laser power | 1000W/1500W/2000W (Option) |
Pulse width | <20ms |
Pulse frequency | <100Hz |
Spot welding speed | <15 spots/s |
Size of light spot | 0.2-3.0mm |
Adjusting range of light spot | 0.1-0.3mm |
Maximum positioning speed | <7000mm/s |
Resolution | 0.001mm |
Repeating precision | 0.002mm |
Cooling | Water cooling |
Number of Axis | 6 axis |
Working radius of Arm | 1.4 meter |
Power Consumption | 12KW |
Application
Mainly used in mobile phones, mobile phone metal case, metal case capacitors, metal shielding within the computer network, razor blades, electronic connectors, hard drives, micro motors, sensors and other types of electronic products, high-efficiency laser spot welding or sealing.
