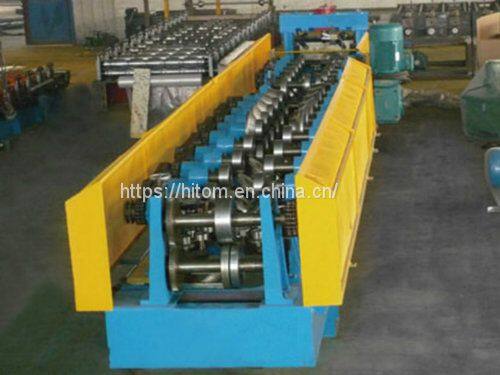

High Speed Automatic Change Type Change Size C/Z Purlin Roll Forming Machine

Welcome to Taicang Global Machinery Co., Ltd
/

At Global Machinery, we provide Tube Mill, Roll Forming Machine, Slitting & Cut to length Line and corresponding components, and meet your customized requirements. Contact us right now!

Summary
C-Z interchangeable machine adopts a special structure.The rollers for C & Z are changed very quickly without dismantle anything parts.One machine can produce all specifications of C & Z purlins and the widths and height can be ajustable automatically.

Main Specification

1. Thickness of color steel sheet: 0.8mm-4.0mm
2. Output speed:30-40m/min(not incluing punching and cutting)
3. Material: Q195~235 cold steel,Hot zinc coil
4. Main motor power:30Kw
5. Hydraulic oil pump motor:7.5Kw, the pressure of hydraulic:15-20Mpa
6. Feeding,adjusting power:4Kw

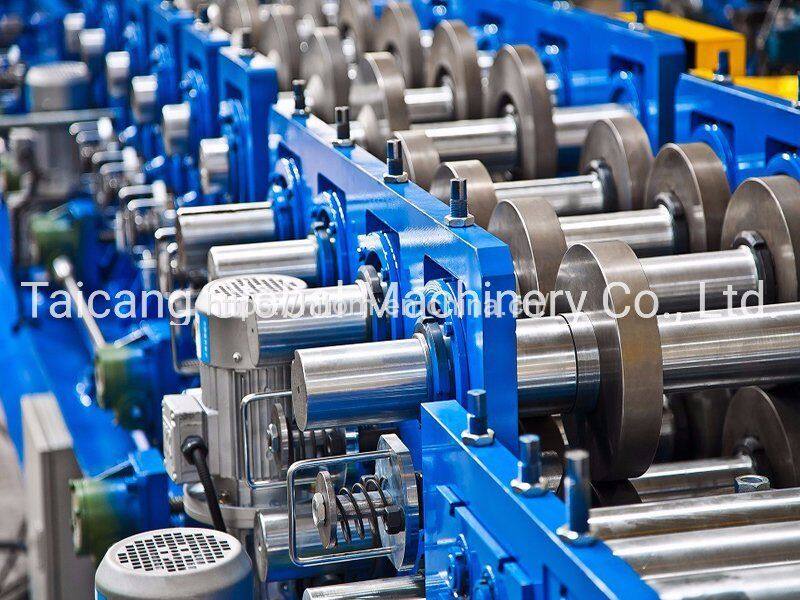

7. Main roller stations:16 steps
8. The speed from one step to another step:15 minutes
9. Purlin size:
    C purlin:100-300mm
    Z purlin:100-300mm (PLC automatic adjust)
10. Roller material:Gcr15, quench
11. Main roller material:45# advanced steel, quenching and tempering
12. Frequency inverter: Panasonic
13. Computer controlling system, PLC controlling length, encoder is OMRON brand
14. Transmission type:chain drive
15. Dimension (L*W*H):11000×1800×1800(mm)
16. The weight of equipment:about 14000kg
17. Panasonic inverter ,made in Japan
18. To change from one profile to another profile it just needs 15 min to finish
19. To change from C purlin to Z purlin it just needs 30 min to finish
20. To change the cutting blade it will needs 20min to finish.


Flow Chart

Certificate

Main Customers

FAQ
1) Q: Will you deliver the right goods as ordered?  How can I trust you?
   A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).  We have cooperated with many customers all over the world with high market reputation, no worries.
2) Q: How to choose the Tube Mill Line?
   A: You have to inform us following details:
- The pipe material
- Round pipe range
- Square pipe range
- Rectangle pipe range
- Wall thickness range
- The pipe usage
3) Q: How to choose the Roll Forming Machine?
   A: You have to inform us following details:
- Coil material
- Coil thickness
- Coil weight
- Cutting type
- Profiles drawings
- Other special attention
4) Q: How to choose the Slitting Line & Cut to Length line?
   A: You have to inform us following details:
- Coil material
- Coil thickness
- Coil width
- Coil weight
- Finished sizes
- Other special attention
55) Q: Where is the nearest  airport  to your company?
   A: Shanghai Putong or Hongqiao Airport.
6) Q: How about your service?
   A:  Before sales:
- Technical Support: TGMCO will provide detailed technical information such as technical &  commercial offer, machine photos, running video, layout, operation manual, and show you working machines in our factory.
- Apply Visa: TGMCO will provide officially invitation letter to apply Visa in china embassy as authority procedures and requirements.
After sales: TGMCO provides comprehensive After Sales Support and Service to meet our customer need.
- Drawings: Provide the foundation drawing, electric scheme and wiring diagram, hydraulic drawing, pneumatic & electric pipeline drawing and other drawings requested by customer.
- Installation and commissioning: TGMCO will send our technicians to customer's workshop for supervision of installation and commission
Training of Customers' technician/workers during commission
- Breakdown Support: We offer 1 year warranty service for main crucial components except consumables
Inform immediate technical assistance and advice to customer by phone or e-mail.
Skilled and experienced engineers are capable of dealing with any type of breakdowns.
Technical service work performed in Customer's site if required.
Urgently supply mechanical or electronic components.
Fast supply of spare parts and wearing parts to cover foreseeable requirements
