Optical Right Angle Glass Prisms Customizable

Optical Right Angle Glass Prisms Customizable photo-1

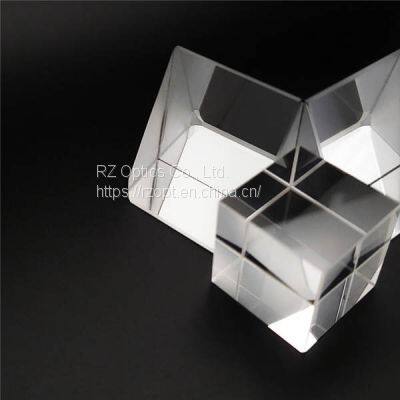

Optical Right Angle Glass Prisms Customizable photo-2
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2013
Port of Shipment:
Dalian
Payment & Shipping
Payment Methods:
Port of Shipment:
Jilin
Delivery Detail:
Delivery time depends on order quantity.

Optical Right Angle Glass Prisms Customizable

Product Description

Optical prisms are solid glass optics that are frosted and polished into geometrically and optically distinct shapes. The angle, position and number of optically flat crystals help define the type and function. They are widely used in refractometers and spectroscopic elements. As a result of this initial discovery, optical prisms have been used in systems to "refract" optical fibers, to "fold" the system into a smaller space, to change the orientation of the image (also known as spin or isotropy), and to merge or split parts of the reflective surface of the beam. These are very common in telescopes, magnifying glasses, measuring instruments and many other applications.

When using right angle prisms, they are usually coated with some optical film. Right-angle prisms inherently have a large contact area and typical angles of 45° and 90°, so they are easier to mount than ordinary mirrors and offer better stability and strength for mechanical applications. They are the best choice for optical components used in all types of devices and instruments.

Right-angle prism is an optical element that is widely used in many industries today. This durable and useful prism is used in applications such as beam displacements and polarization transformations. Its most distinguishing characteristic is its ability to provide efficient internal total reflection of incident light using critical angle characteristics.

Specification:

Material

BK7 glass / UV Fused silica

Dimension

3mm~200mm

Dimension tolerance

±0.1mm~±0.05mm

Surface quality

60/40, 40/20, 20/10

Surface flatness

λ/20 – λ/4

Angle tolerance

<30arc sec. ~5arc min

Bevel

<0.25mm×45°

Coating

As per customized request




Product Tags: Optical Windows , Optical Prisms
