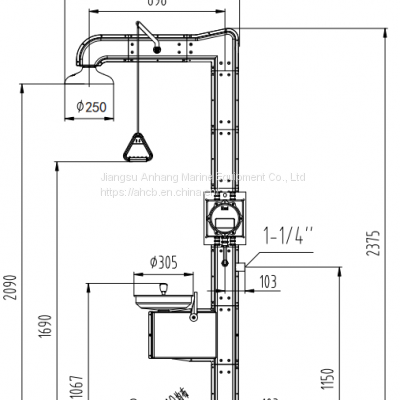

Explosion-Proof Electrically Heated Composite Eyewash

The combination of centralized heating and electric tracing heat insulation is used to provide heating and insulation against frost for eye wash equipment.

An optional flow regulator can be used to adjust the water flow according to the pressure of the water source. Effectively prevents secondary injuries caused by high water pressure

Technical Parameters

1.Manufacturing Standards：ANSI Z358.1-2014

2.Main material：SS304(Optional Q235 or SS316L)

3.Function：Eyewash and shower

4.Working temperature：-45℃～55℃

5.Applicable medium: Drinking water or clear water at room temperature and in line with sanitary standards

6.Nominal pressure：1.0MPa

7.Work pressure：0.2MPa～0.4MPa

8.Inlet size：Internal thread 1-1/4" (can be customized according to user requirements)

9.Drain size：Internal thread 1-1/4" (can be customized according to user requirements)

10.Shower flow：≥75.7L/min

11.Eyewash flow：≥11.4L/min,(The eyewash nozzle is equipped with a buffer device to prevent secondary damage to the injured eye due to excessive water flow)

12. Power supply: AC 380V 50HZ

13. Total power: 15.3KW

14. Heating power: 15KW (can be customized according to user requirements), which can effectively increase the temperature of eyewash outlet water by 15°C.

15. Heat preservation power: 300W

16. Explosion-proof grade: customized according to user requirements

17. Protection level: IP65 (can be customized according to user requirements)

18. Configure power indicator lights, electric heating indicator light, heat preservation indicator light

19. Shower head: The standard configuration is ABS shower head (optional stainless steel shower head)

20. Eye wash nozzle: The standard configuration is SS304 eye wash nozzle

21. The product is equipped with a leakage protection system to prevent leakage from causing harm to users

22. The product can be equipped with DCS remote signal transmission system
