Contact, Non-contact Roundness, Form, Contour, Surface Finish and Cylindricity Measuring Instruments

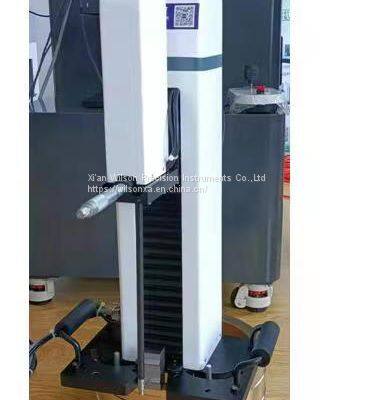

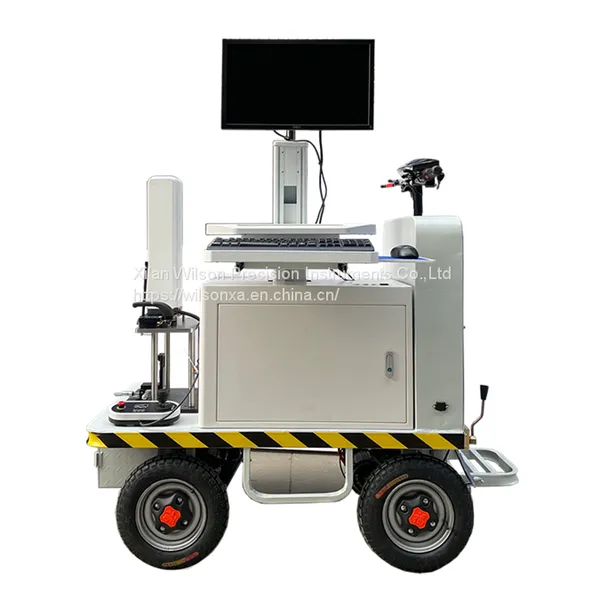

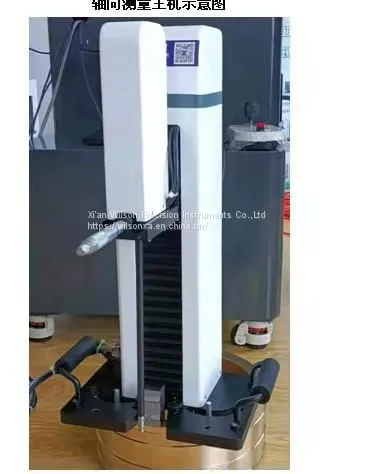

Portable Surface Finish & Contour Measuring Equipment
Wilson,one of the drafting members of the Industry Standard for Contour Measuring Machines(JB/T 11271-2012)
Wilson,one of the drafting members of the National Standard of Roundness Measuring Machines(GB/T 26098-2010)
Measurement Function:
1.Measurement of shape deviation and form deviation
Dimensions: including horizontal distance, vertical distance, linear distance, radius, diameter
Angle: including horizontal angle, vertical angle, pinch angle
Position tolerance: including parallelism, perpendicularity
Shape tolerance: including straightness, convexity, arc contour degree
Auxiliary generation: including auxiliary point, auxiliary line, auxiliary circle
2.Roughness measurement
Roughness analysis: Ra, Rq, Rz (Ry), Rz (DIN), R3z, Rz (jis), Rp, Rv, Rt, etc.
Waviness analysis: wt, wa, wp, wv, wq, etc.
Product Parameter:
Item |
Parameter |
|
Measuring range |
Z axis(Column) |
200mm |
Z1(Sensor) |
60mm |
|
|
Measuring accuracy |
Z axis measurement error |
±(2.5+0.02L)μm ※ |
Z1 axis measurement accuracy |
±(3+0.02H)μm ※ |
|
Roughness value stability |
≤±7% |
|
Roughness measurement repeatability |
±3% |
|
Linearity accuracy |
≤±0.05%F.S |
|
|
Curvature measurement error (R in mm) |
±（3+R/12）μm |
|
Curvature value repeatability |
±3μm |
|
Angle measurement error |
±2.5′ |
|
Angle value repeatability |
±1% |
|
Evaluation length |
λc×3、4、5、6、7 |
|
Cutoff wavelength |
0.025、0.08、0.25、0.8、2.5、8mm |
|
Climbing angle |
Upward 77°，downward 88° |
|
※ L: measuring length H: measuring height
