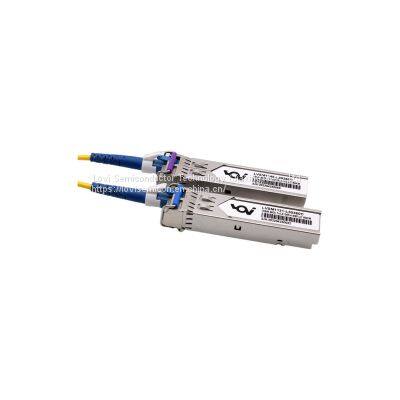

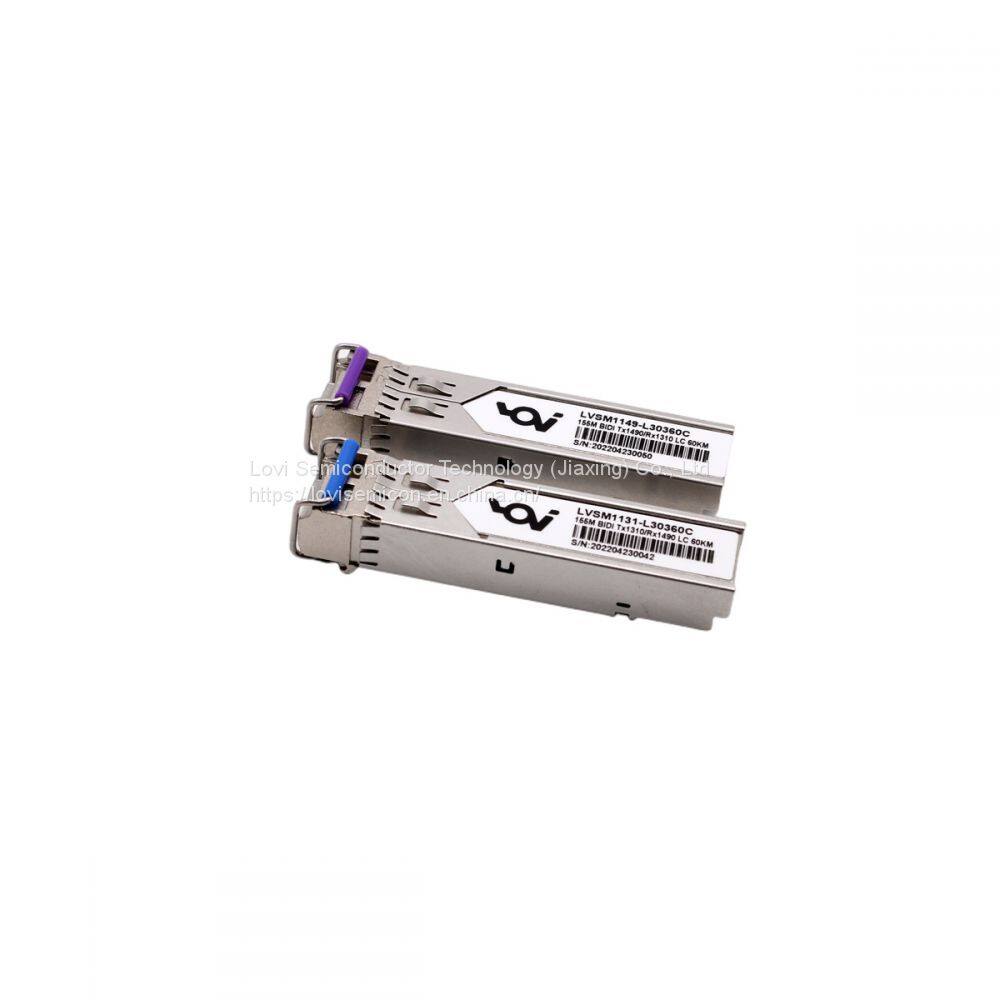

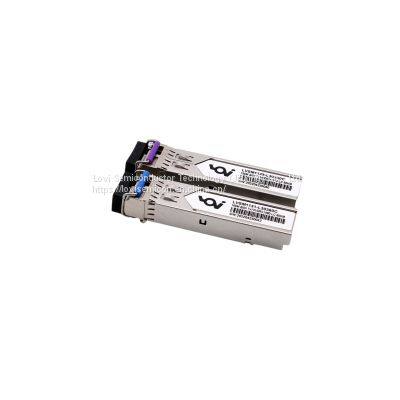

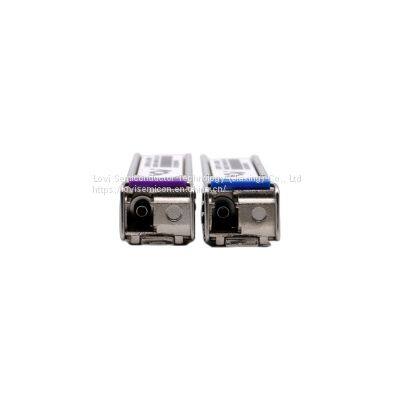

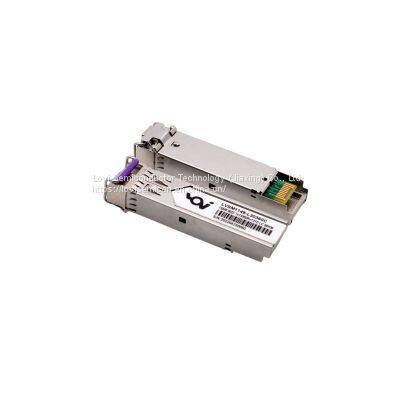

SFP 155Mbps Tx1310/Rx1490nm SMF 60km LC Optical Transceiver
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 155Mbps and 60km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter,a PIN photodioSFP 155Mbps Tx1310/Rx1490nm SMF 60km LC Optical Transceiverde integrated with a trans-impedance preamplifier (TIA) and MCU control unit.All modules satisfy class I safty requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Features:
Up to155Mbps data-rate
1310nm DFB laser and PIN photodetector for 20km transmission
Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Digital Diagnostic Monitoring: Internal Calibration or External Calibration
Compatible with RoHS
Ø +3.3V single power supply
Operating case temperature:
Industrial: -40 to +85°C
Applications:
SDH STM-1, S-1.1,L-1.1, L-1.2
ONET OC-3 IR1,LR1,LR2
Other optical links
Table 1 - Absolute Maximum Ratings
Table 2 - Recommended Operating Conditions
