A Lithium Fluorocarbon Soft Pack Battery Field Operation

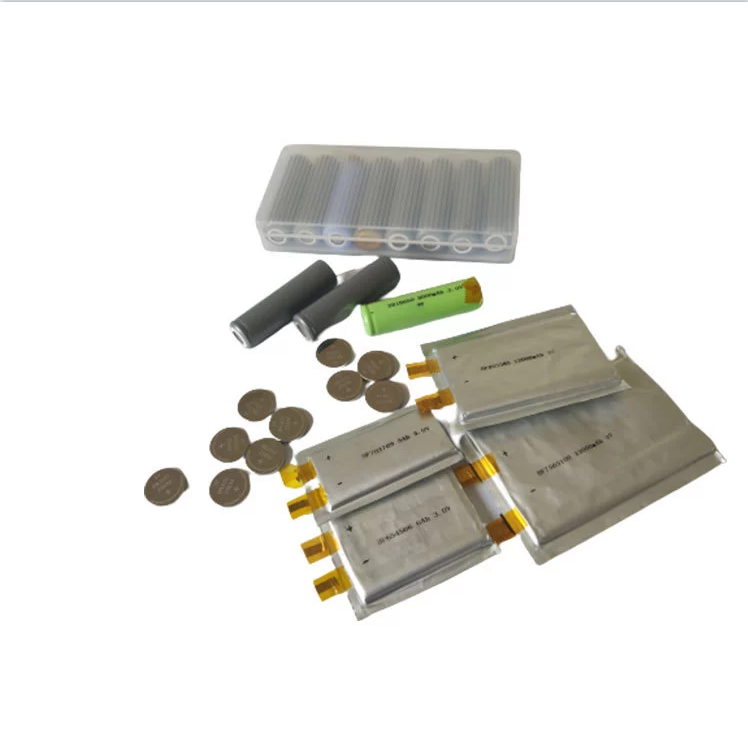

High Performance Lithium Carbon Fluorine Soft Pack BatteryBF855585 Customizable Battery

Product Introduction

The lithium fluorocarbon soft pack battery independently developed and has the advantages of good safety performance, light weight, large capacity, low internal resistance and flexible design (cell model can be customized). Lithium Fluorocarbon soft pack battery is suitable for power supply requirements: strong high and low temperature performance, high energy density (2400Wh/KG) and high discharge platform application fields, such as aerospace, unmanned vehicles, unmanned equipment, field operations , Handheld radios, various electronic product backup power supplies, and other electronic power products. Compared with the cylindrical battery, it has larger capacity and lighter weight, and its working temperature can also reach -40 ~ +125℃. It is plastic, suitable for customers with special needs, and can be customized.

Product parameter

Applications:Portable Power,unmanned plane，survival and emergency equipment,alarming device,remote control.etc

Product advantages

1. Excellent application performance

Carbon fluoride batteries have a large specific capacity and high energy density, making them easy to miniaturize and lighten.

2. Super high-temperature resistance

The fluorocarbon material itself has good thermal stability. It will not decompose at high temperatures (≤600℃) and will not crystallize at low temperatures. Therefore, the capacity retention rate of lithium fluorocarbon battery at high temperature is good, and the improved battery can reach the -40 ～+125℃ working range.

3. Excellent discharge performance

The working voltage can reach more than 3V. At the same time, because the fluorocarbon is converted into lithium fluoride and conductive carbon when the battery is working, the utilization rate is almost 100%, the discharge platform is stable, and the working voltage can be stabilized until the end of the discharge.

4. Good storage performance

The self-discharge rate of carbon fluoride batteries is very low, less than 1%, whether in use or under normal storage, and the storage life can reach more than 10 years.

5. Superior safety performance

The battery has excellent chemical stability and physical stability. Experiments have proved that it is still very safe in the case of short-circuit, extrusion, collision, over-discharge, high temperature, or other misuses.

6. Green and environmental protection

No heavy metals are involved in the production.

Transport

1.During transportation, the battery should be protected from sunlight, fire, water immersion, and corrosive substances.

2.Shock and vibration during transportation and loading and unloading should be limited to a minimum.

3.The stacking height of paper packaging boxes shall not exceed 1.5 meters.

4.Batteries should be kept away from the engine during long-distance transportation if they are transported by ship; in summer, they should not be left in an unventilated environment for a long time.

Precautions

1.Lithium Fluorocarbon battery is not rechargeable. If the battery is charged, there may be a danger of leakage, fire, or explosion.

2.Do not heat the battery or throw it into the fire.

3.Do not over-discharge the battery, which may cause battery leakage and damage electrical appliances.

4.Do not use metal conductors to short-circuit the positive and negative poles of the battery.

5.Be careful not to install the positive and negative poles of the battery reversely when installing the device.

6.Do not disassemble the battery.

7.Do not solder the battery directly with an electric soldering iron.

8.Do not use batteries that are severely scratched or deformed.

9.Do not use batteries that are severely scratched or deformed.

10.Do not drop the battery on the ground (or wall).

11.New and old batteries, batteries of different models or brands, cannot be used at the same time. If you replace the battery, please make sure to use the same

One brand and all replacements.

12.When connecting batteries in series and (or) in parallel, circuit protection measures must be taken for each battery to ensure that each battery is not charged or forced to discharge.

Storage

1.The battery should be stored in an environment of 10℃～25℃ and 45%～75% humidity.

2.When storing the battery, keep it away from heat sources, nor place it in direct sunlight. Keep it clean, cool, dry, and ventilated.

Affected by the climate.

3.The stacking height of batteries depends on the packaging strength. Generally, the stacking height of paper packaging boxes should not exceed 1.5 meters, and wooden boxes should not be stacked.

More than 3 meters.

4.Batteries are stored and displayed in the original packaging. After removing the packaging, the batteries are stacked in disorder, which may cause short circuits and damage to the batteries.

statement

If you have any questions or disagreements about this technical specification, please contact Shandong Zhongshan Optoelectronic Materials Co., Ltd. －Shandong Zhongshan Optoelectronic Materials Co., Ltd. reserves the right to change the specifications. －Any other terms not included in this product specification shall be determined by mutual agreement.
