6m Mobile Telecommunication Tower Telescopic Antenna Mast

FOB Price

USD $1500 - $1900 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port shanghai
Payment TermsT/T
Delivery Detail25 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SUESTER		Place of Origin	China
Model Number	PTS

Product Description

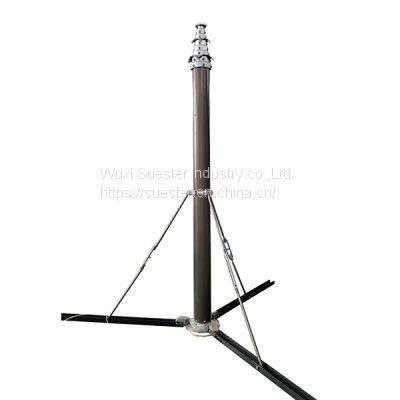

6m mast security pneumatic light telescoping mast with tripod

What is Pneumatic Telescopic Mast ?

Pneumatic telescopic masts are a type of elevation solution using compressed air to raise the central column to its extended height. The masts can either be locking, which each section locks into place once it reaches its maximum extension - designed for safety and long term use( do not lift down the mast), or non-locking where each section sits on cushion of air.

Available Extended height: 3m to 20m can be customized. Head load capacity: 5kg to 120kg.

Lifting is by air compressor. The mobile telescopic mast raised or down can be controlled by wireless remote control through the RS485 prorocol.

The material is high strength aluminum alloy. The Tube surface treatment is Hard anodizing which is Which again corrosion, rust and acid rain. It can last longer time even the bad environment.

Model	Sections	Extension Hight	Collection Hight	Install Height	Top Hole	Max diameter	loading	Top Flange size A3 mm	Bottom flange size A3 mm	Bolt size
Model	Sections	L1 mm	L2 mm	L3 mm	A1 mm	A2 mm	Kg	Top Flange size A3 mm	Bottom flange size A3 mm	Bolt size
PT35-1	3	3500	1635	1520	Φ85	Φ133	120	Φ200	Φ230	4-Φ13
PT35-2	3	3500	2010	1913	Φ34	Φ68	50	Φ105	Φ130	4-Φ11
PT45-1	4	4500	1670	1520	Φ65	Φ133	100	Φ200	Φ230	4-Φ13
PT45-2	4	4500	2170	2020	Φ65	Φ133	100	Φ200	Φ230	4-Φ13
PT55-1	4	5500	1785	1630	Φ65	Φ133	100	Φ200	Φ230	4-Φ13
PT55-2	4	5500	2225	2070	Φ65	Φ133	100	Φ200	Φ230	4-Φ13
PT65-1	5	6500	1770	1575	Φ45	Φ133	80	Φ200	Φ230	4-Φ13
PT65-2	5		1950	1750	Φ45	Φ133	80	Φ200	Φ230	4-Φ13
PT65-3	4		2235	2080	Φ65	Φ133	100	Φ200	Φ230	4-Φ13
PT75-1	6	7500	1790	1540	Φ45	Φ160	80	Φ200	Φ230	4-Φ13
PT75-2	6		1845	1595	Φ45	Φ160	80	Φ200	Φ230	4-Φ13
PT75-3	5		1990	1780	Φ65	Φ160	100	Φ200	Φ230	4-Φ13
PT75-4	5		2120	1915	Φ65	Φ160	100	Φ200	Φ230	4-Φ13
PT85-1	6	8500	2015	1770	Φ45	Φ160	80	Φ200	Φ230	4-Φ13
PT85-2	6		2315	2070	Φ45	Φ160	80	Φ200	Φ230	4-Φ13
PT85-3	5		2300	2090	Φ65	Φ160	100	Φ200	Φ230	4-Φ13
PT100-1	6	10000	2290	2040	Φ45	Φ160	80	Φ200	Φ230	4-Φ13
PT100-2	6		2300	2040	Φ65	Φ190	100	185x185	230x230	4-Φ13
PT100-3	7		2400	2100	Φ45	Φ190	80	185x185	230x230	4-Φ13
PT100-4	7		2400	2090	Φ65	Φ210	100	195x195	245x245	4-Φ17
PT120-1	7	12000	2395	2095	Φ45	Φ190	80	185x185	230x230	4-Φ13
PT120-2	7		2400	2050	Φ65	Φ210	100	195x195	245x245	4-Φ17
PT120-3	7		2500	2050	Φ45	Φ190	8	185x185	230x230	4-Φ13
PT120-4	7		2500	2190	Φ65	Φ210		195x195	245x245	4-Φ17
PT150-1	7	15000	2975	2615	Φ65	Φ210		195x195	245x245	4-Φ17
PT150-2	6	15000	3200	2900	Φ85	Φ210		195x195	245x245	4-Φ17

Applications

1. Applied to all kinds of vehicle, fire trucks for telescommunication or mobile light tower.

2. On the top of the telescopic mast Mounted the HD PTZ camera for mobile surveillance.

3. Mounted the antenna to be telescopic antenna mast for telescommunication.

4.Mounted led lights to be mobile telescopic light tower use on fire trucks for emergency rescue system.

5. Use on a small trailer for the construction site or kinds of events surveillance.
