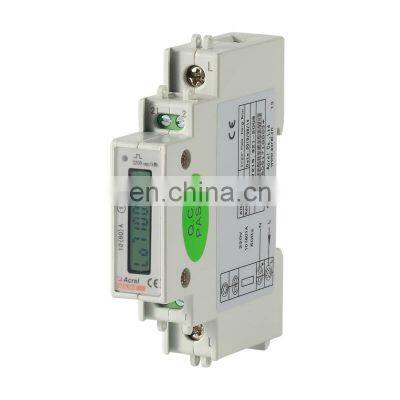

Low Voltage Electrical 35mm DIN Rail Direct Connect Energy Electric Meter Monitor LCD Display
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel Direct Connect Max 60A Din Rail One Phase Smart Energy Meter Rs485NegotiableMOQ: 1 -
ADL10-E Low Voltage Electrical Direct Connect Single Phase Smart Electric Energy Meter LCD DisplayNegotiableMOQ: 1
-
Acrel 35mm DIN Rail Low Voltage Electrical China Direct Connect Energy Meters MeasuresNegotiableMOQ: 1
-
LCD Display Low Voltage Electrical Energy Smart Power Meters CE CertificatesNegotiableMOQ: 1
-
Acrel Din Rail Plastic Enclosure LCD Display Direct Connect Kwh Energy Consumption Meter Din RailNegotiableMOQ: 1

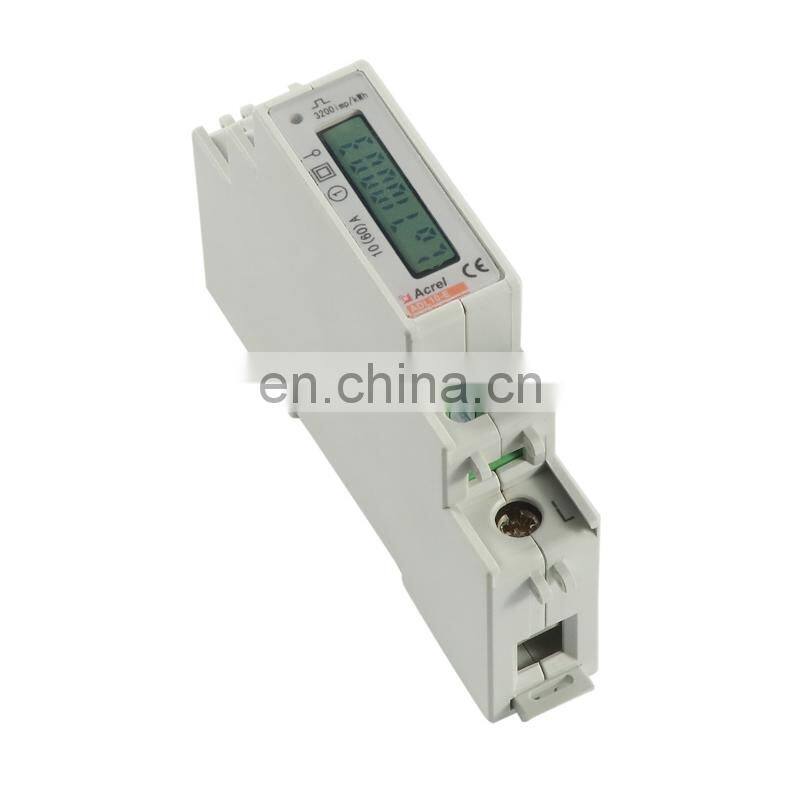

ADL10-E Single-phase DIN Rail Energy Meter
Products Description

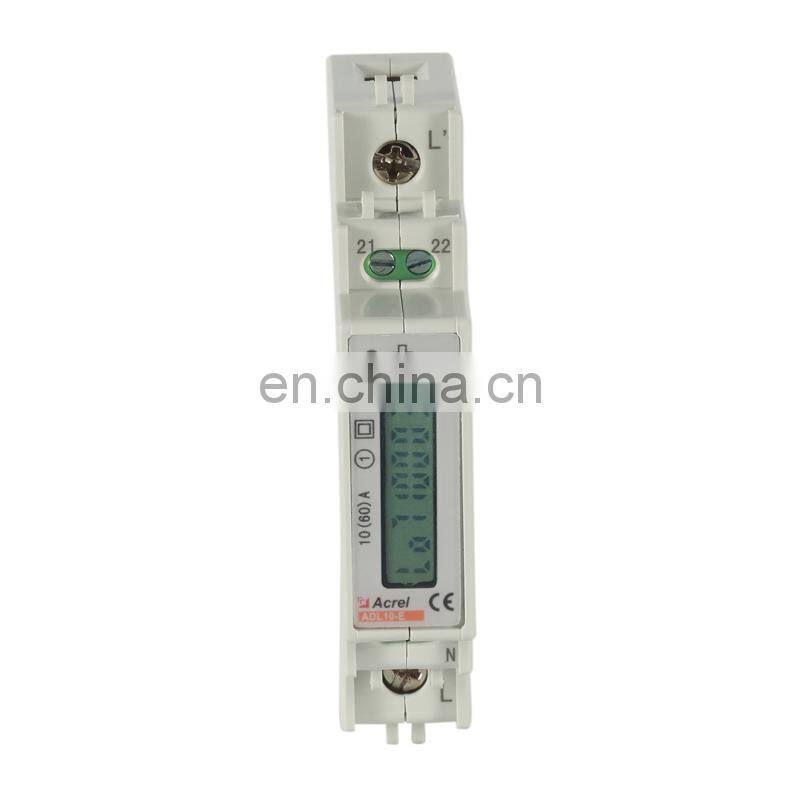

ADL10-E single phase electric energy meter is a new generation energy meter designed byAcrel Co, Ltd with many years of experience in designing electricity meters. Measurement, statistics, communication, and LCD display functions are installed in the power meter. This power meter has the advantages of high stability, low power consumption, data saving after a blackout, etc. All meters meet the related technical requirements of electronic power meters in the IEC62053-21、IEC62053-22 standards.

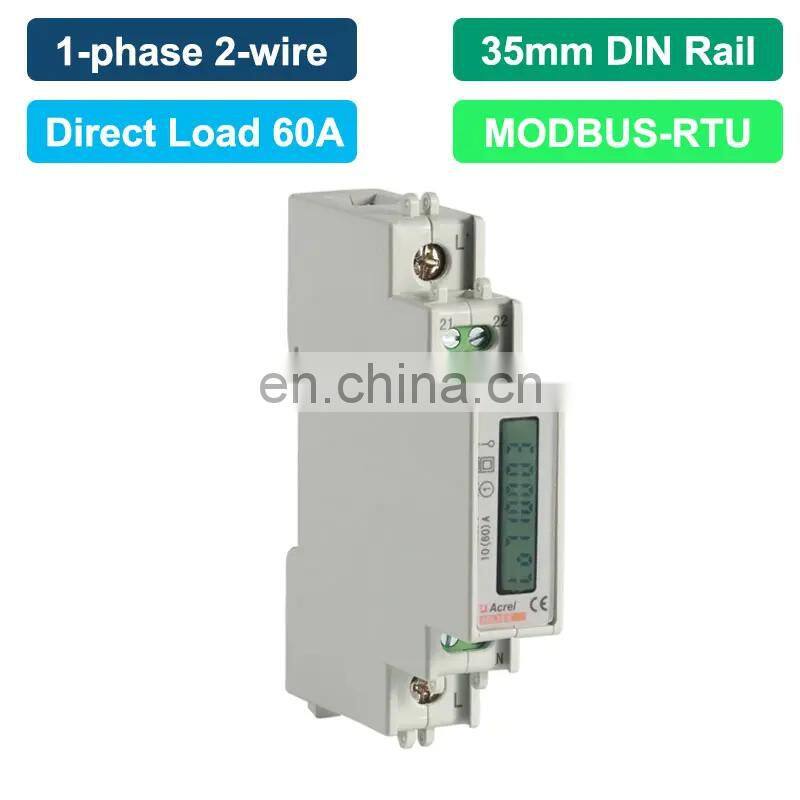

● Input Current: 10（60）A
● Small Compact Size
● Diverse Electricity Parameters Measurement
● DIN Rail Installation
● LCD Display
● IEC62053-21:2003; IEC62053-22:2003; CE; EAC
● RS485 (MODBUS-RTU)(Optional)

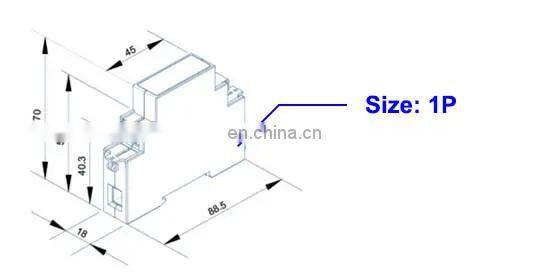

Small Compact Size
● Dimension (L*W*H): 18mm*88mm*70mm
● Dimension (L*W*H): 18mm*88mm*70mm

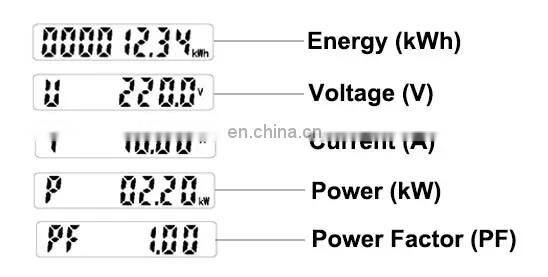

Diverse Electricity Parameters Measurement
●U (Voltage)
● I (Current)
● P (Power)
● Q (Reactive power)
● S (Apparent power)
● PF (Power factor)
● kWh (Kilowatt-hours)
● kVarh (Kilovar-hours)
●U (Voltage)
● I (Current)
● P (Power)
● Q (Reactive power)
● S (Apparent power)
● PF (Power factor)
● kWh (Kilowatt-hours)
● kVarh (Kilovar-hours)

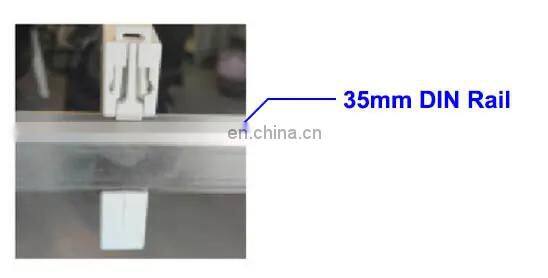

DIN Rail Installation
●35mm standard DIN rail
●35mm standard DIN rail

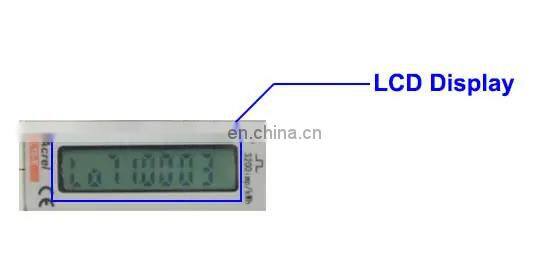

LCD Display
●8 digits
●8 digits
Technical Parameter
Function | Function description | Function provide |
Measurement of kWh | Single-phase active kWh (positive and negative) | ■ |
Measurement of electrical parameters | Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency | ■ |
LCD Display | 8 bits section LCD display | ■ |
Communication | Communication interface: RS485, Communication protocol: MODBUS-RTU | □C |
( ■: means standard; □: means optional)
Input voltage | Reference voltage | AC220V |
Reference frequency | 50Hz | |
Power consumption | <10VA | |
Input current | Basic current | 10A |
Maximum current | 60A | |
Starting current | 0.004Ib | |
Consumption | <4VA (Maximum current) | |
Measurement performance | Accuracy of measuring | 1 Class |
Range of measuring | 000000.00~999999.99kWh | |
Communication | Interface | RS485(A+、B-) |
Connection mode | Shielded twisted pair conductors | |
Protocol | MODBUS-RTU |
Range of temperature | Working temperature | -25℃~55℃ | |
Storing temperature | -40℃~70℃ | ||
Relative humidity | ≤95%(No condensation) | ||
Altitude | <2000m | ||
Wiring Illustration

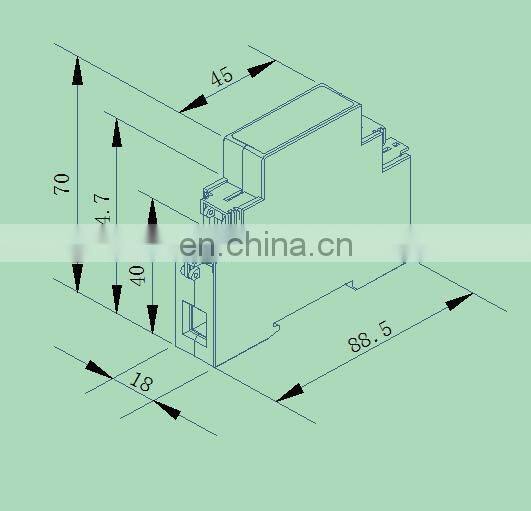

Dimension & Installation

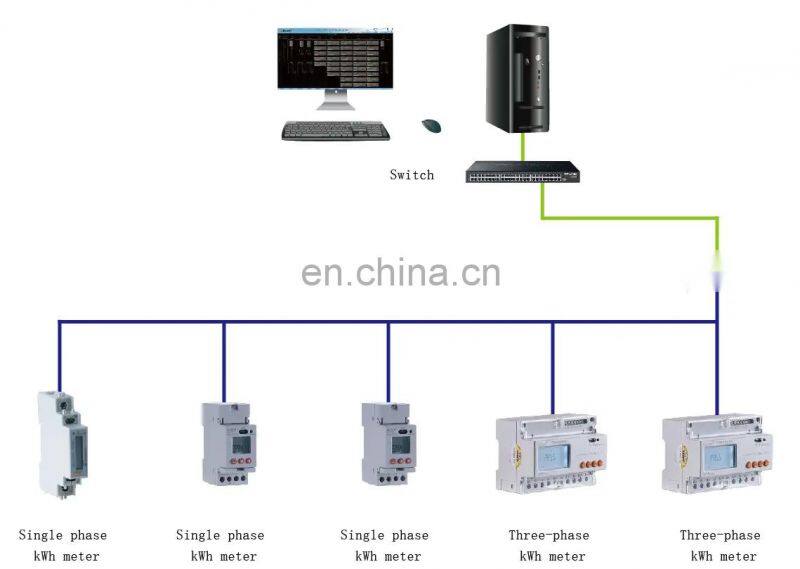

Solution Structure

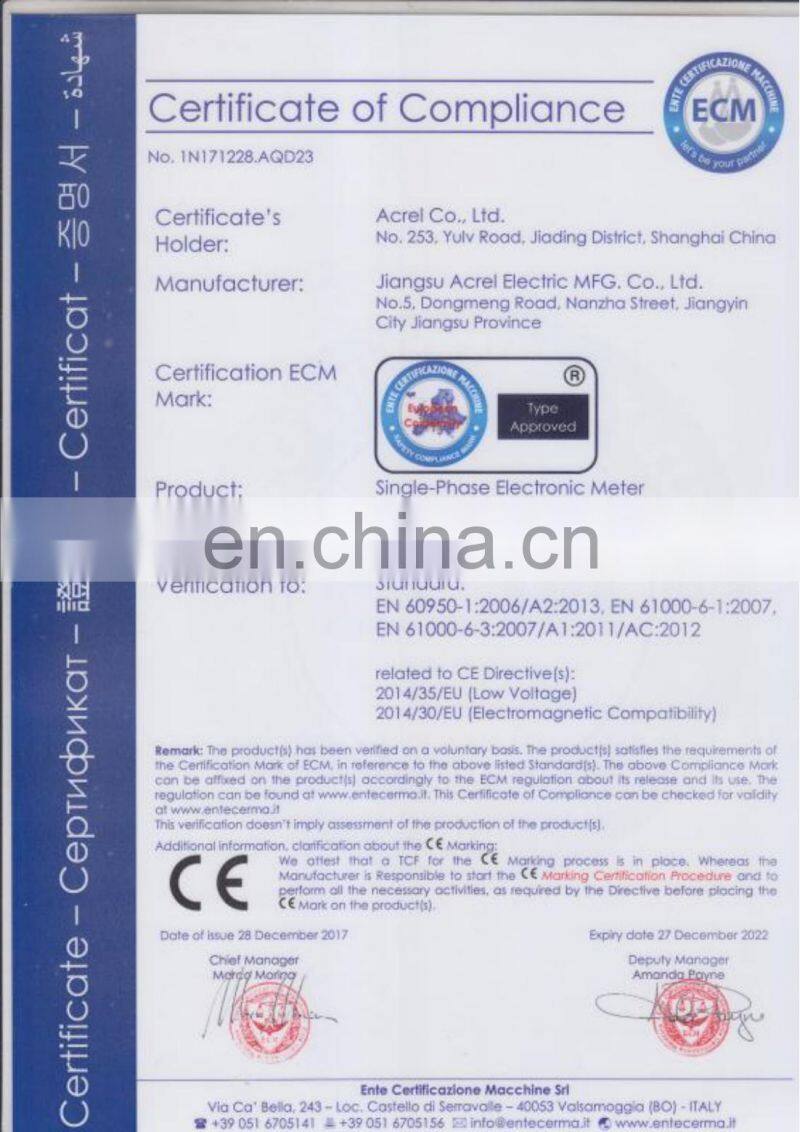

Certification
