Automatic CNC stirrup bending machine spot goods rebar bending machine
1.This equipment adopts servo controlling system;
2.Automatically accomplish the functions of rebar's feeding, straighten, bending and cutting etc;
3.Max bending diameter of round bar is 12mm;max bending diameter of rebar is 10mm.
4.Double roller synchronization with a wire feed system,easy to use and more convenient to study.

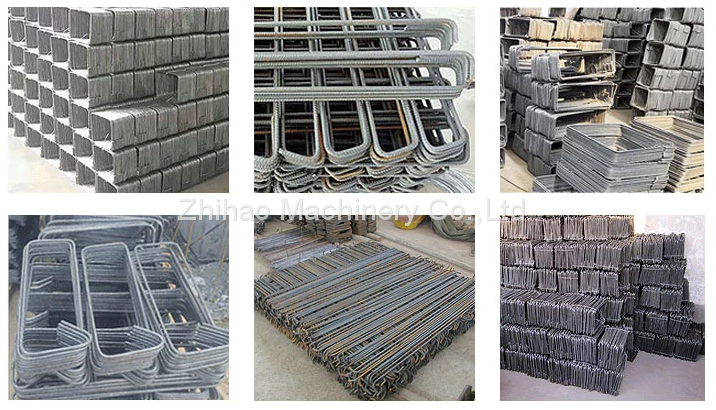

5.Can process 1600-2200 20*20cm square stirrups per hour.
6.Self-developed operating system, which can be regularly maintained and upgraded.
Technical parameter:
Model KT6 double bending way
Single wire 5-16mm
Double wire 5-12mm
Max bending angle ±180°
Max traction speed 75m/min
Max bending speed 800°/sec
Dimension 4000*2000*2200mm
Machine color Yellow (customized)
Total power 52.5kw(include air compressor)
Work temperature -5℃---40℃
Length accuracy ±1mm
Angle accuracy ±1°
Average power 12kw/h
Weight 3000kg
Optional with long platform
Function:
1) automaticly straightening
2) automaticly measure
3) automaticly bending (to different shapes used in construction projects)
4) automaticly cutting
Pre-sale Service
1.Supply item design,process design.
2.Help you to chose the fitest iron rebar stirrup bending machine .
3.Making the machine according to your requirement.
Sale Service
1.Acceptance equipment together with you .
2.Help you to make the method statement and the details of the process.
After Service
1.Guarantee for 5 years.
2.Quality problem,we will sent you the accessories.
3.Free repair whole using life(without accessories charge).
