New design electric copper cable wire recycling machine copper wire crusher scrap copper wire grinder for sale

In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, facebook, whatsapp, wechat, etc.)

New design electric copper cable wire recycling machine copper wire crusher scrap copper wire grinder for sale

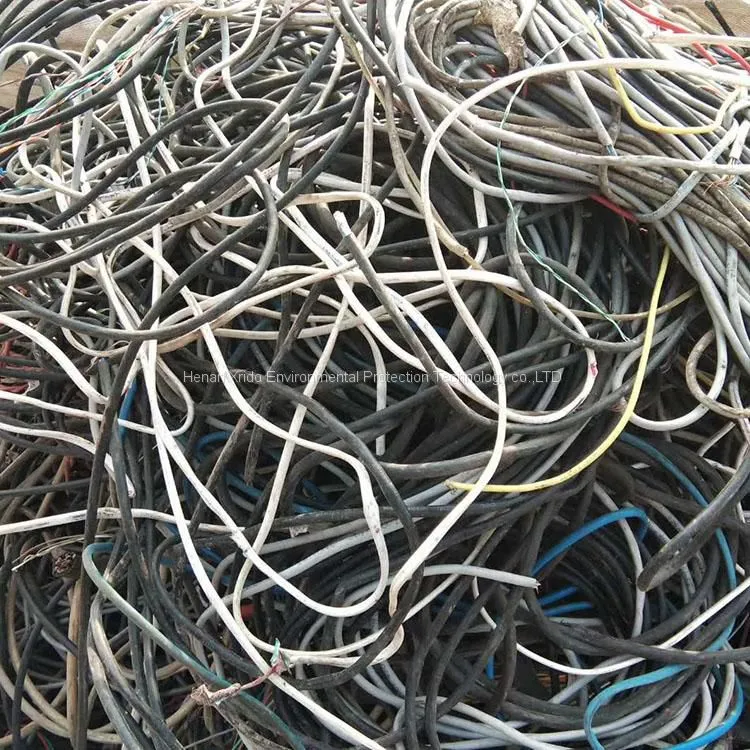

Copper cable granulator is suitable for processing all kinds of scrap wires and cables, wire and cable with a diameter of 1-200mm, such as Automobile electrical wire, car electric wire, motorcycle electric wire, power cable, communication cable, signal cables and other miscellaneous cables which cannot be processed by wire stripping machine.

Description:

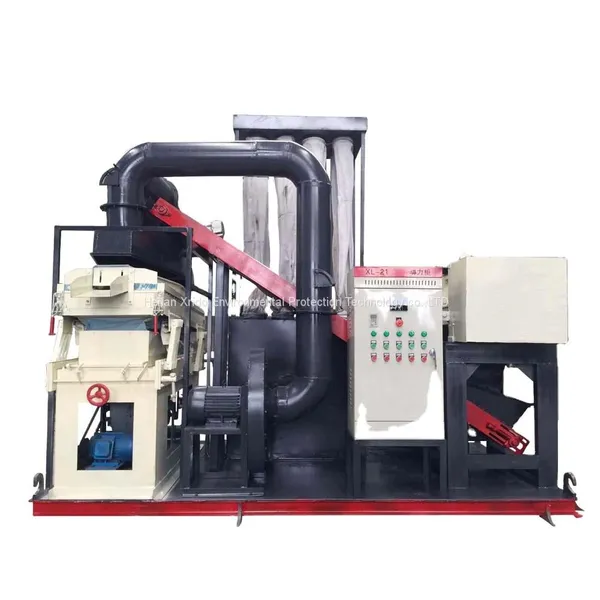

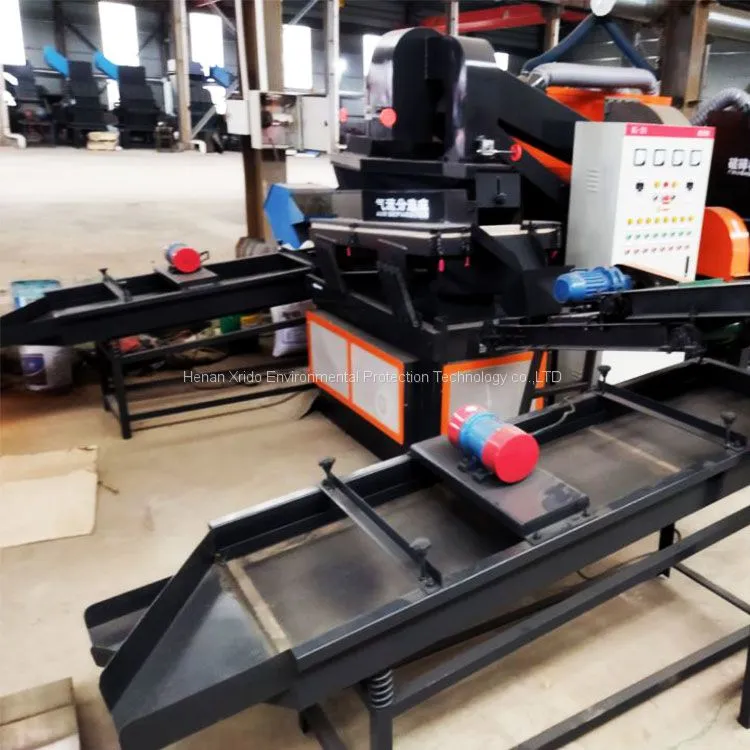

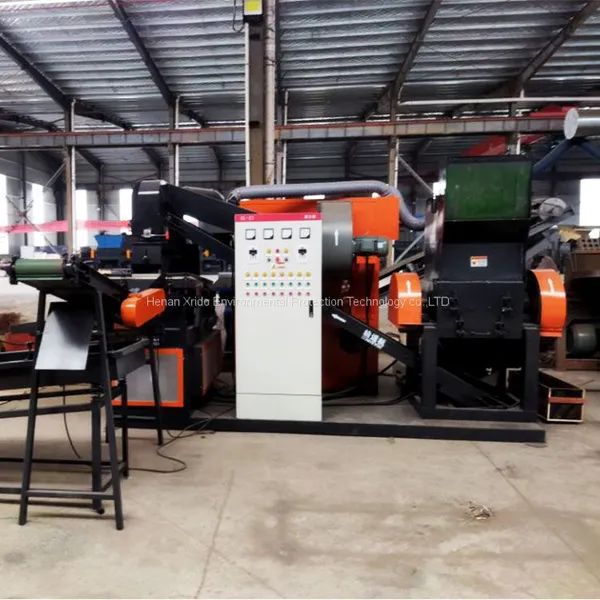

Xrido copper cable granulator adopts advanced design, rational structure and reliable operation. The characteristics of the production line can not only deal with thick wires which the normal crusher can process, but also the very thin wire has good separation effect. The present production line by feeding conveyor belt, heavy duty crushing machine, feeding blower, vibrating screen, pulse dust collector, hydraulic Station and electrical control cabinet and other components.

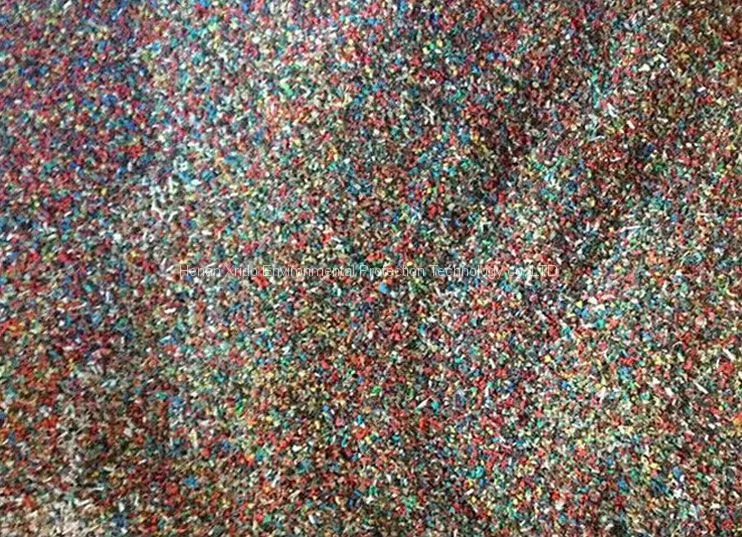

The waste cables or wires will become plastic pellets and copper particles after been crushed. The mixed will jump and move ahead like wave type on the vibrating screen mesh surface. With airflow function and screen box straight shock excitation, the sheath and core will be separated, and get copper particles, plastic pellets and mixture from different outlet areas.
Each step is controlled by the PLC program, started and stopped by one button. The operation interface video display the working condition of the important parts, and intelligent display the equipment failure.The max. diameter of scrap cable is 60mm. It is easy to operation and maintenance, the separation purity can reach 99% with single copper core of diameter ≥0.2mm and the input capacity around 300-500 kg/hr.

Cable Recycling Plant Working Process:
1. The first cable wire shredder of the recycling plant shreds the wires/cables into 10-20mm length.
2. By conveyor, crushed wires/cables are conveyed to the wire cable wire granulator, which crush them again into 3-8mm length plastic pieces and copper granules.

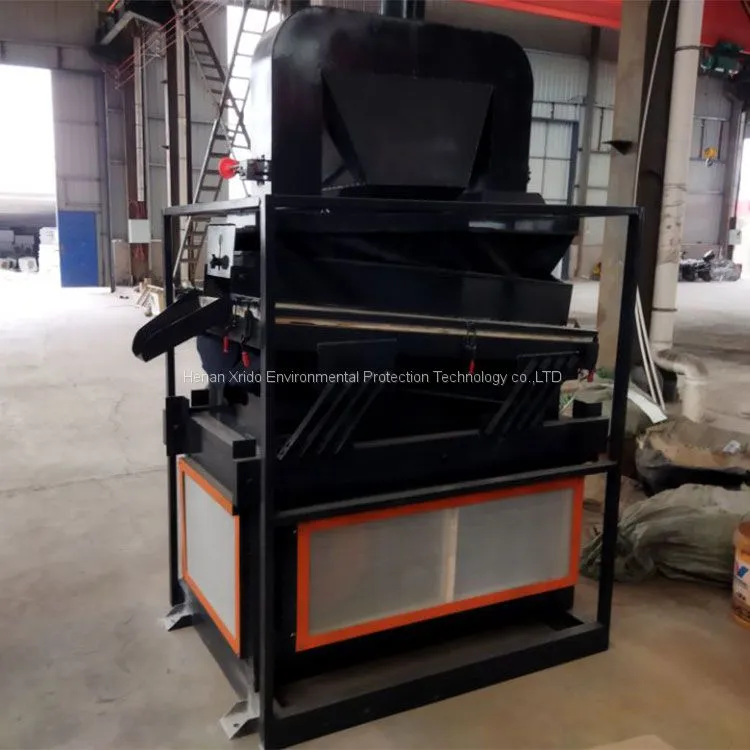

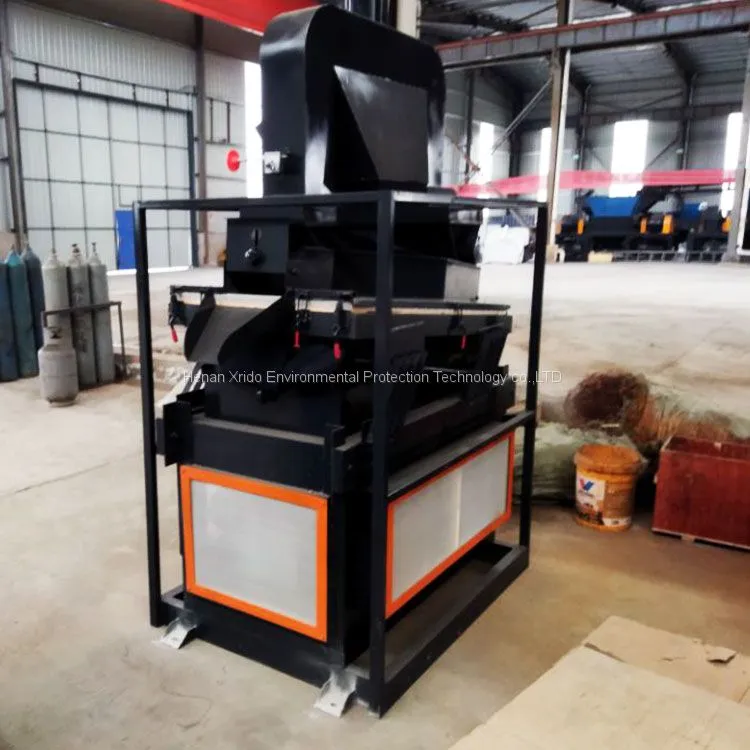

3. The mixture is sent to the vibration system. By airflow gravity sorter and vibration screen, plastic pieces are separated from copper granules thoroughly.

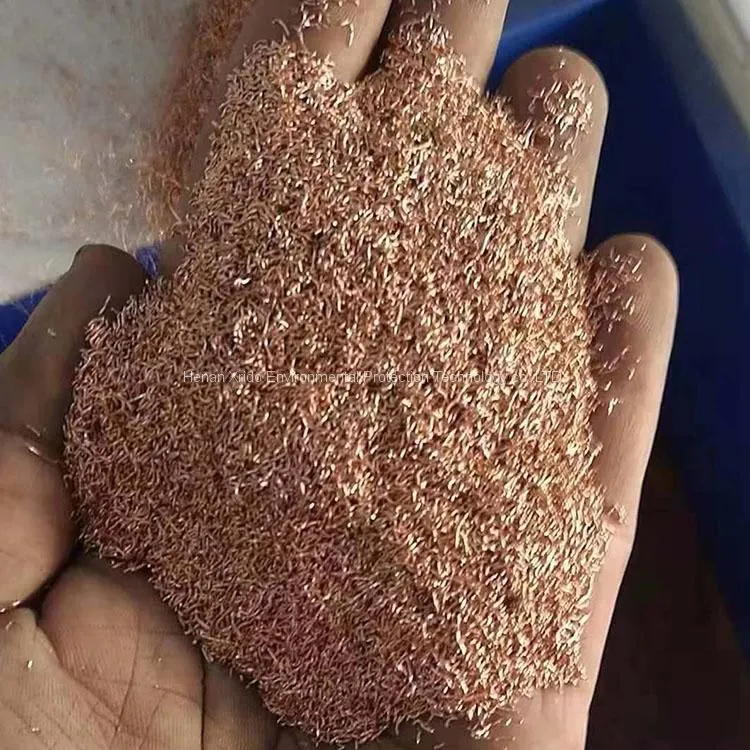

4. Copper granules and plastic pieces come out of the granulator from different outlet. Dust is collected by pulse dust catcher through air duct.

Cable Recycling Plant Features:
1. Large handling capacity, suitable for large scale production.
2. Manual feeding material for one time, multiple machines combined for automatic separation.
3. Adopting PLC to control the whole system, having stable performance.
4. The copper recycling rate can reach 99%.
5. The plant adopts air and vibration separation, no water pollution.
6. Equipped with dust collector, no dust pollution.
7. The voltage can be customized according to your requirements.
