| Name: | Fish Bolt | Application: | Railway |
|---|---|---|---|
| Material: | Carbon Steel,Stainless Steel Or Alloy Steel | Surface: | Black,Zinc Plated,Copper Plating,Phosphating, HDPE, Fluorocarbon Coating, XYLAN |
| Standard: | ANSI/ASME, JIS, EN, DIN, BS,GB, SH, HG, IFI, ISO | Head: | Round |
| Thread: | Partial | ||
| High Light: | Oval Neck Rail Fish Bolt, ASME B18.10 Rail Fish Bolt, Elliptic Neck Track Bolts | ||

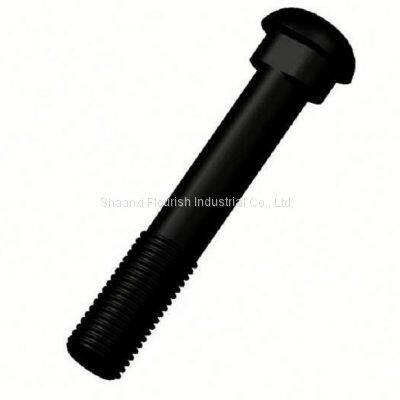

Railway Fish Bolts with Round Head and Oval Neck DIN 5903-1/Elliptic Neck Track Bolts ASME B 18.10
Products Introduction
Fish bolts with rail fish plate to splice bar connections. We can provide a wide range of fish bolts with all sizes manufactured according to various international standards, such as BS, ASTM and DIN etc.
Name: Fish bolt
Standards: GB, DIN, ISO, ANSI/ASTM, B7, BS, JIS etc
Grade: 4.8, 6.8, 8.8, 10.9, 12.9
Material: Q235, 45#, 40Cr, 20Mntib, stainless steel, etc
Size: M12-M24 or upon customer request
Length: 45mm-145mm or upon customer request
Surface: Plain, black, zinc-plated, or according to customers' requirement
Usage: It is used to fix the rail fish plates onto rails.
Non-standard OEM is available if the buyer provides a drawing or sample.
Samples: samples are free.
| Railway Fish bolt | ||||
| Grade | 4.6 | 5.6 | 8.8 | 10.9 |
| Material | Q235 | 35# | 45# | 40Cr |
| Mechanicalproperties | Tensile strength: ≥400Mpa | Tensile strength: ≥500Mpa | Tensile strength:≥800Mpa | Tensile strength: ≥1000Mpa |
| Yield strength:≥240Mpa | Yield strength:≥300Mpa | Yield strength:≥640Mpa | Yield strength:≥900Mpa | |
| Elongation:≥22% | Elongation:≥20% | Elongation:≥12% | Elongation:≥9% | |
| Cold bending:90 degree without crac | Cold bending:90 degree without crac | Cold bending:90 degree without crac | Cold bending:90 degree without crac | |
| Surface | plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing | |||
| Standardrefers | UIC864-2 | |||
