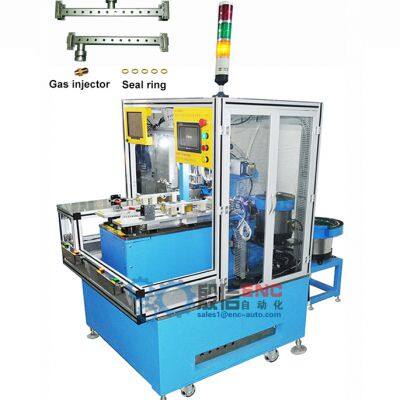

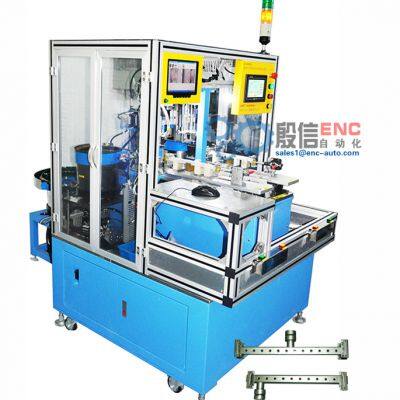

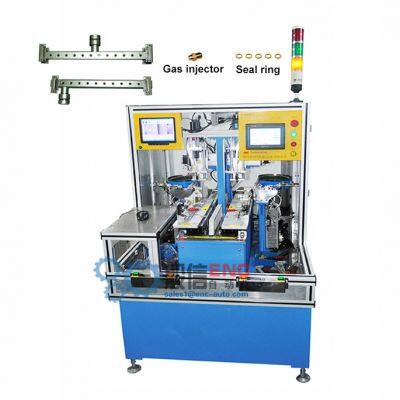

Automatic Screwing Tightening Fastening Machine for Fire Row Burner

    Automatic screwing tightening fastening machine for fire row burner:This machine adopts multi-station design，Every station can finish different mission at the same time,every station works in non-interference and intercoordination,this design can meet the product with complex assembly.

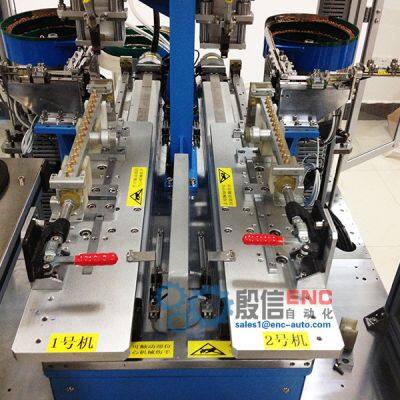

1) Adopt the design of double slipping station,The left and right station can work in turn without interference from each other.

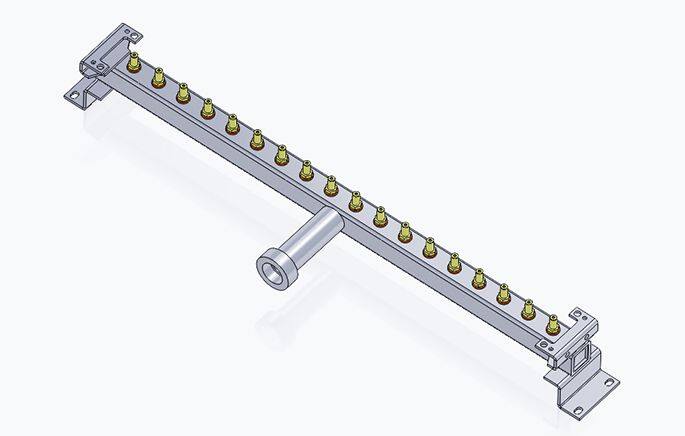

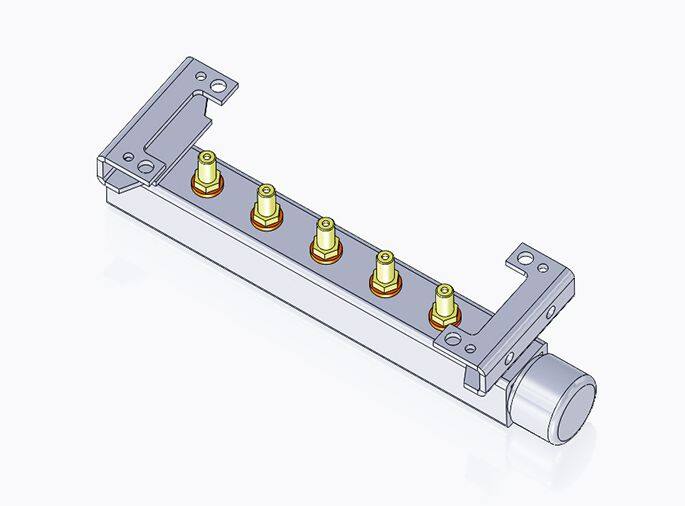

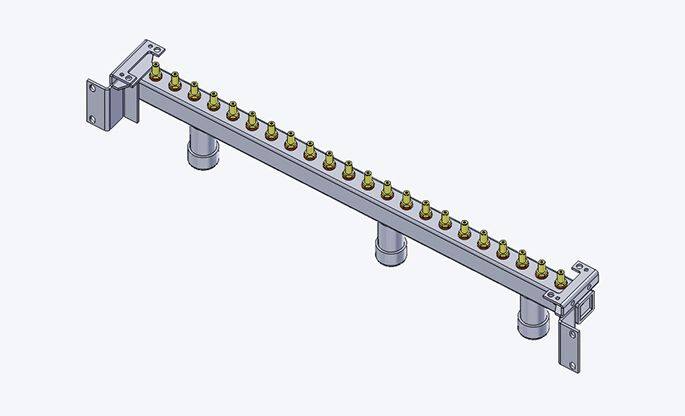

2) Aim at the matter of discordant distance between the front and back thread hole of fire row burner,We adopt the high precise CCD camera to position,Which can ensure the success rate of assembly stable at more than 99.9%.

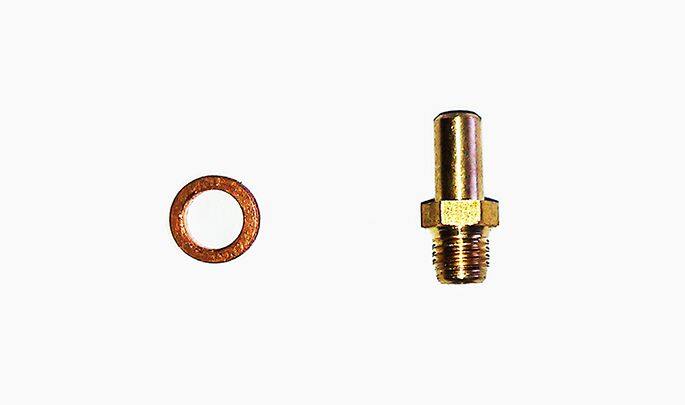

3) This set automatic screwing machine for fire row burner can realize natural gas injector feeding,seal ring feeding and injector fastening at the same time,Which can improve the assembly efficiency much.

4) Huge screw feeder can hold 2000~2500 pcs of natural gas injector one time.So you should never need to worry the matter of lacking screws during production any more.

5) Equipped with the LED touch screen which can display the alarm in real time,So it is very convenient for operator to find and solve the problem in a short time.

6）The machine owns the function as the following:Quantity statistics(OK amount and NG amount),thread slip detection,floating detection,screw omission detection etc.

7) Adopt the ASA brand electric screwdriver especial for automation as the driver,Torsion outputs stably,Which can ensure a perfect assembling quality.

8) Universal power supply:110-240ACV,50~60Hz.
