Baffled Jumbo Big Bag/pp Bulk Bag for Sea Salt Shipping Bulk Bag for Copper Concentrate
- tianjin
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 5 days
You May Like
-
PP Ton Bag/pp Jumbo Big Bag 300--2500kg 1000kg Fibc Bulk Bag for Construction Material/copper Concentrate
-
PP Big Bag SWL 1000kg,double Warp Fabric,SF 5:1 UV Treated Any Color Chosen
-
Top Ten Manufacturer Supply 1 Tonne Peanut Bulk Bag Food Grade 100% New pp 500kg Peanut Bulk Bag
-
pp Virgin Beige Peanut Seeds Bulk Bag Peanut Big Bulk Bag South Africa 250kg Bulk Bags
-
Polypropylene Breathablepp Big Jumbo Bulk Bag for Peanut/onion/potato
-
BV Certified Peanut Seeds Bulk Bag Asbestos Disposal Bulk Bag,U-panle pp Woven Bulk Bag,China Manufacturer Big Bag for Asbestos
Product Details
| Brand Name | bopp woven ad star cement bag | Place of Origin | China | |
| Model Number | ad starlinger woven pp fibc ton valve bag | Material | Plastic | |
| Plastic Type | PP | Feature | Barrier | |
| Surface Handling | Flexo Printing | Industrial Use | Agriculture | |
| Use | Feed | Custom Order | Accept | |
| Sealing & Handle | Heat Seal | Bag Type | Woven Bag |
Product Description
Product Specification
Liner Types are divided into following three types on terms of shapes:
● Gusseted and flat liner: These are standard circular shape liners manufactured with no filling or discharge spout, open at top, either closed or open at bottom.
● Bottle type liner: This type liners produced with top and bottom spouts suitable size for the outer FIBC bag. With bottom type liner, it’s easy to form fit and fix to the outer bag, also help to protect against external factors.
● Baffle liner:These liners can prevent bulging and keep upside standing and there for save the space when storage and transportation. Similar to baffle FIBC bag but instead of using baffle liners. And it especially satisfy the requires gas barrier or protection against humidity.
Liners can also be distinguished by material and usage purpose as following:
● HDPE material or LDPE material: These are normally transparent liners and are mostly standard using for jumbo bags.
● Aluminum Foil liner: This type linings are mainly usd for loading special chemicals and medicals.

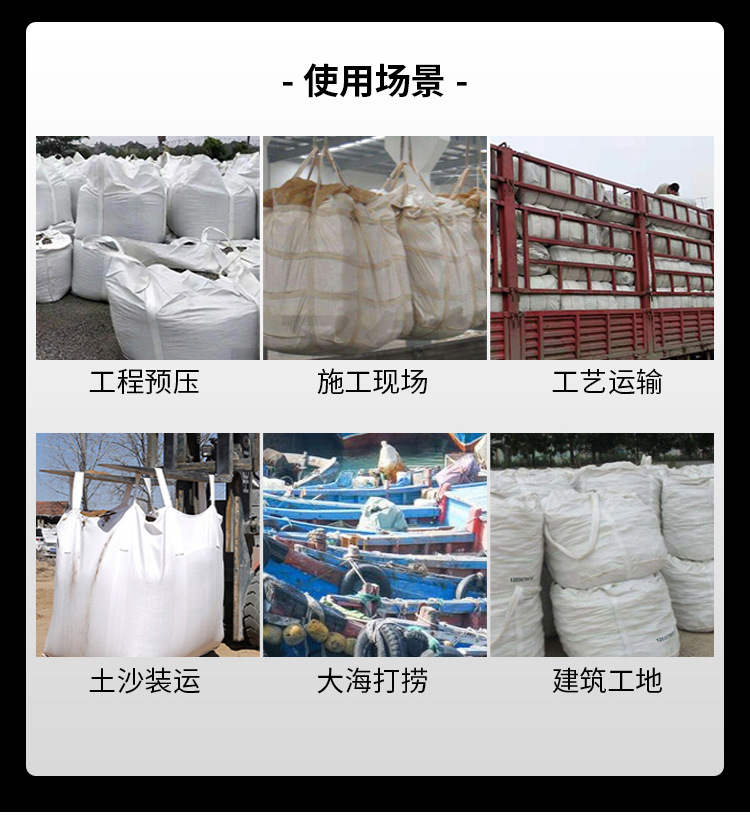

Jumbo bag with liner are suitable for the transportation of the following:
● Chemicals: such as TiO2, Carbon black, Dyes, Acetic acid etc.
● Pharma:Drugs, Granules and Capsules, Clay etc.
● Construction buildings: Sand, cements, Gravels and stones etc.
● Food Products: Sugar, Flour, Starch, Milk powder, Ingredients etc.
● Grains and Seeds: Beans, Wheat, Rice, Potatoes, Onion etc.
● Animal Feeds: Dog’s feeds, Cat’s feeds, Horse’s feeds, Chicken’s feeds and Duck’s feeds etc.
● Plastics: Polymers, Resin etc.
Anti-static FIBC also named Conductive FIBC, these type bags were originally made from conductive materials. During the bulk bag filling and emptying operations, ensure that the ground point is connected to the system ground point. In addition, during these operations, the use of Type C bags is very safe when conductive yarns and ground wires are connected to each other.
Our leading experience in Industry packaging
● High confidence to protect the safety of chemicals.
● In compliance with legal requirements
● Own production facilities meet stringent safety inspection
● Professional technology minimizes the risk of electrostatic discharge hazards
● High production and testing standards
● On-site technical evaluation: your wishes, our profession
● Comprehensive protection during transportation, storage and packaging
Classification according to the degree of hazard of the cargo material
Non-explosive environment | Non-explosive environment | Explosive gases or steam (Gas Zone 1-2) | |
None explosive | A | B | C |
MIE > 3mJ | B | B | C |
MIE <3mJ | C | C | C |
MIE (minimum ignition energy), mJ (mega Joule)
Applications for Antistatic FIBC
This type of fibc is normally used to pack explosive materials or around with explosive environment; It can be widely used for the following applications:
When more sensitive powder, flammable gases are present, additional electrostatic protection is required, the Type C and Type D conductive FIBC need to be used. And some materials or products are easy flammable, it is suggested to use this bag to prevent dangerous to human beings or environment.
As a packaging bag manufacturer and Supplier, we can provided various types of bulk bags. one loop or 2 Loop bulk Bags are produced from circular woven fabric and with double carrying handles are strengthened. It ensures that filling process in a shorter time and provides a low-cost advantage. And this bag is widely used for loading fertilizers or cements.
CONTACT US:
Mr.Daniel
Mobile Phone:+86-13802155833
WeChat:+86-13802155833
WhatsApp:+86-13802155833
E-mail: tjwoking@163.com
Product Specification
Dimension: | 90x90x115cm |
Material: | Virgin PP material |
Feature: | Double lifting loops |
Filling Spout: | 14’’x18’’ |
Fabric: | 14X13X1600D |
Lifting loops: | 2 loops |
Safety Loading: | 1400kgs at 5:1 |
Sewing Thread | 1000Dx2ply high tenacity polyester |
Model item: | 2 loop bulk bag for single trip |
Design: | Tubular or Circular shape |
Lamination: | 25gsm lamination with 2% UV |
Usage: | Copper Minerals, fertilizers, cements |
Sewing: | Close up lock stitching type, length of stitch<10mm |
Printing: | 2-side, single Color (Dark Blue) |
Packing： | On bales or Pallets as require |
Advantages of one loop or 1 loop bulk bags:
·
2 loop bulk Bags are consisted of one tubular farbic for bag's body and a piece of square fabric for bag's bottom.
·
·
There's no sewing stitches on bag body, which can avoid of leakage if loading refined powders.
·
·
Currently, These 1 or 2 loop bags are the first choice for automatic packaging process line.
·
·
Lighter bag weight save costs for industry
·
·
Widely range of loading capacity from 500kgs to 1500kgs
·
·
To be featured as the economic choice for efficient packaging.
·
Our world Class Manufacturing Facility produces FIBC bags, PP Woven Bags, Kraft Paper bags etc.
● Virgin new materials, which have been passed quality control tests and suitable for production, are put in the mixer.
● Polypropylene and additive materials, which are mixed and extruded in to suitable fiber thread by draw bench machine.
● The yarns, which fulfill the quality and strength testing, are wound on the bobbins and directly to the weaving machine for weaving fabric
● The fabrics, which are in qualified with the standards are placed on the lamination machine depending on client’s requirement. (BOPP / OPP or customized lamination is done at this stage.)
● After lamination, the fabrics are cut into desired sizes and dimensions before sewing process. Then printing will be done and ready for sewing. (Lifting straps and other additions will be prepared ready in this stage)
● Bags sewing according to customer’s detailed technique require.
● QA and QC inspection and testing the SWL (safety working loading) weight at suitable safety factor. (SF 3:1, 5:1 or 6:1)
● Packaging according to the demands of customers and get ready for delivery.
Bag's production Facility Capacity:
● 8,000 bulk bags and 50,000 Woven Bags per Day.
● 100,000 meters of woven fabric per Day.
● 25,000 meters of PE liners per Day.
● 40,000 meters of Lamination per Day.
● 120,000 meters of Webbing per Day.
