U Panel FIBC Bag/Jumbo Bag/Bulkbags/Sacos - 1ton/1.5ton/2ton

FOB Price

USD $0.102 - $0.21 / Piece

100 Pieces(Min.Order)

Supply Ability 22220000 Piece / Pieces per Month
Port qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail13 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ad starlinger woven valve bag	Place of Origin	China
Model Number	fibc jumbo ton sling bag	Feature	Food Grade
Loading Weight	1000kg	Safety Factor	5:1
Bottom Option (Discharge)	Flat Bottom	Loop Option (Lifting)	Loop in Loop
Top Option (Filling)	Top Full Open

Product Description

Detailed specification of 1 ton 1.5ton jumbo big bag for sugar packing :

No.	Item	Specification
1	Size	85cm85cm90cm/90cm90cm100cm or customized
2	Body construction	4-panel/U panel/Circular panel/Tubular panel/rectangular type
3	Top	Open mouth/skirt mouth/ filling spout
4	Bottom	Flat /discharge spout
5	Loop type	side seamed /cross corner/double stevedore with 2-4 belts
6	Printing type	one or two side with 1-3 color off set color
7	Optional parts	document pouch/label/rings/PE liner
8	SWL	5:1/3:1/6:1
9	Loading capacity	500kg to 3000kg
10	Color	white, yellow, blue or customized
11	Fabric weight	100g/m2 to 240g/m2
12	Fabric treatment	anti-slip or laminated or plain
13	Rope type	1 or 2 around the body or customized
14	Application	For packing the cement, sand, resin, wood waste, grain, powder, chemical resin, construction material, mine, coal..
15	Inside liner	60g/m2 to 80g/m2 PE liner
16	Characteristics	moisture-proof, conductive, reinforcement, dust-proof
17	Material	100% original pp
18	Sewing type	Plain/chain/chain lock with optional soft-proof
19	Package	about 100kg for one bale
20	Delivery Time	within 25-30 days for one 40H container

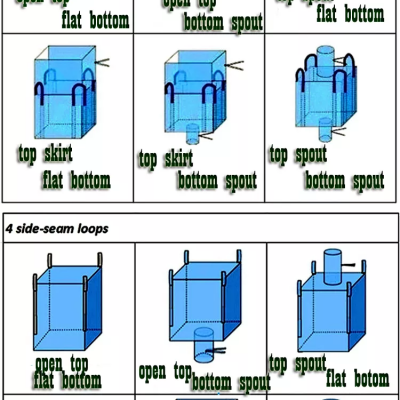

The tops of big bags : open mouth or skirt(duffle)or filling spout

The bottom of the big bags: flat bottom or discharge spout

The loops of the big bags :cross corner or side seamed

The other options : with PE liner or labels or document pouch

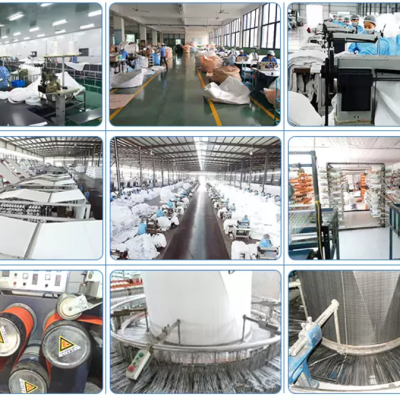

4.Production process of 1 ton 1.5ton jumbo big bag for sugar packing:

The following is the whole process to making the super sack/big sack/jumbo bag/woven pp bulk bag:

Extruding PP particle---------Drawing and cutting PP film-------thread the PP tapes-------Weaving pp tapes to tubular fabric-------Printing the body---------sewing top/bottom parts and loops and other parts--------Inspecting the strength tensile-package

5. Application of 1 ton 1.5ton jumbo big bag for sugar packing :

packing / storing / transporting

1. Food Area: sugar, salt, flour, starch.
2. Agriculture Area: grains, rice, wheat, corn, seeds, flour, coffee Beans, soybeans.
3. Feed: pet food, pet litter, bird seed, grass seed, animal feed.
4. Chemicals: fertilizer, chemical materials, plastic resin.
5. Construction material:sand, cement , powder

6. Advantage of 1 ton 1.5ton jumbo big bag for sugar packing:

Compared with other packaged containers like wooden box, plastic drum, the super bag/ jumbo sack/FIBC sack have the following advantages:

1. Safety - Big Bag containers have a 6 to 1 lifting safety factor. With tubular design the risk of side seam failure has been reduced.

2. Cleaner environment - Fill and discharge spouts control dust during filling and emptying which avoids the risk of fire and then a cleaner and healthier work place is available.

3. Less risk of damage - An inserted polyethylene liner or lamination makes the Big Bag moisture resistant as well as stronger than other flexible containers.

4. Lower costs – Rapid filling and less shipping damage reduce operating costs, and a collapsed bag stores in only 5% of its filled volume.

5. Enhanced appearance – White clean Big Bag containers with high quality printing of your name or logo create a positive presentation.

7.Quality control of 1 ton 1.5ton jumbo big bag for sugar packing:

In order to produce the high quality FIBC sack/big sack/bulk bag, the following is our effort to control quality:

1. From material: using 100% original high strength pp material. not recycled or wasted pp material.

2. For fabric: control the strength tensile and density of pp tapes to satisfy the loading capacity.

3. For loops: using high quality material to fulfill the strength of loading goods.

4. Inspection: using the machines to test the strength tensile and tearing function after finish the goods.

5.Drop test: for safe factor, for each batch of products, will test the SWL to avoid any mistake.

8.Package and loading of 1 ton 1.5ton jumbo big bag for sugar packing:

using the automatic packing machine to pack the pp big bag. about:100kg/bale.

According to the FIBC bag with PE liner or not and complicated parts.
1. For 20ft container, will load about:8.5-10 tons. about 1000 pcs to 2000pcs.
2. For 40HQ container, will load about 18-22tons. about 9000 pcs to 12000pcs.
