Home > Products > Primary Air Filter > hepa filter，No antibacterial hepa filter type，Hundred level high efficiency filter screen

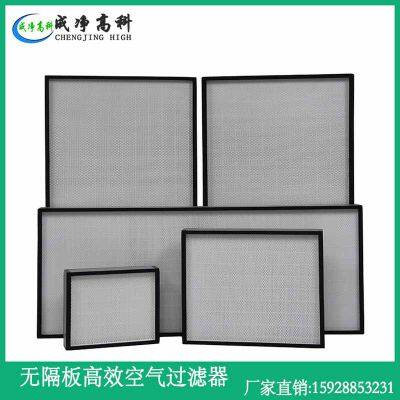

hepa filter，No antibacterial hepa filter type，Hundred level high efficiency filter screen
- 1000 Piece / Pieces per Month
- Shenzhen
- T/T
-
5 micro pp filter cartridge for pre filter
-
washable air filters
-
Air Breather HY-GLQL-001 for India Power Plant
-
Filter air outlet static pressure box aluminum partition filter air outlet
-
Small FFU fan 500 * 500mm FFU thin FFU fan ultra small FFU
-
FFU dust-free supply fan FFU laminar flow hood ultra clean workbench FFU
Product Details
| Model Number: | CJ-HW1 | After-sales Service Provided: | No overseas service provided | Dimension(L*W*H): | 484*484*90 |
| Condition: | New | Medium Material: | Other | Filtration Grade: | Other |
| Construction: | Other |
Product Description
No antibacterial hepa filter type
Features
●High efficiency, low resistance
●Antibacterial function, prevent bacteria enter the clean workshop
●Suitable for pharmaceutical, food and beverage, etc, air purification operating
Materials and operating conditions
●External frane：Aluminum alloy frame
●Sealant：Gel-glue
●Filter media：Hot-melt
●Gasket：EVA
●Filter media：Antibacterial type filter fiberglass
●Use the highest temperature, humidity：80℃、80%
Standard specification
model | Outside dimensions (mm) | Rated air flow (m3/h) | Imitial resistance (Pa) | Efficiency (%) | Dust capacity (g) | |
CJ-HZ-1 | 610×610×50 | 700 | 140~220（HV） | ≥99.99 | 450 | |
CJ-HZ-2 | 915×610×50 | 1000 | 140~220（HV） | ≥99.99 | 680 | |
CJ-HZ-3 | 1220×610×50 | 1400 | 140~220（HV） | ≥99.99 | 900 | |
CJ-HZ-4 | 610×610×69 | 1000 | 140~220（HV） | ≥99.99 | 560 | |
CJ-HZ-5 | 915×610×69 | 1500 | 140~220（HV） | ≥99.99 | 840 | |
CJ-HZ-6 | 1220×610×69 | 2000 | 140~220（HV） | ≥99.99 | 1120 | |
CJ-HZ-7 | 610×610×80 | 1200 | 140~220（HV） | ≥99.99 | 650 | |
CJ-HZ-8 | 610×610×90 | 1400 | 140~220（HV） | ≥99.99 | 750 | |
CJ-HZ-9 | 610×610×100 | 1600 | 140~220（HV） | ≥99.99 | 850 | |
CJ-HZ-10 | 1170×570×69 | 1800 | 140~220（HV） | ≥99.99 | 1000 | |
CJ-HZ-11 | 1170×570×80 | 2200 | 140~220（HV） | ≥99.99 | 1250 | |
CJ-HZ-12 | 1220×610×80 | 2500 | 140~220（HV） | ≥99.99 | 1300 | |
CJ-HZ-13 | 1220×610×90 | 2800 | 140~220（HV） | ≥99.99 | 1500 | |
CJ-HZ-14 | 1220×610×100 | 3200 | 140~220（HV） | ≥99.99 | 1700 | |
According to user requirements to customize different specifications and types of filters
