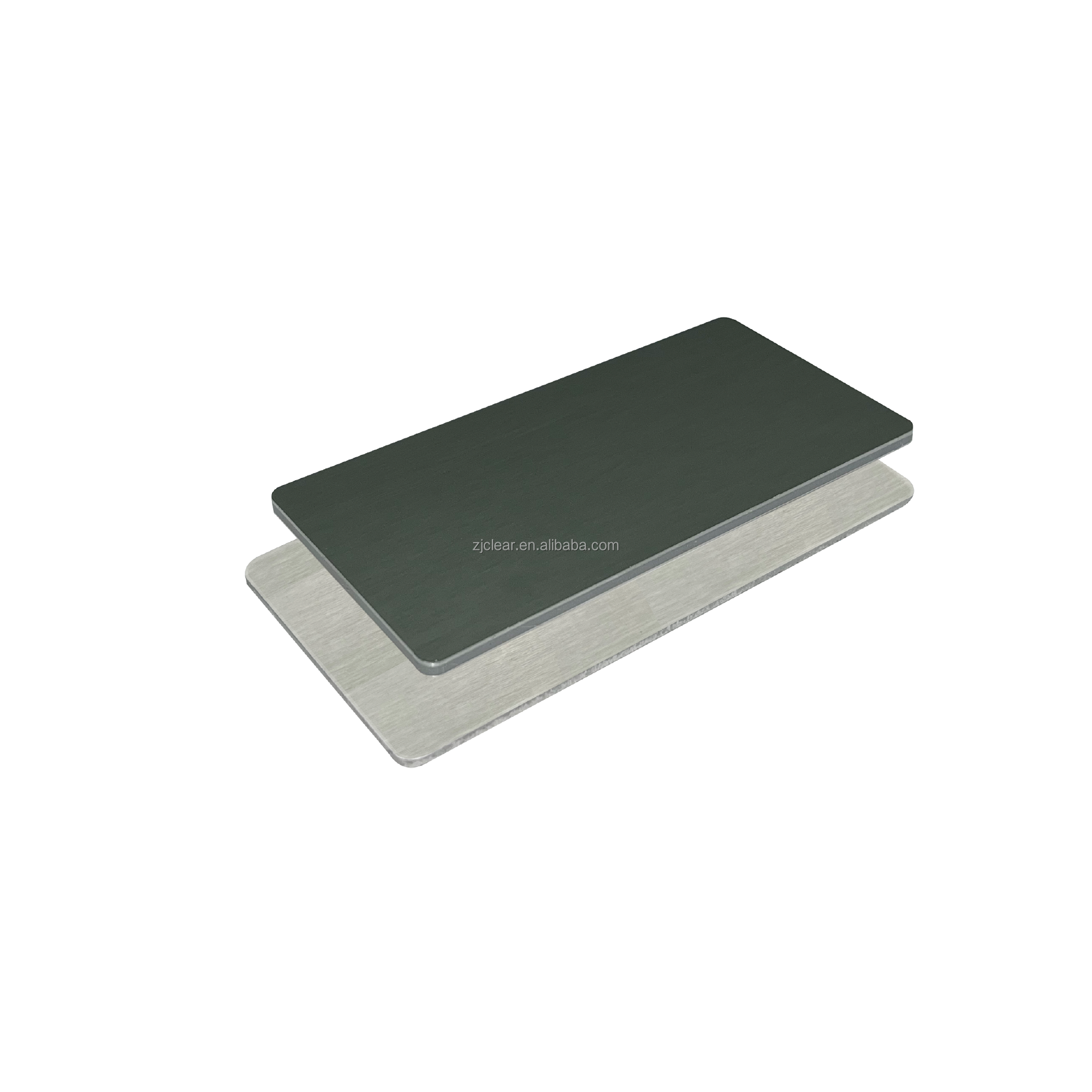

B1/A2 Core Titan-Zinc Composite Panel

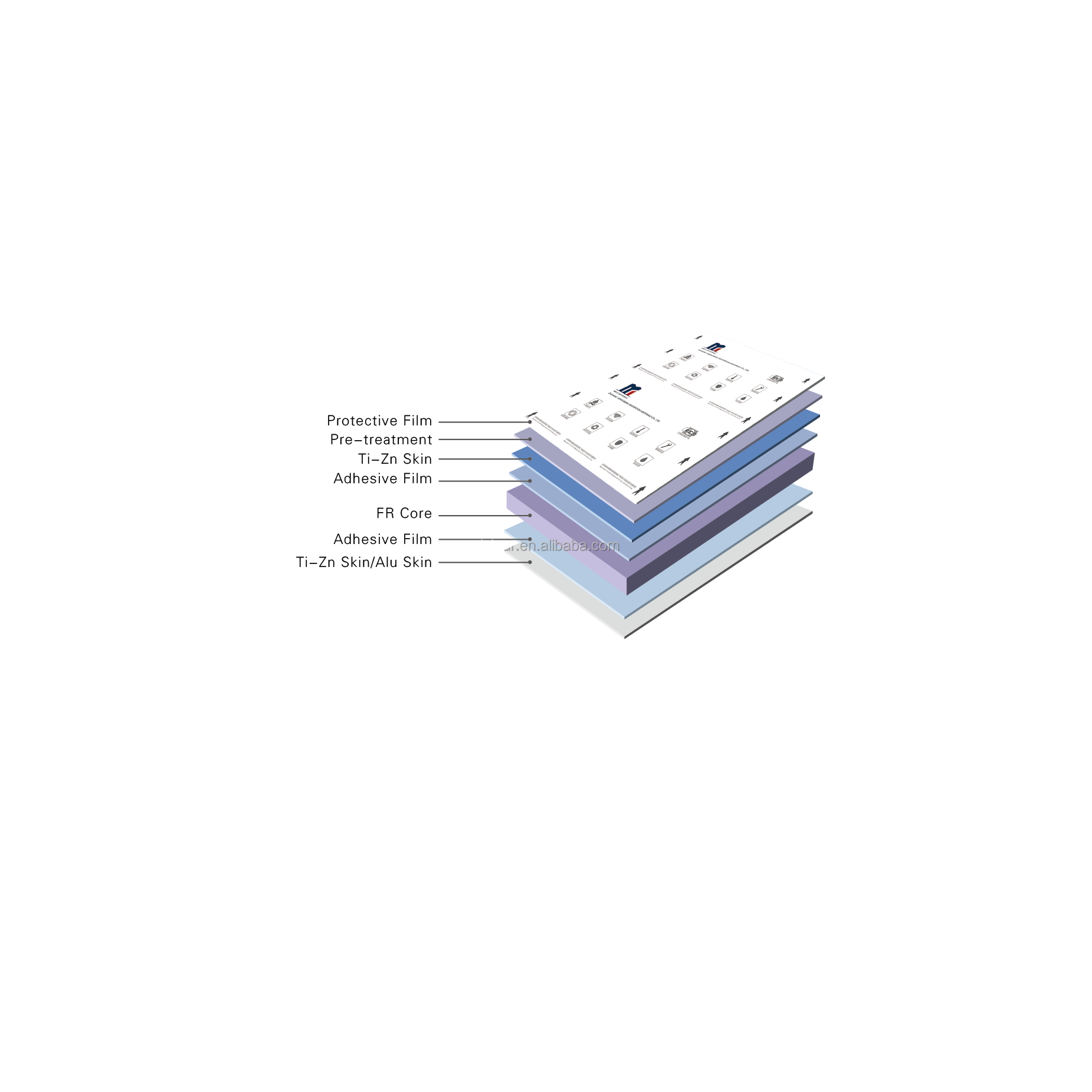

MecoP.n.'- Titanium-Zinc Composite panel is a sandwich panel that is consisted of
two Ti-Zn sheets bonded to a mineral filled fire retardant core through a continuous
extruding and laminating process. The bottom sheet of the zinc composite panel can be
aluminium instead in order to achieve a lower cost. Our Ti-Zn coil is imported from
Rheinzink company Germany, a high quality zinc coil. Ti-Zn alloy is better in rigidity and
durability than normal zinc alloy. The color of Ti-Zn turns different color in a natural process
as time goes by, while it attains great quality of anti corrosion and self-healing
characteristics.

PANEL WIDTH             700mm, 1000mm or customized width
PANEL LENGTH          2440mm, 3200mm, 4880mm, 5BOOmm or cut to size
PANEL THICKNESS    3mm. 4mm, 5mm. 6mm
TITANIUM-ZINC THICKNESS 0.5mm,0.7mm
CORE                           B1/A2
TREATMENT               Preweathered Zinc
COLORS                     Blue Grey or Graphite Grey

THE FAQ

Q1: Can we get a sample for reference?
Yes, 1-2 samples will be free but the express freight will be collected.

Q2: How long does it take to make a sample?
Normally, it takes 3-5 days to make it.

Q3: Do I need to pay deposit when contract is done?
Yes, 30% deposit within 3 working days is required. Our delivery time is based on the date that your
