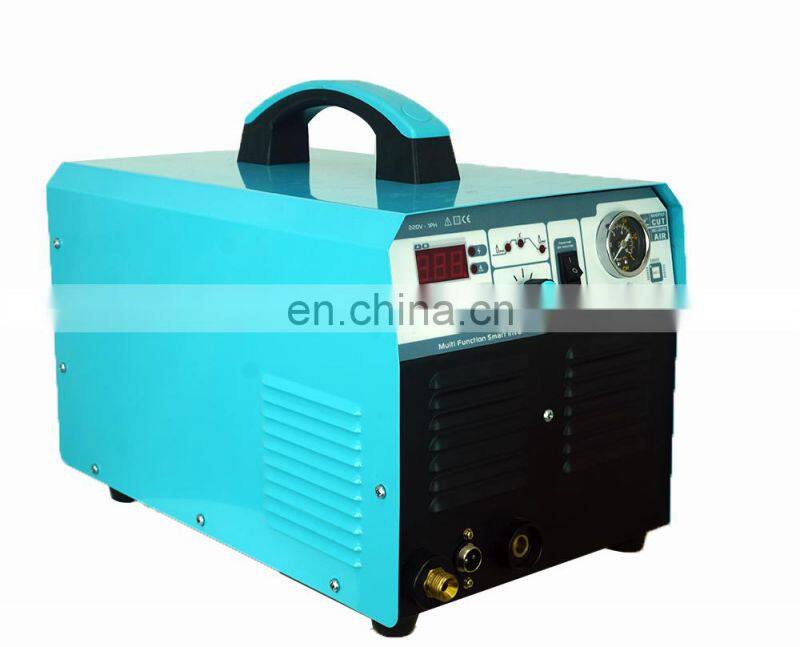

50a Plasma Cutter Cutting Machines Air High Frequency
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
dc Air Plasma Cutter With Air Compressor
-
Mini Plasma Cutter Cut 40 With Air Compressor
-
50a Plasma Cutter Cutting Machines Metal Igbt220v
-
Single Phase Plasma Cutter 110v Air Dryer
-
Plasma Cutter Compressorall in One Cutter for Welder Cut 40
-
Igbt Digital 220v 60hz Plasma Cutter Plasma Cutting Cut 40 Machine
Product Description
Product Description
Features
1. MOSFET inverter and PWM technology, energy-efficient and low noise.
2. Use compressed air as cutting gas source, cost-effective.
3. Air pressure and cutting current adjustable.
4. Easy operation, narrow cutting seams, smooth cutting performance and less deformation.
5. Circuit protection against over current, over voltage and over heat.
6. Plastic panel, digital display, compact design and easy to carry around.
7. Light industrial applications: production line work; plant maintenance; garage/job shops; fabrication; etc.
2. Use compressed air as cutting gas source, cost-effective.
3. Air pressure and cutting current adjustable.
4. Easy operation, narrow cutting seams, smooth cutting performance and less deformation.
5. Circuit protection against over current, over voltage and over heat.
6. Plastic panel, digital display, compact design and easy to carry around.
7. Light industrial applications: production line work; plant maintenance; garage/job shops; fabrication; etc.
Cheap MOSFET air plasma cut welding cutting machine CUT-40
Technical Specifications
ITEM | UNIT | CUT-30G | CUT-40G | CUT-50G |
Input Power Voltage | V | AC230V±10% | AC230V±10% | AC230V±10% |
Input Power Frequency | Hz | 50/60 | 50/60 | 50/60 |
Rated Input Capacity | KVA | 3.5 | 4.8 | 5.2 |
Output Current Range | A | 10-30 | 10-40 | 10-50 |
No-load Voltage | 250V | 230 | 236 | 245 |
Rated Duty Cycle | % | 60 | 60 | 60 |
Arc Start | Touch | Touch | Touch | |
Power Factor | cosΦ | 0.93 | 0.93 | 0.93 |
Air Pressure | mpa | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
Insulation Grade | B | B | B | |
Protection Grade | IP21S | IP21S | IP21S | |
Dimensions | MM | 420*160*310 | 420*160*310 | 420*160*310 |
weight | Kg | 7.4 | 7.6 | 7.8 |
Factory Introduction
Certifications
Packing & Delivery
More welders
FAQ
Q: What's your factory MOQ?
A: MMA Welder MOQ200 ,TIG/MIG/PLASMA CUT MOQ50,.Sample available.
Q: Can i customize my own Logo/carton/machine's color?
A: We are OEM factory ,LOGO and color design based on 300pcs, carton design based on 500pcs.
Q: I order goods for own use ,how to do it?
A: We are factory no retail.if you want to place a trial order,depending on inventory .For a small amount of goods, the shipping fees is really expensive,to be borne by the buyer.
Q: How long your lead time?
A: Generally,35-60Days.
