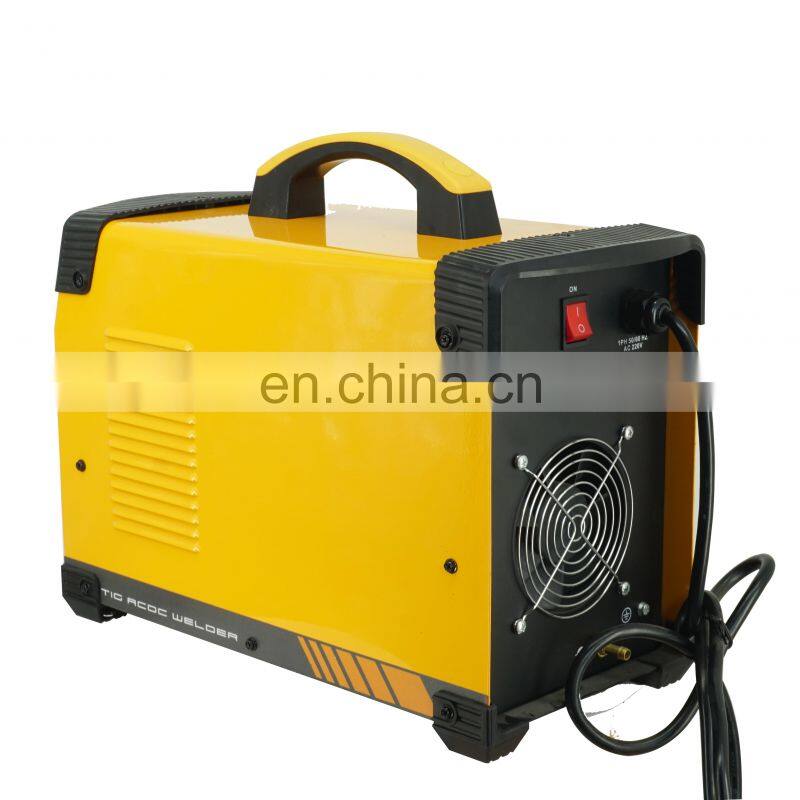

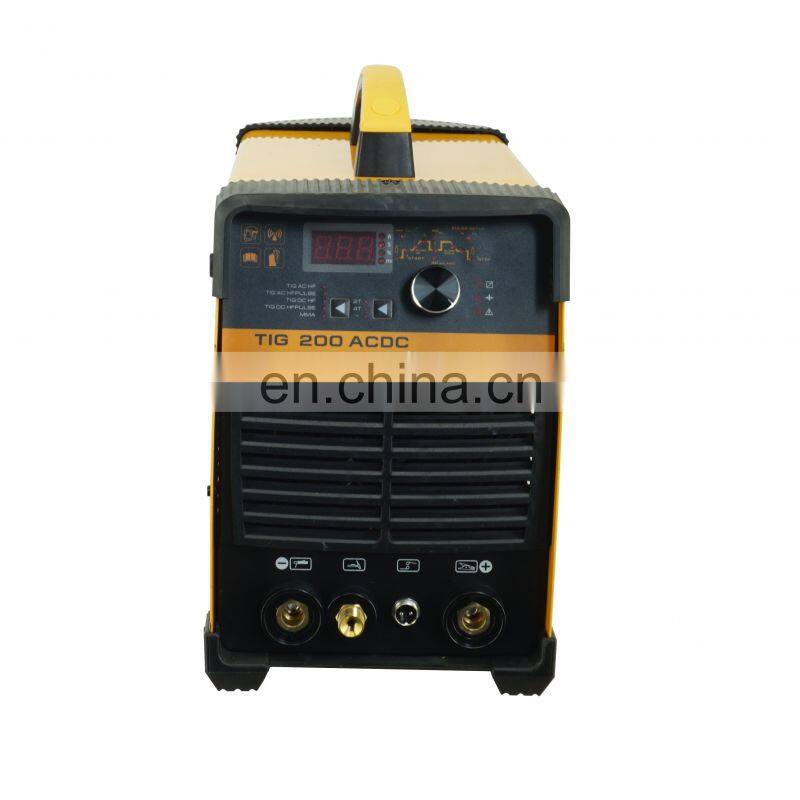

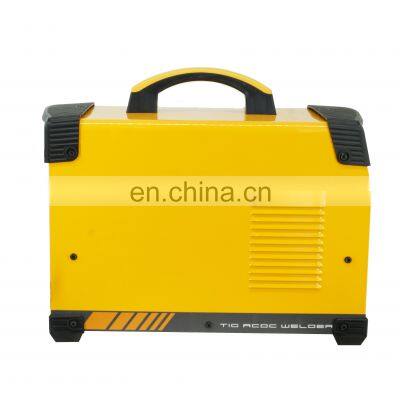

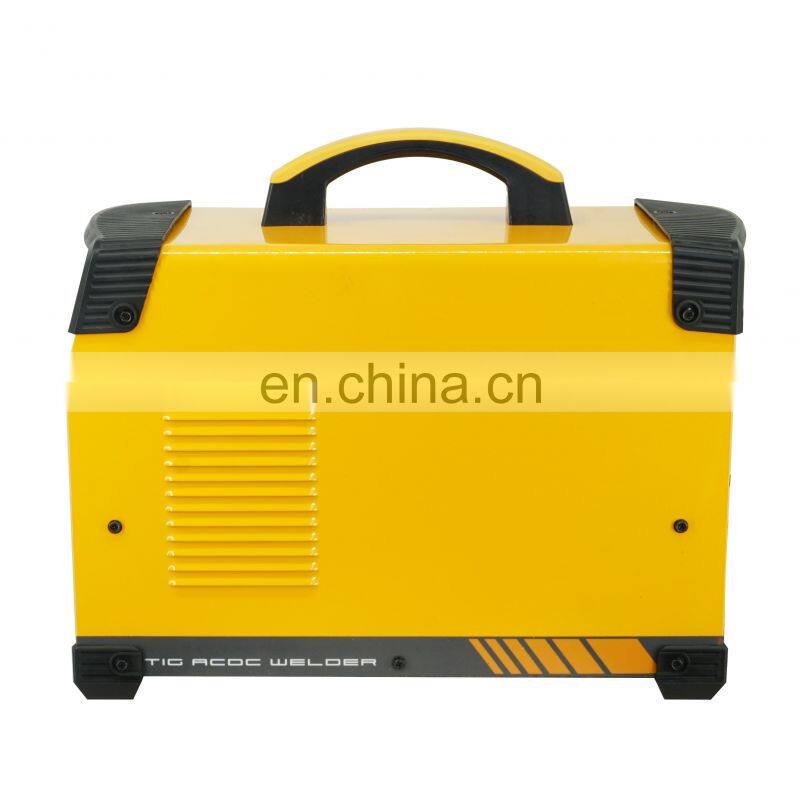

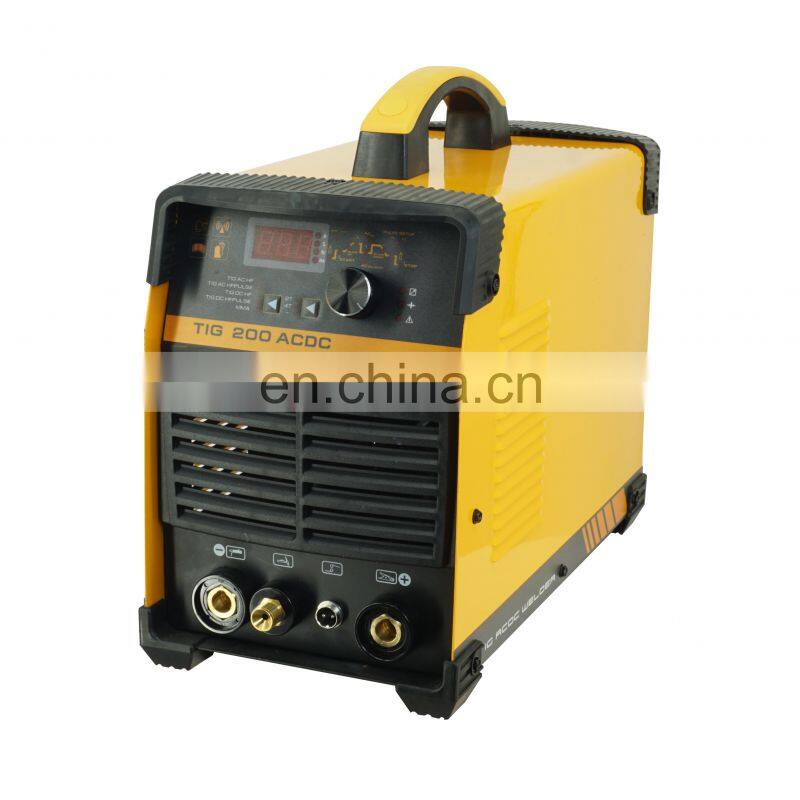

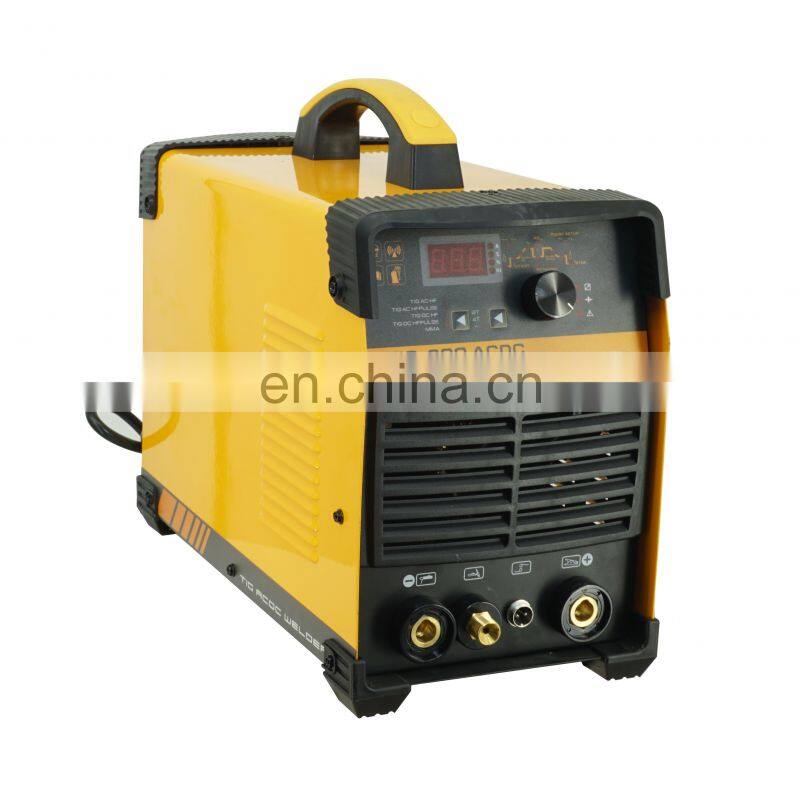

Hot Sales IGBT 220v Mma TIG-200P ACDC Wse 200 Inverter Acdc Tig Welding Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Inverter MMA/TIG/CUT CT-312 Multi-function Welding MachineNegotiableMOQ: 1 -
TIG 200P Digital Control Pulse ac dc Tig Welders Welding MachineNegotiableMOQ: 1
-
Mma-180ti High Quality Popular Equipo de SoldaduraNegotiableMOQ: 1
-
MMA-250D Energy-saving CE Approved Caretas Para SoldarNegotiableMOQ: 1
-
MMA-200 Single Phase Arc Welding Machine InverterNegotiableMOQ: 1
Product Description
WITH DIGITAL DISPLAY AUTOMATION ALUMINIUM TIG ACDC WELDING MACHINE
ITEM | TIG-200P ACDC |
Input Power Voltage V
|
AC220V
|
Input Power Frequency Hz
|
50/60
|
Input Current A
| 31 |
Rated Input Capacity KVA
|
7.1
|
Output Current Range( TIG) A
|
5-200
|
Output Current Range( MMA) A
|
10-160
|
Pre-flow Time S
|
0.1-10
|
Post-flow Time S
|
0.5-15
|
Down Slope S
| 0-15 |
Balance
|
15-85
|
Arc Starting
| HF |
AC Frequency
|
20-250
|
Pulse Frequency
|
0.2-200
|
No-load Voltage V
|
56
|
Rated Duty Cycle25%
|
200
|
Rated Duty Cycle60%
| 129 |
Rated Duty Cycle100%
|
100
|
Electrode Diameter mm |
1.5-4.0
|
Efficiency %
|
85
|
Protection Grade
|
IP22S
|
Insulation Class
|
B
|
Dimensions mm
|
387*192*315
|
Weight kg
|
10.45
|
