Home > Products > Escalator > 30 Degree Outdoor Economical 6000mm Height Escalator With VVVF Control System

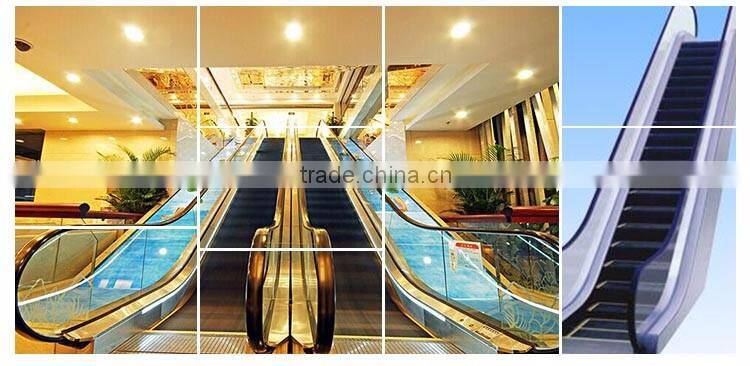

30 Degree Outdoor Economical 6000mm Height Escalator With VVVF Control System
- T/T Credit Card
You May Like
-
0.5m/s Rated Speed Commercial Escalator Moving Walk Price
-
Professional Electric Factory Price Used Commercial Escalators for Sale
-
Portable Automatic Escalator Step Cleaner Cleaning Machine
-
Factory Supply Commercial Shopping Mall Escalator Cost
-
High Quality Residential Commercial Shopping Mall Escalator Price
-
35 Degree 0.5m/s Modern Shopping Mall Escalator Cost
Product Description

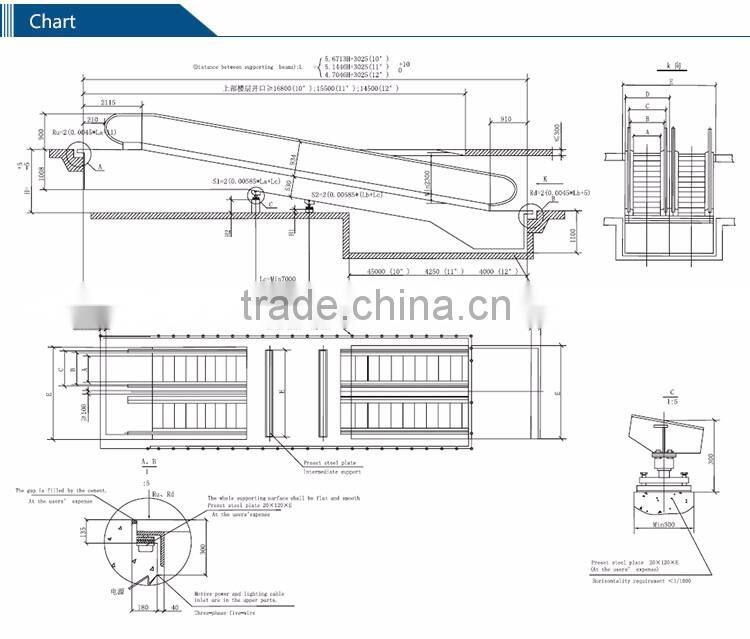

Specification
| Type | Step wide | Outside cladding | Construction layout opening width | Handrail spacer | Construction layout opening width | Construction layout opening width |
| A | B | C | D | E | F | |
| 600 | 600 | 1200 | 1260 | 838 | 1838 | 1260 |
| 800 | 800 | 1400 | 1460 | 1038 | 2038 | 1460 |
| 1000 | 1000 | 1600 | 1660 | 1238 | 2238 | 1660 |
| 600 | |||||||
| Type | 3000 | 3500 | 4000 | 4500 | 5000 | 5500 | 6000 |
| Vertical risw(mm) | 57 | 60 | 64 | 68 | 71 | 75 | 79 |
| Net weight(KN) | 46 | 49 | 52 | 56 | 59 | 62 | 65 |
| Reactions R1(KN) | 41 | 44 | 47 | 50 | 53 | 56 | 59 |
| Reactions R2(KN) | 5.5 | 8 | |||||
| Motor pauer(KW) | 2750 | 2780 | 2810 | 2830 | 2840 | 2860 | 2870 |
| Transport dimensions(H) | 10900 | 11890 | 12889 | 13870 | 14860 | 15860 | 16850 |
| Transport dimensions(L) | 800 | ||||||
| Type | 3000 | 3500 | 4000 | 4500 | 5000 | 5500 | 6000 |
| Vertical risw(mm) | 59 | 63 | 67 | 71 | 74 | 82 | 86 |
| Net weight(KN) | 52 | 56 | 60 | 64 | 64 | 74 | 78 |
| Reactions R1(KN) | 47 | 50 | 54 | 57 | 57 | 66 | 69 |
| Reactions R2(KN) | 5.5 | 8 | 11 | ||||
| Motor pauer(KW) | 2750 | 2780 | 2810 | 2830 | 2840 | 2860 | 2870 |
| Transport dimensions(H) | 10900 | 11890 | 12880 | 13870 | 14860 | 15860 | 16850 |
| Transport dimensions(L) | 1000 | ||||||
| Type | 3000 | 3500 | 4000 | 4500 | 5000 | 5500 | 6000 |
| Vertical risw(mm) | 63 | 67 | 71 | 75 | 83 | 87 | 92 |
| Net weight(KN) | 59 | 64 | 68 | 73 | 79 | 84 | 88 |
| Reactions R1(KN) | 53 | 57 | 61 | 65 | 71 | 75 | 79 |
| Reactions R2(KN) | 5.5 | 8 | 11 | ||||
| Motor pauer(KW | 2750 | 2780 | 2810 | 2830 | 2840 | 2860 | 2870 |
| Transport dimensions(H) | 10900 | 11890 | 12880 | 13870 | 14860 | 15860 | 16850 |
Standard Features
1.Manual oiling
2.Built-in chain roller step
3.Inclined handrail
4.Demarcation lamp
5.Handrail inlet
6.Table type traction machine
Optional Features
1.Running direction indication
2.Handrail illumination
3.EHC colorful handrail
4.VVVF controller
5.Skirt panel brush
6.Automatic start & stop
7.Automatic oiling
8.Step lights
1. Price
Re: please send us inquiry from , we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
