Various Sizes Electric Elevator Geared Traction Motor
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Metal Material VVVF Drive Elevator Geared Motor Traction Machine
-
Wholesale Dependable Elevator Rope Attachment Stainless Steel Wire 10mm
-
Best Selling Most Effective T45/A T50/A t Type Elevator Guide Rail
-
Stainless Steel Material Cop Lop Elevator Button Panel Price With LCD Display
-
China Manufacturer 9mm T45/A Elevator Guide Rail Size
-
Elevator Lift Safety Components Progressive Safety Gear Machine
Product Description
Product Description

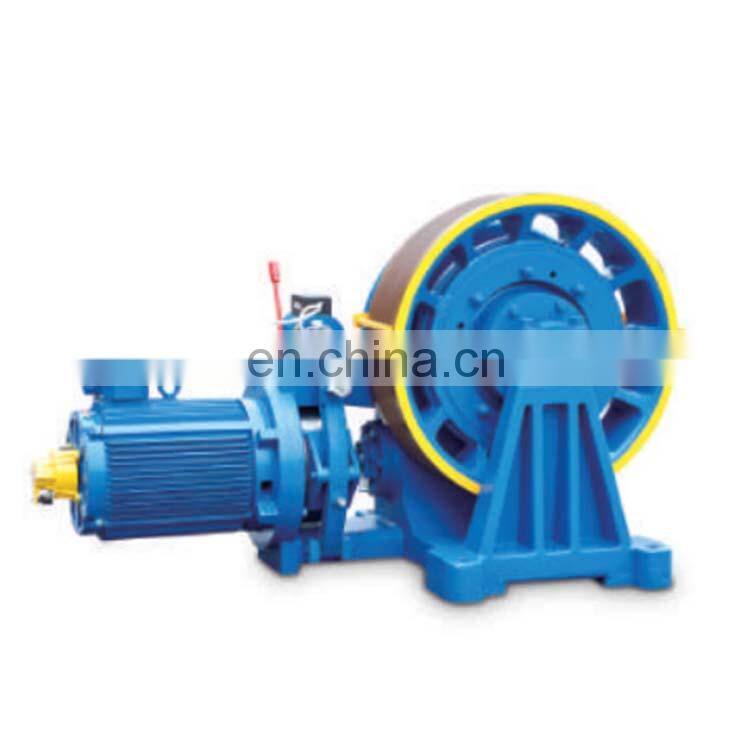

Elevator Geared Traction Machine
General Information for the Elevator Motor
1. Type: VVVF asynchronous and geared
2. Traction Sheave Location: Optional for right or left
3. Load: 2000KG to 2500KG
4. Speed: 0.5m/s to 2.0m/s
5. Application: For new elevator or elevator modernization
Features for Geared VVVF Asynchronous Elevator Traction Machine
1. High efficiency
2. Stable and low noise
3. High static load capacity
Model | NV41G |
Speed(m/s) | 0.5 - 2 |
Weight | 730kg |
Suspension | 1:1 |
Max.Static Load | 7500kg |
Control | VVVF |
Brake | DC110V 2A |

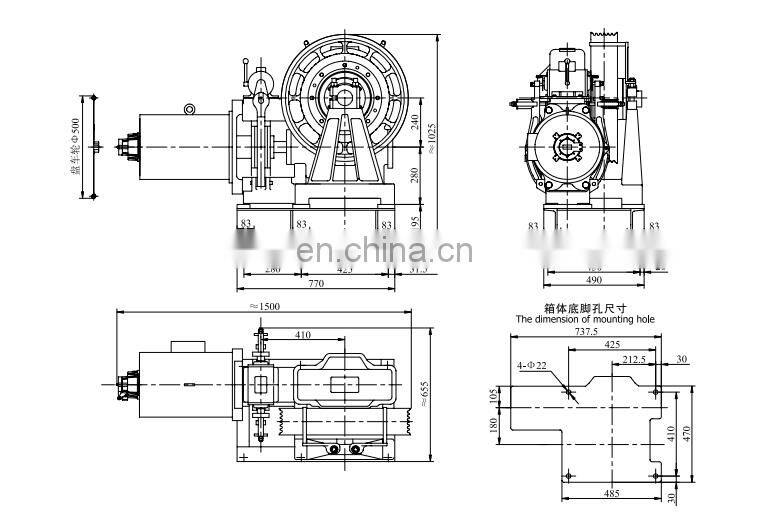

Details Images
Model | Load (kg) | Lift Speed (m/s) | Ratio | Sheave Diam (mm) | Rope Sheave (mm) | Motor Power (kW) | Pole |
NV41G | 800 | 1.6 | 59:2 | Φ620 | 5×Φ13×20 | 12.5 | 4 |
NV41G | 800 | 1.75 | 55:2 | Φ620 | 5×Φ13×20 | 15 | 4 |
NV41G | 800 | 2 | 49:2 | Φ620 | 6×Φ13×20 | 18.5 | 4 |
NV41G | 1000 | 1 | 49:1 | Φ620 | 5×Φ13×20 | 11 | 4 |
NV41G | 1000 | 1.6 | 59:2 | Φ620 | 6×Φ13×20 | 18.5 | 4 |
NV41G | 1000 | 1.75 | 55:2 | Φ620 | 6×Φ13×20 | 18.5 | 4 |
NV41G | 1000 | 2 | 49:2 | Φ620 | 6×Φ13×20 | 18.5 | 4 |
NV41G | 1150 | 1 | 49:1 | Φ620 | 6×Φ13×20 | 15 | 4 |
NV41G | 1150 | 1.6 | 59:2 | Φ620 | 6×Φ13×20 | 18.5 | 4 |
NV41G | 1150 | 1.75 | 55:2 | Φ620 | 6×Φ13×20 | 18.5 | 4 |
NV41G | 1150 | 2 | 49:2 | Φ620 | 6×Φ13×20 | 22 | 4 |

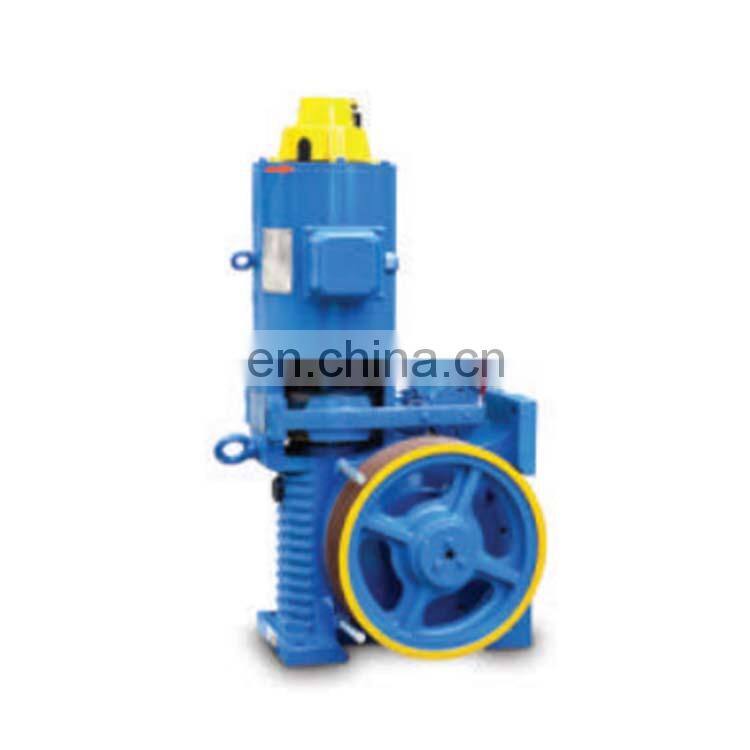

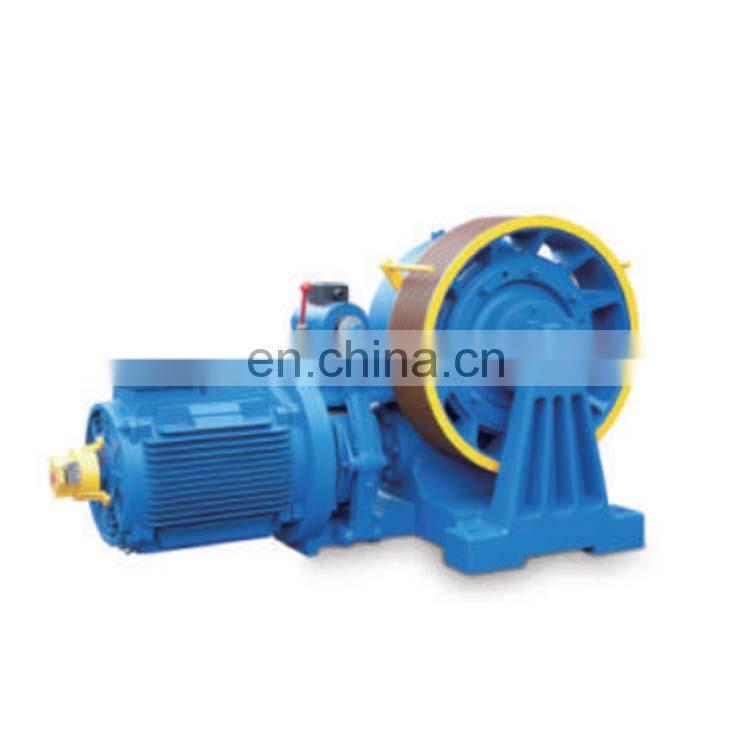

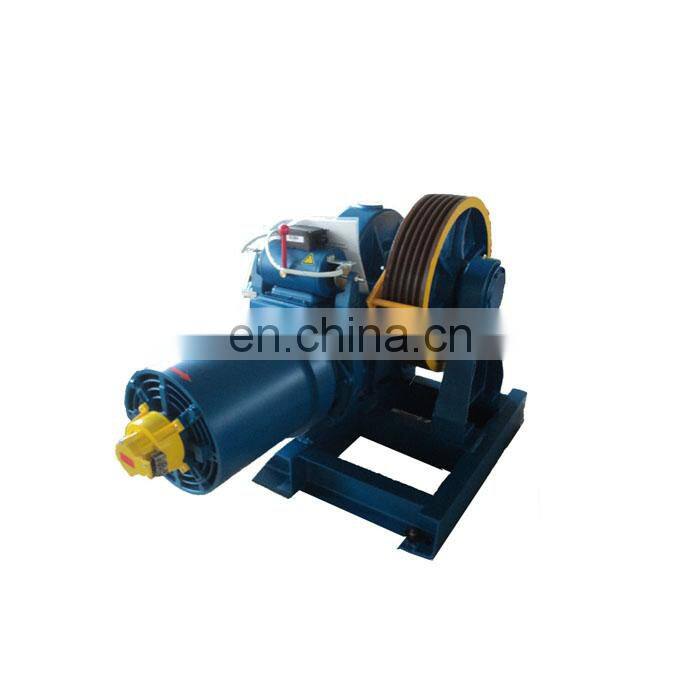

Different Models
