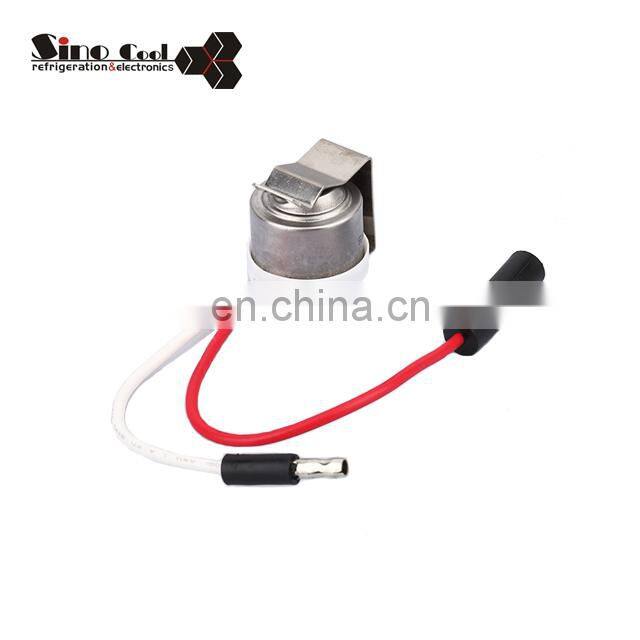

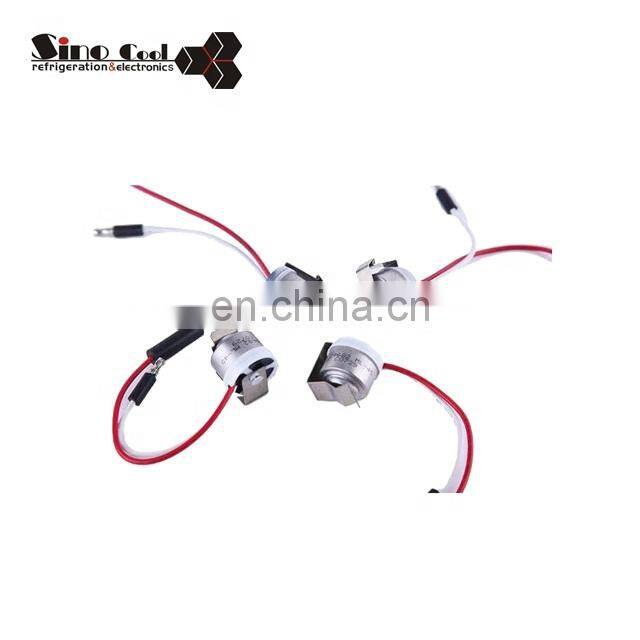

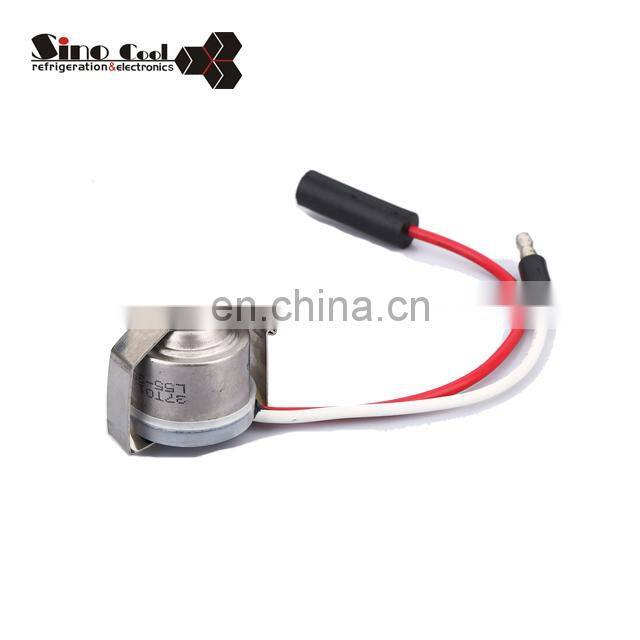

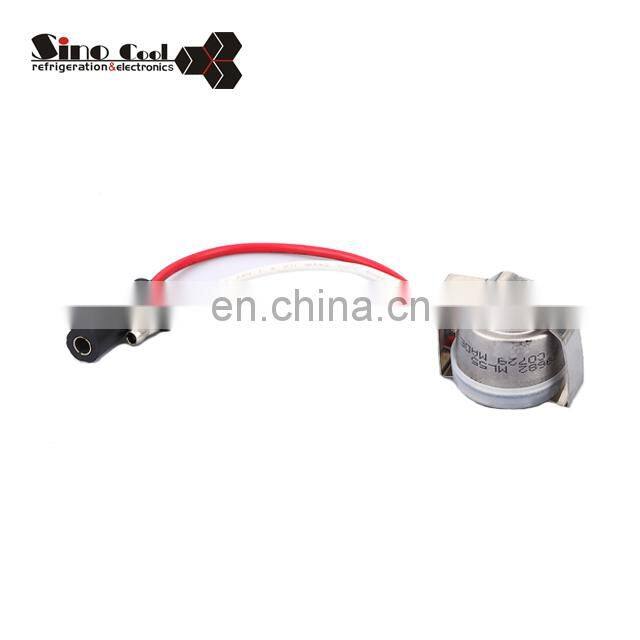

ML70 Bimetal Defrost Thermostat Replacement Part 37T01PL002 12488 Good Price
- T/T Credit Card
You May Like
-
ML60 Bimetal Defrost Thermostat Replacement Part PL002 ML60 03286 37T01 Good Price
-
ML55 Bimetal Defrost Thermostat Replacement Part 37T01PL-001 24170 KSD-1004 Good Price
-
ML35 Bimetal Defrost Thermostat Replacement Part 37T01 Good Price
-
K50-P1126 RANCO Thermostat Defrost Refrigeration Accessory Mini Fridge Thermostat
-
K50 Series Refrigeration Parts International Capillary Refrigerator Room HVAC Defrost RANCO Thermostat K50-P1125
-
K50-P1117(VF3) RANCO Thermostat K50 Series Refrigerator Refrigeration Parts Capillary Refrigerator Room HVAC Good Price
Product Description

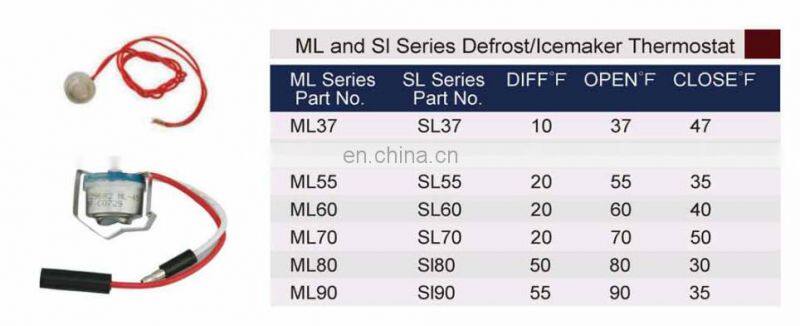

ltem NO | ML70 |
Use | Defrost/Temperature control/Protection |
Appliance | refrigerators, freezer |
Reset type | Automatic |
Base material | bakelite |
Amperage | 3A/6A/10A/25A |
Differential | 20°C |
OPEN | 70℃ |
close | 50℃ |
Tolerance | Refer to the regulation |
Cold-resistant Temperature | -30°C |
Limit of the tolerance(OFF) | ±3°C |
Limit of the tolerance(ON) | ±3°C |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 10MW. |
Resistance Between Terminals | Below 50mW |
Temperature characteristics | Normal close, Normal open |
Maximum ambient temperature | 90°C |
Diameter of bimetal disc | F12.8mm(1/2″) |
Line | Color: white/brown/yellow/blue Length: customized |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
