NEWEST EKEN T8 Video Doorbell HD Wireless Wifi Camera Video Intercom Doorbell

Specifications
Main control (CPU) Ingenic T31ZL
RAM 64Mb flash
Sensor (sensor) 1080p GC2053 CMOS sensor
Lens 120° wide-angle lens
Sensor performance: Support automatic white balance, automatic gain control, automatic backlight compensation
Signal to noise ratio ≥39dB
Minimum illumination 0.8Lux/F1.4 (color mode), 0.3Lux/F1.4 (black and white mode)

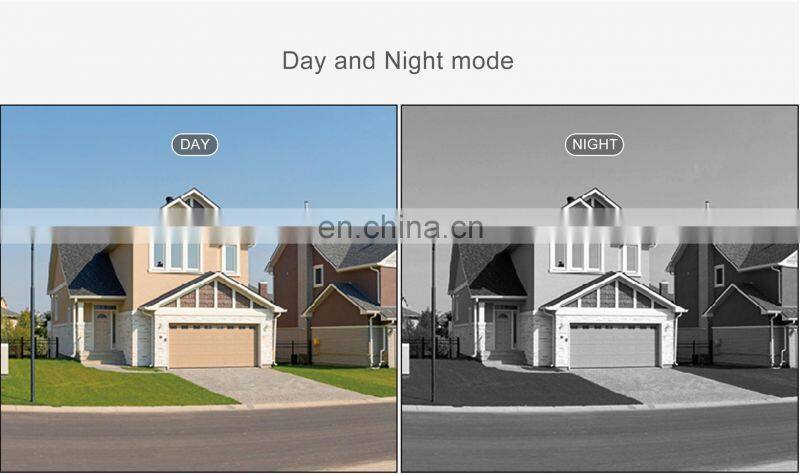

Night vision, automatic switching of dual filters, 6pcs 850nmΦ28Mil high-power infrared lamps
The best night vision distance is 3 meters, and the farthest distance is 20 meters.
Motion detection "PIR motion detection, the sensitivity can be adjusted to detect the distance (trigger immediately within the effective distance)
The best 2 meters, the farthest 4 meters (affected by ambient temperature and light)"
Video format MP4 (H.264)
Video size/frame rate 1080P/20fps
Recording method 1. Motion detection recording; 2. Press key to trigger recording; 3. Preview recording
Video recording duration "1, when motion detection is activated or when you call the doorbell, the doorbell will automatically enter the sleep mode after 15 seconds of video recording at the same time.
After entering the sleep mode, start motion detection or press the doorbell, and then record 15 seconds of video.
2. Each time the mobile APP enters the preview video, the duration is limited to 3 minutes. Stop recording after 3 minutes. "
Battery type/capacity 18650 cells 2600mAH*2=5200mAH
Battery discharge time "Two 18650 batteries dormant standby for 2 months
Recording 30 15-second videos per day can last 45 days"
Network protocol TCP/IP/HTTP/TCP/UDP/DHCP/DNS/DDNS/NTP/RTP/P2P
WIFI connection 2.4GHz wifi, support (802.11 b/g/n)

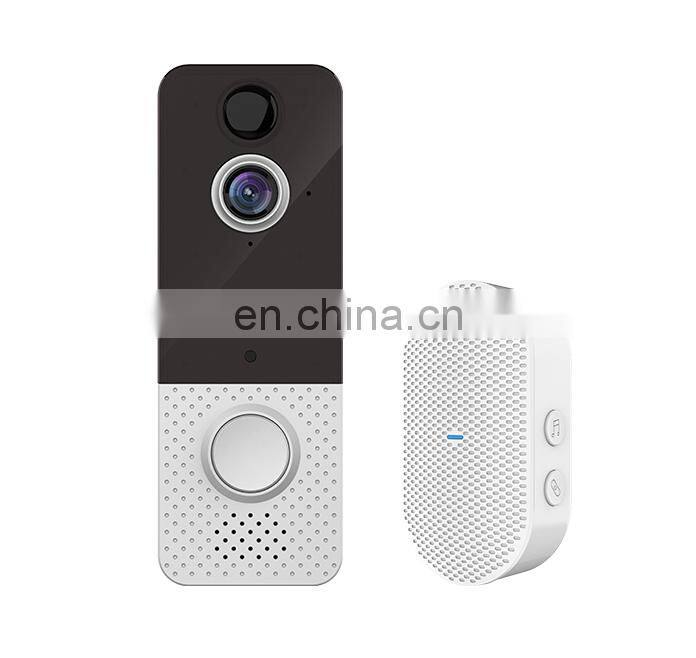

Dingdong Support RF 433MHZ Dingdong
Storage "Support cloud storage function (hardware without TF card function)
7-day recurring free cloud storage, the service is valid for 90 days, and cloud storage needs to be paid after expiration. "
Working voltage 3.7V 18650 lithium battery
Working current Start working current 260mA (milliamps), sleep standby current 1.7mA (microamps)
USB charging voltage DC 5V / 1.5A
Storage temperature (℃) (0℃~50℃)
Operating temperature (℃) Operating temperature: -10~70℃, working humidity <95%
Wake-up method 1. Doorbell button wake-up, 2. PIR detection wake-up, 3. Mobile phone active wake-up
APP access doorbell rules "1 master account + 8 sharing accounts = 9 users can connect to the doorbell
Only 3 users can preview the screen at the same time at a time, and only one user can talk to the doorbell at a time"
Purpose Guests can make video and voice calls when visiting, and make short-term video recording. The owner can know the information of the visitor without opening the door.
Features Wireless connection, ultra-low power consumption, remote active wake-up, support for multiple accounts to watch online at the same time
