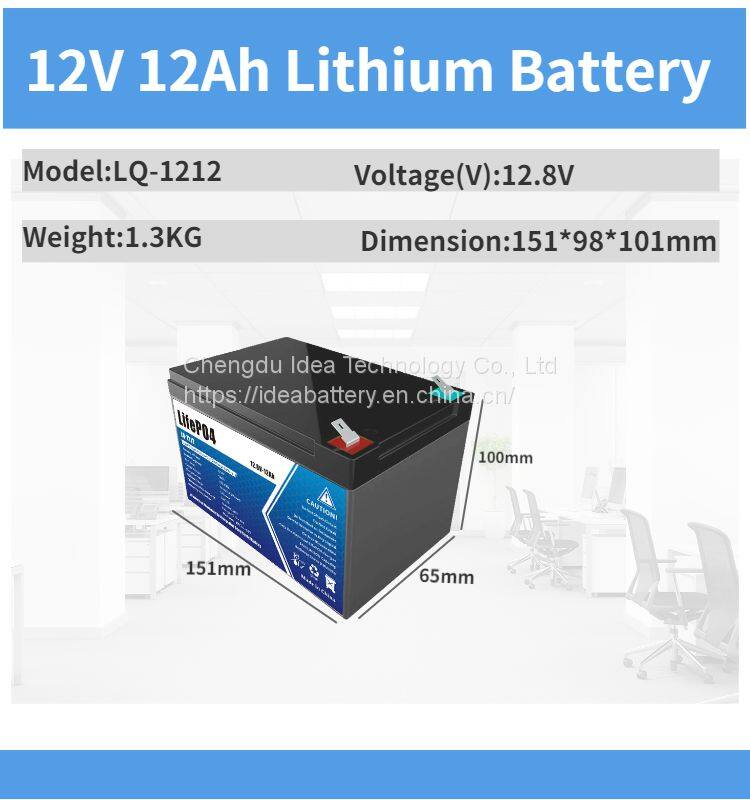

LQ-1212 Lithium Iron Phosphate battery
SPECIFICATIONS
Part No.： | LQ-1212 |
Spec | 12.8V12Ah |

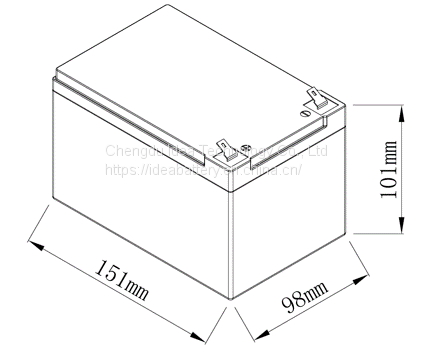

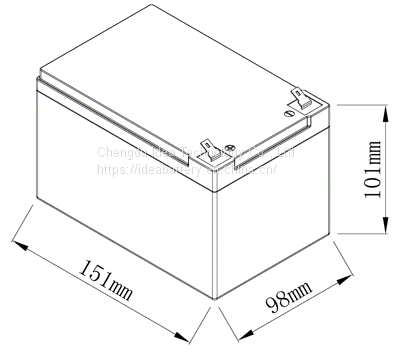

Dimension(±2mm) | 151*98*101mm |
Weight(Appro)(kg)： | 1.3 |
Normal Voltage(V) | 12.8V |
Normal Capacity(Ah) | 12Ah |
Terminal(mm) | T2 |
Max charge current(A) | 12A |
Max continue discharge current(A) | 20A |
Max peak discharge current(≦10S)(A) | 40A |
Floating charge voltage(V) | 13.6~13.8 |
Max load power(W)： | 200 |
End voltage of discharge(V)： | 10.8 |
Cycle life(25℃,0.5C,100%DOD) | >2000 |
Combination mode： | 32700-4S2P |
Protection： | IP65 |
Certificate： | UN38.3/MSDS |
Temperature range of charge(℃)： | 0~+50 |
Discharge temperature(℃)： | -20~+60 |
Operation temperature: | <95%R.H(non-condensing) |
(Note：Blue tooth can be available for the capacity over 50Ah if needed;no pile up over 10 layers, and keep face up) | |
Features:
>2000 cycles @100% DoD for effectively lower total cost of ownership.
Low maintenance batteries with stable chemistry. Easily monitor state of charge (SoC) of smart models.
Battery Management Systems (BMS) are incorporated against abuse.
