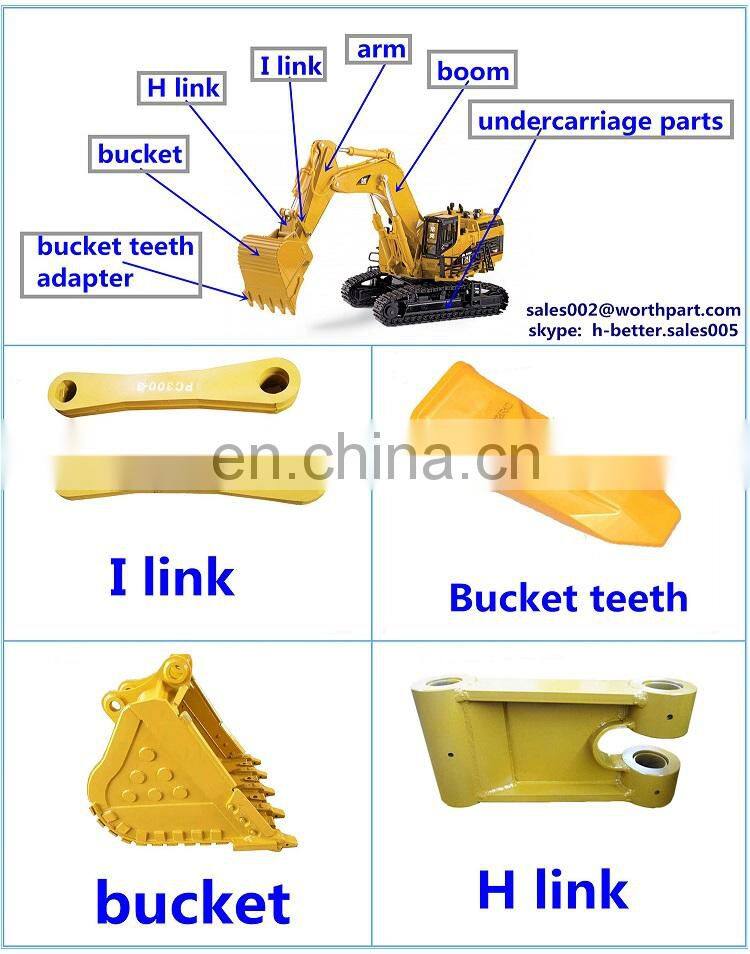

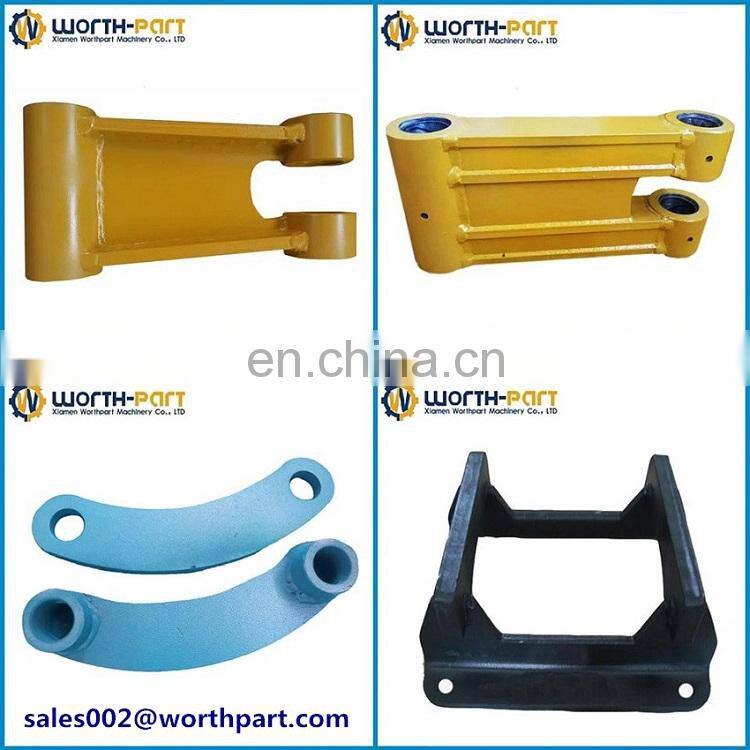

E200B, E320 Excavator Bucket Parts Bucket Link/H Link

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

HOT SALES

Company Information

Packaging & Shipping

Part number

I link	Size		centerline spacing(mm)	Thickness	Length	Width	Weight
DH150	65	65	470	25	605	130	20
DH220	70	80	610	25	770	145	29
DH220	70.0	80	610	30	770	145	35
DH300-5	80	90	660	30	840	155	48
DH300-5	80	90	660	40	840	155	60
DH370	90	100	730	30	920	165	51
DH370	90	100	730	40	920	165	63
DH450	100.0	110	755	40	955	175	64
DH500	100.0	110	755	50	955	175	80
DH55	45	50	345	18	485	115	10
DH55	45	50	345	20	465	115	11
DH80	45	55	400	18	525	120	11.5
DH80	45	55	400	20	525	120	13
E200B/320	70	80	590	25	750	145	29
E200B/320	70	80	590	30	750	145	35
E307	45	55	420	20	545	120	13
E312	60	60	520	20	650	125	17
E312	60	60	520	25	650	125	20
E320D	70	80	645	30	805	145	37
E325	70.0	90	690	30	870	155	60
E330	70.0	90	690	30	870	155	60
E330	70	90	690	40		155
E330D	70	100	670	30	860	165	60
E330D	70	100	670	40	860	165	80
EC210	70	80	665	25	835	145	32
EC210	70	80	665	30	835	145	37
EC240	80	90	665	25	845	155	30
EC240	80	90	665	30	845	155	35
EC290	90	90	650	30	830	155	40
EC290	90	90	650	40	830	155	60
EC360	100	100	730	30	920	165	45
EC360	100	100	730	40	920	165	60
EC460	100	110	755	30	955	175	55
EC460	100	110	755	40	955	175	80
EX120	65	65	520	20	655	130	17
EX120	65	65	520	25	655	130	20
EX200-2	80	80	610	25	770	145	29
EX200-2	80	80	610	30	770	145	35
EX200-5	70	80	610	25	770	145	29
EX200-5	70	80	610	30	770	145	35
EX200 original	70	80	610	25	770	145
EX200 original	70	80	610	30	770	145
EX300	90	100	730	30	920	165	48
EX300	90	100	730	40	920	165	60
EX450	100	110	760	40	960	175	80
EX450	100.0	110	760	50	960	175	90
EX60-2	45	55	355	20	480	120	11
EX60-5	50	55	417	20	542	120	13
EX70	50	55	395	20	520	120	13
HD250	55.0	65	415	25	550	130	17
HD450	55.0	65	500	20	635	130
HD450	55.0	65	500	25	635	130	20
LS2600FJ2	60.0	65	485	25	620	130	20
LS260FJ2	60.0	60	495	25	625	125	20
LS265FJ2	60.0	65	495	25	630	130	20
LS2800FJ2	70.0	80	600	25	760	145	29
PC120	60.0	65	480	20	615	130	17
PC120	60.0	65	480	25	615	130	20
PC120 original	60.0	65	480	20	615	130
PC120 original	60.0	65	480	25	615	130	23
PC130	60.0	65	480	20	615	130
PC130	60.0	65	480	25	615	130	22
PC200-3/5=R200	70.0	70	630	25	780	135	29
PC200-3/5=R200	70.0	70	630	30	780	135	35
PC220-6/7	70.0	80	630	25	790	145	29
PC220-6/7	70.0	80	630	30	790	145	35
PC300/360	90.0	90	730	30	910	155	48
PC300/360	90.0	90	730	40	910	155	60
PC35	35.0	45	230	20	345	110	10
PC400	100.0	100	720	30	910	165	50
PC400	100.0	100	720	40	910	165	60
PC240=PC200-8	80.0	80	580	25	750	145	28
PC240=PC200-8	80.0	80	580	30	750	145	34
PC55	45.0	45	325	20	440	110	10
PC60	50.0	60	405	18	535	125	12
PC60	50.0	60	405	20	535	125	13
R130/150	65.0	70	500	25	640	135	20
R305	80.0	80	670	30	840	145	50
R305	80.0	80	670	40	840	145	60
R335	90.0	90	730	30	910	155	51
R335	90.0	90	730	40	910	155	60
R60	45.0	45	340	18	475	110	10
R60	45.0	45	340	20	455	110	11
SH120	65.0	65	530	20	665	130	17
SH120	65.0	65	530	25	665	130	20
SH120A3	65.0	70	510	25	650	135	20
SH200	75.0	85	630	25	795	150	29
SH200	75.0	85	630	30	795	150	35
SH280	70.0	80	590	25	750	145	28
SH280	70.0	80	590	30	750	145	34
SH350	90.0	105	680	35	875	170	60
SH60	50.0	55	400	20	525	120	11
SK07N2	70.0	80	635	20	785	145	20
SK120	60.0	60	500	20	630	125	17
SK120	60.0	60	500	25	630	125	21
SK200	70.0	80	630	25	790	145	29
SK200	70.0	80	630	30	790	145	35
SK220	80.0	90	635	30	815	155	40
SK220	80.0	90	635	40	815	155	57
SK230	70.0	80	695	30	865	145	40
SK230	70	80	695	40	865	145	57
SK250/260	70.0	80	700	30	870	145	50
SK250/260	70.0	80	700	40	870	145	50
SK350	80.0	90	690	30	870	155	50
SK350	80.0	90	690	40	870	155	60
SK75				20
SK60	50.0	55	415	20	540	120	13
YC35	40.0	40	250	18	360	105	10
YC35	40.0	40	250	20	360	105	11
YC85	50.0	55	395	20	520	120	13
YC85	50.0	55	395	25	520	120	15
ZAX200	71.0	80	610	25	770	145	29
ZAX200	71.0	80	610	30	770	145	35
ZAX230	80.0	90	620	25	800	155
ZAX230	80.0	90	620	30	800	155	30
ZAX230	80.0	90	620	40		155	40
ZAX330	90.0	100	730	30	920	165	48
ZAX330	90.0	100	730	40	920	165	60
ZAX360	90.0	100	730	40	920	165	60
ZAX450	100.0	110	760	30	960	175
ZAX450	110.0	110	760	40	960	175	68
ZAX70	50.0	55	415	20	540	120	13
