Product Description
Product Description
Introduction:

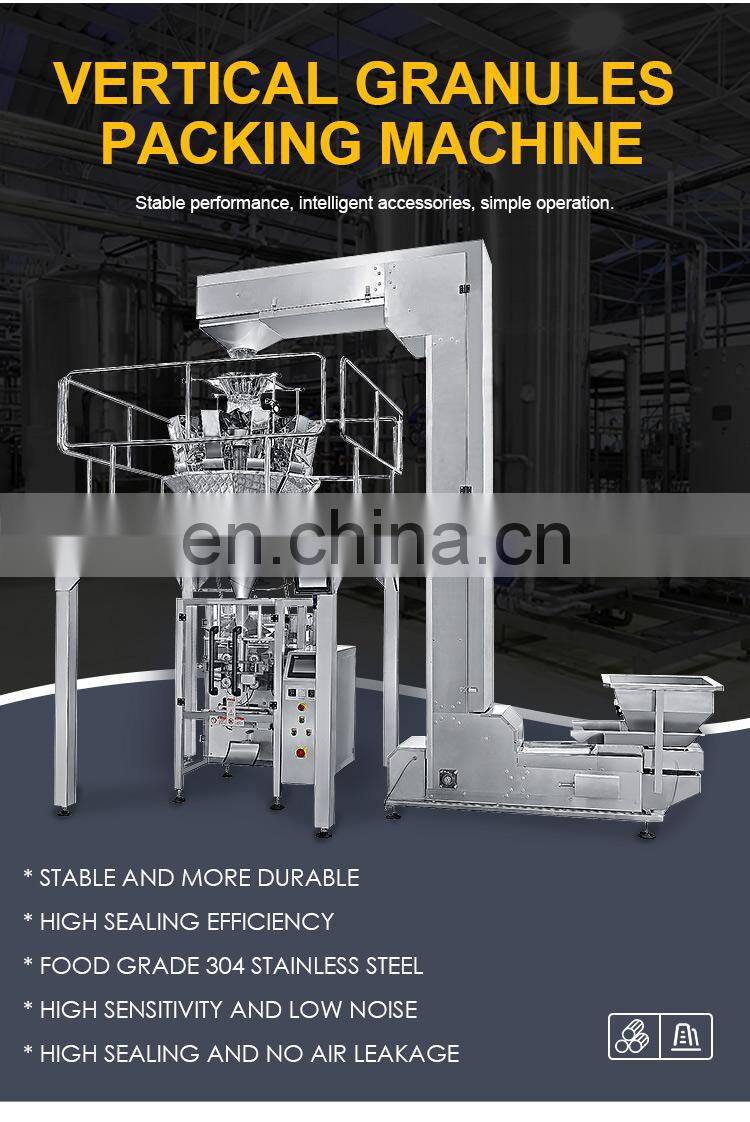

The master control circuit of our vertical granules packing machine adopts imported PLC microcomputer with man-machine interface and frequency control,making setting parameters (to adjust bag length and width, packing speed,cutting position) convenient and quick and operation intuitive. Full implement the humanizes automatic operation
Application:
Suitable for packaging many different kinds of products; such as puffy food, shrimp roll, peanut, popcorn, cornmeal, dried fruit, seed, small hardware,dumplings, vegetable, fruits and sugar etc.which shape is roll, slice and granule.
Features:

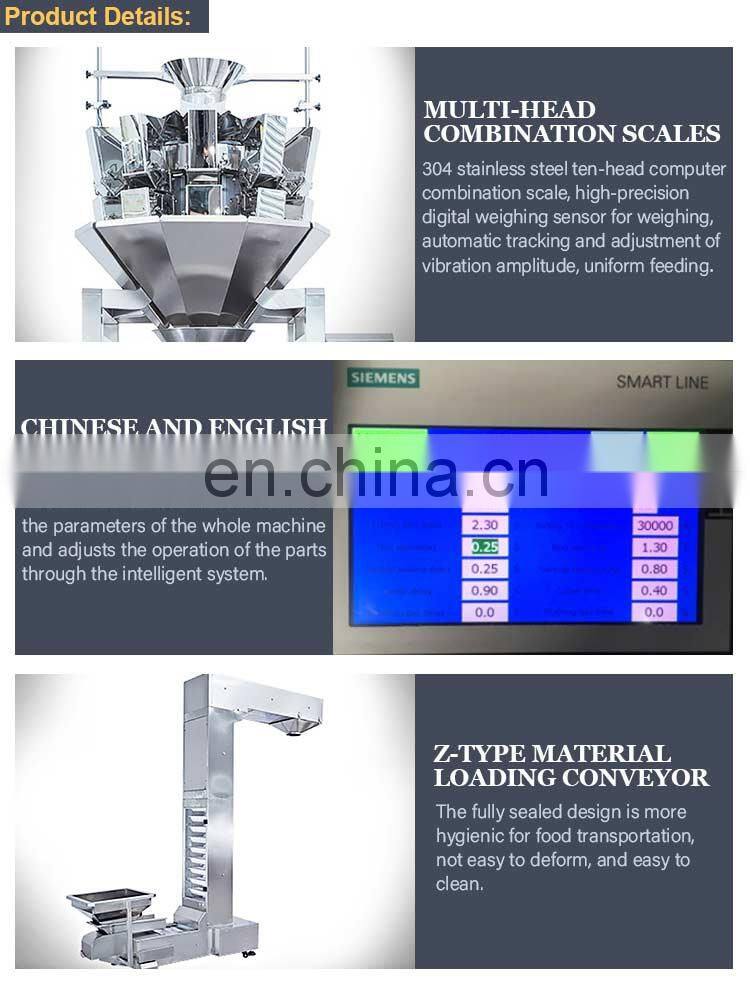

1. PLC control with stable reliable high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.

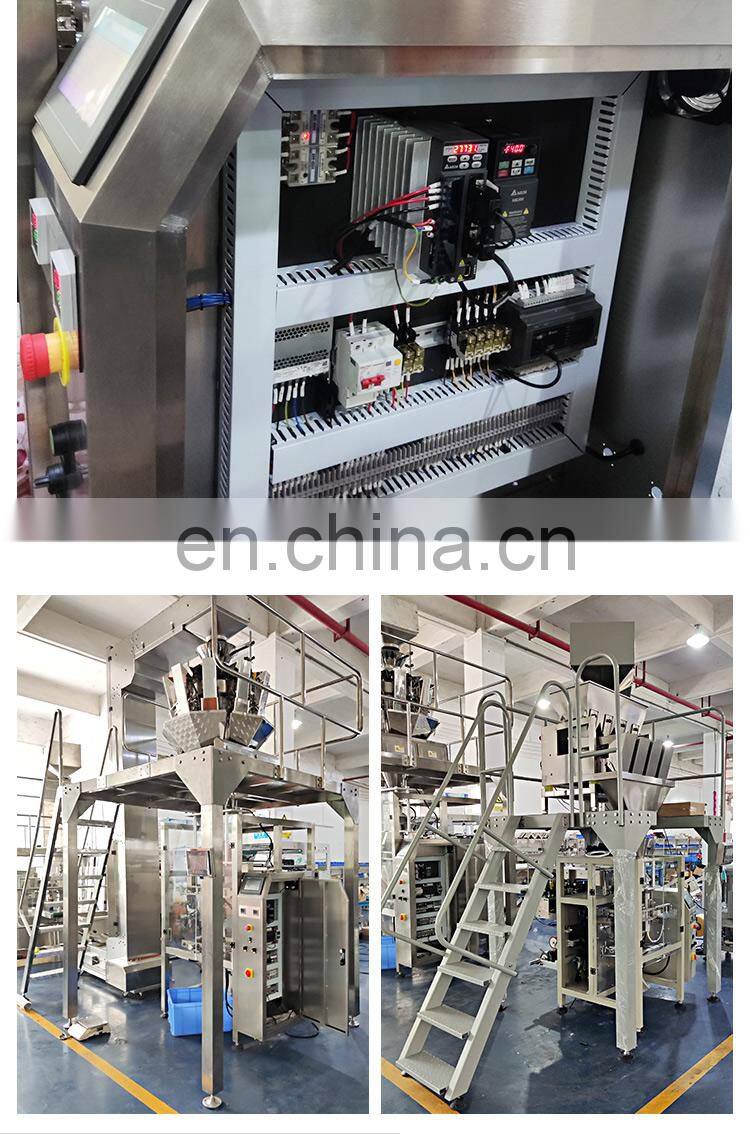

2. Separate circuit boxes for pneumatic control and power control. Noise is low and the circuit is more stable.

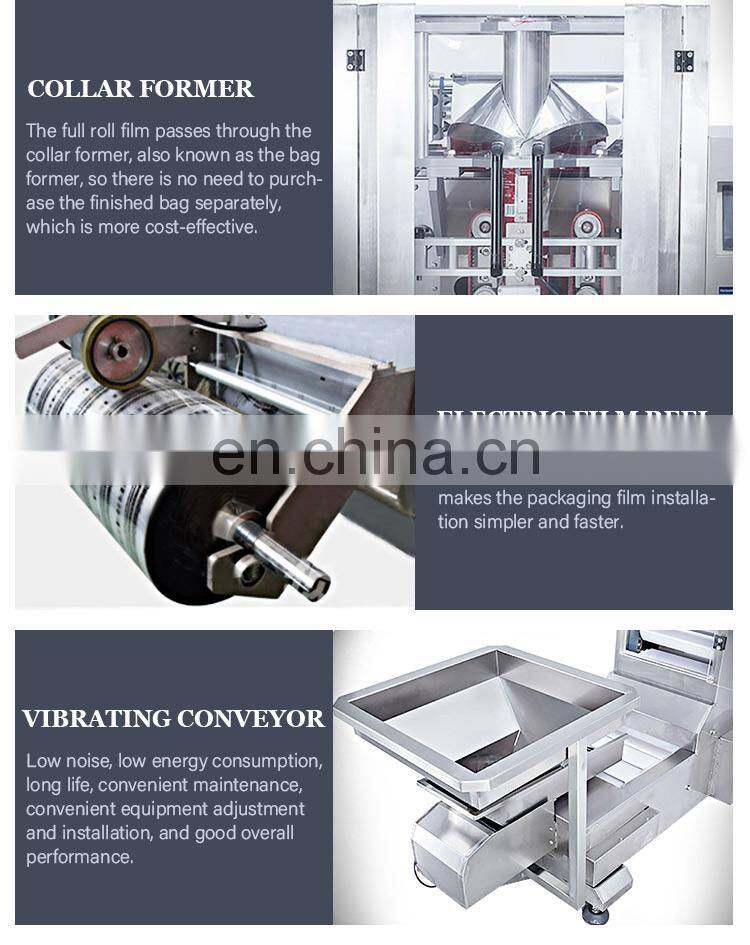

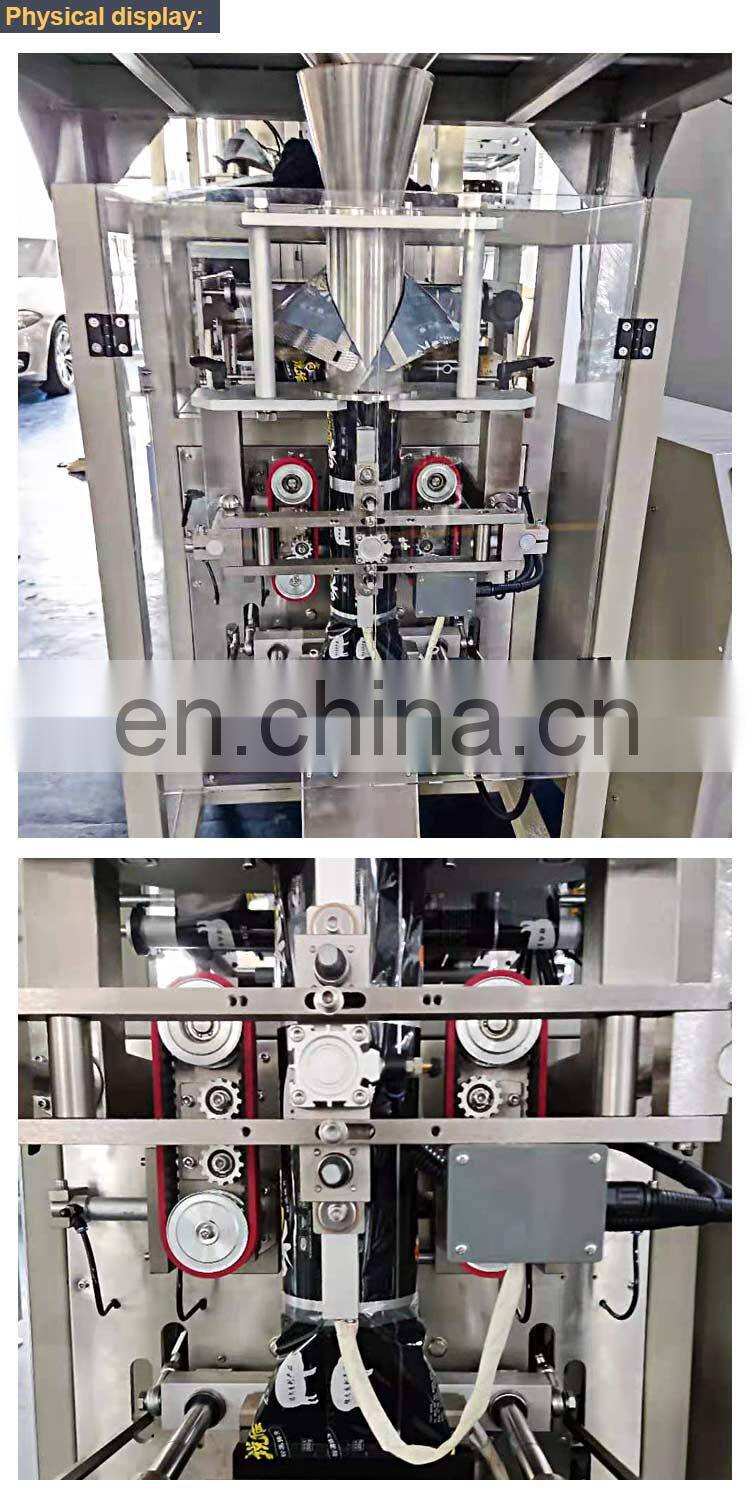

3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple
6. Close down type mechanism , defending powder into inside of machine.
Product Paramenters
Paramater: | ||||||||||
Model | GD-420 | GD-520/GD-520T | GD-720 | GD-820 | GD-920 | |||||
Packing speed | 10-50bag/min | 10-50bag/min | 10-40bag/min | 10-40bag/min | 10-40bag/min | |||||
Bag-making size | (L)80-300mm(W)80-200mm | (L)80-350mm(W)80-250mm | (L)100-500mm(W)160-350mm | (L)100-500mm(W)200-400mm | (L)100-500mm(W)220-450mm | |||||

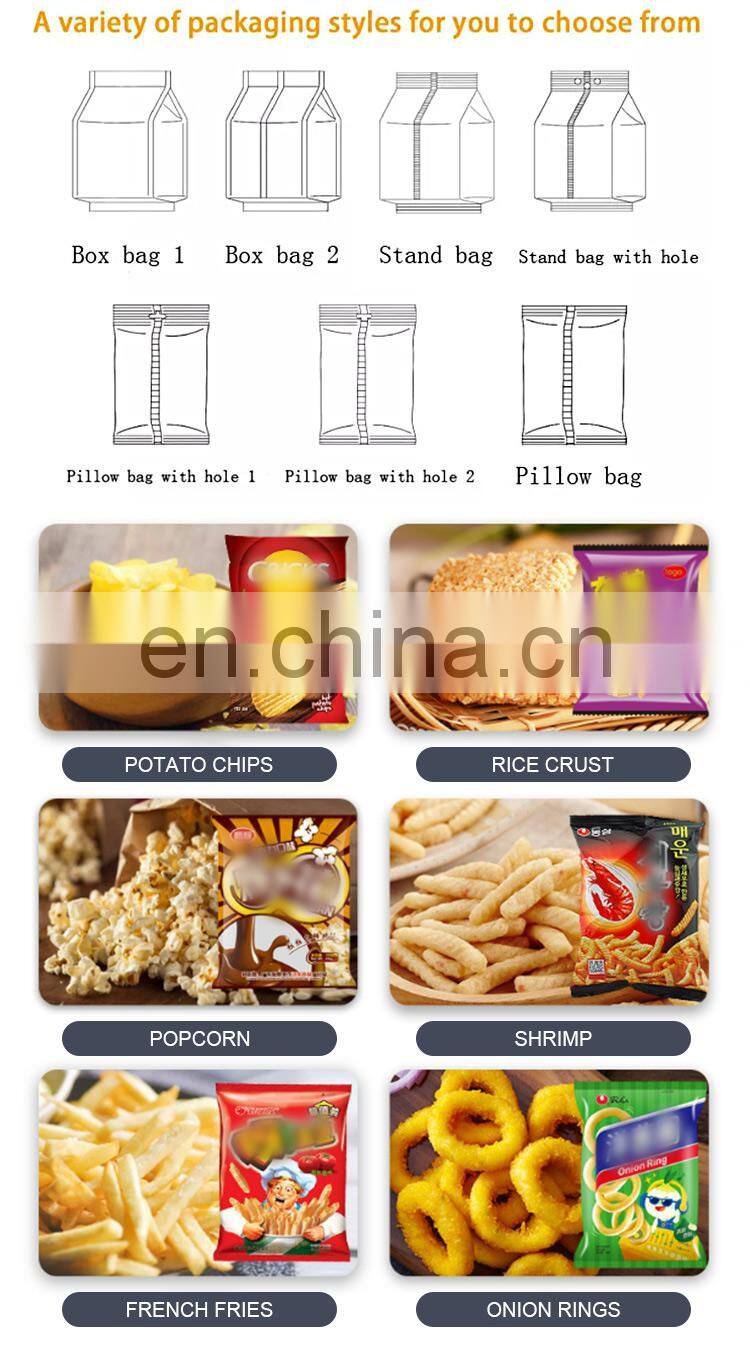

Bag-making type | Stand-up bag type, punching device | Stand-up bag type, punching device | Stand-up bag type, punching device | Stand-up bag type, punching device | Stand-up bag type, punching device | |||||
Filling range | 80-2000ml | 150-2000ml | 150-4000ml | 150-5000ml | 150-6000ml | |||||
Max film width | 420mm | 520mm | 720mm | 820mm | 920mm | |||||
Bags’ thickness | 0.04-0.08mm | 0.04-0.08mm | 0.04-0.08mm | 0.04-0.08mm | 0.04-0.08mm | |||||
Air consumption | 0.3m³/min 0.65Mpa | 0.3m³/min 0.65Mpa | 0.3m³/min 0.65Mpa | 0.3m³/min 0.65Mpa | 0.3m³/min 0.65Mpa | |||||
Power | 2.2KW/220V 50-60HZ | 4KW/220V 50-60HZ | 3KW/220V 50-60HZ | 3KW/220V 50-60HZ | 3KW/220V 50-60HZ | |||||
Size of machine | L1320*W950*H1360mm | L1430*W1200*H1700mm | L1716*W1260*H1820mm | L1854*W1440*H2019mm | L2014*W1574*H2095mm | |||||
Weight of machine | 300kg | 500kg | 550KG | 600kg | 700kg | |||||
