Product Description
Micro ultra small volume 5 volt high frequency superheterodyne wireless receiving module
First, technical parameters
1 Overview
The FBD-RM07 is a highly integrated ultra-low power single-chip ASK/OOK RF receiver module.
High-frequency signal reception is fully integrated on-chip to achieve the most reliable reception with minimal peripherals and lowest cost.
Operating voltage range 3.0V~5.5V and very high sensitivity -105dBm, and ultra-low operating current 3mA, making it ideal
A variety of equipment with low power requirements.
2. Features
• Perfectly compatible with a variety of super regenerative receiver modules
• Complete monolithic UHF receiver
• Frequency range: 315MHz / 433.92 MHz
• Operating voltage: 3.0V - 5.5V
• Low power mode:
3mA (315MHz, fully operational)
3.5mA (433.92MHz, fully operational)
• Receive sensitivity
-105 dBm @ 315MHz
-105 dBm @ 433.92MHz
• Data rate: up to 5kpbs
• Standard CMOS interface control and decode data output
• RF antenna radiation is very low
• The most economical peripheral design
• High integration, simple peripheral, stable and reliable
3. Application areas
• Remote control fan
• Remote control light
• Remote control door
• Remote keyboard
• Long range RFID
• Smart Home Controller
• Remote control toys
• Wireless Encryption Device Receiver
• Short-distance remote control

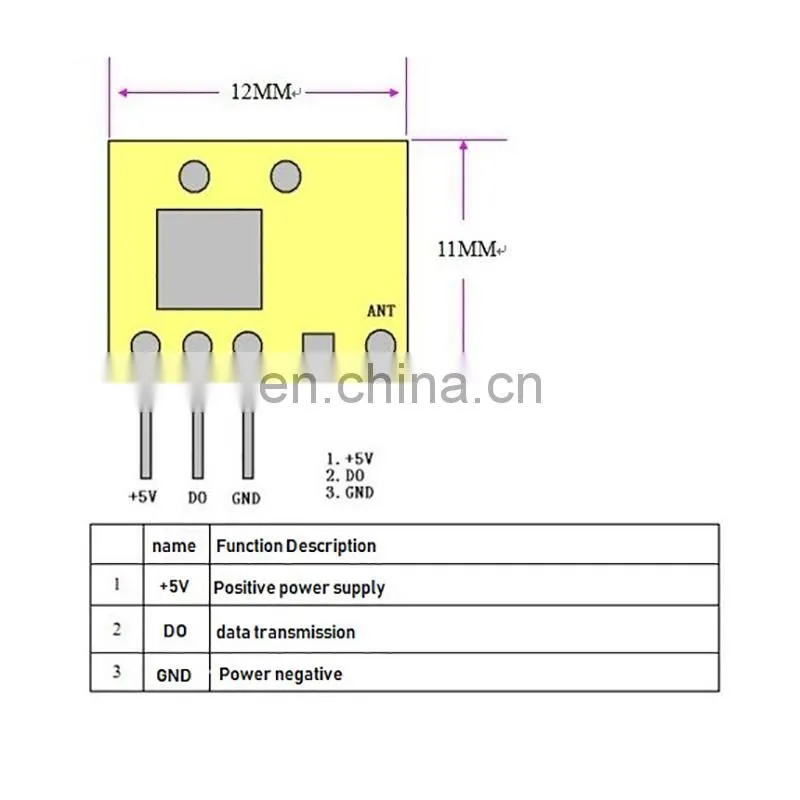

4. Size
Pin number |
symbol |
name |
Description |
1 |
+5V |
Positive power supply |
Connected power supply is 3.3V~5V |
2 |
DATA |
Data output pin |
When the module receives the corresponding frequency carrier, the pin outputs a high level. When the module does not receive the corresponding frequency carrier, the pin outputs a non-standard square wave.
|
|
DATA |
Data output pin |
|
3 |
GND |
Negative power supply |
Negative power supply |
|
ANT |
Signal antenna |
RF signal output antenna |

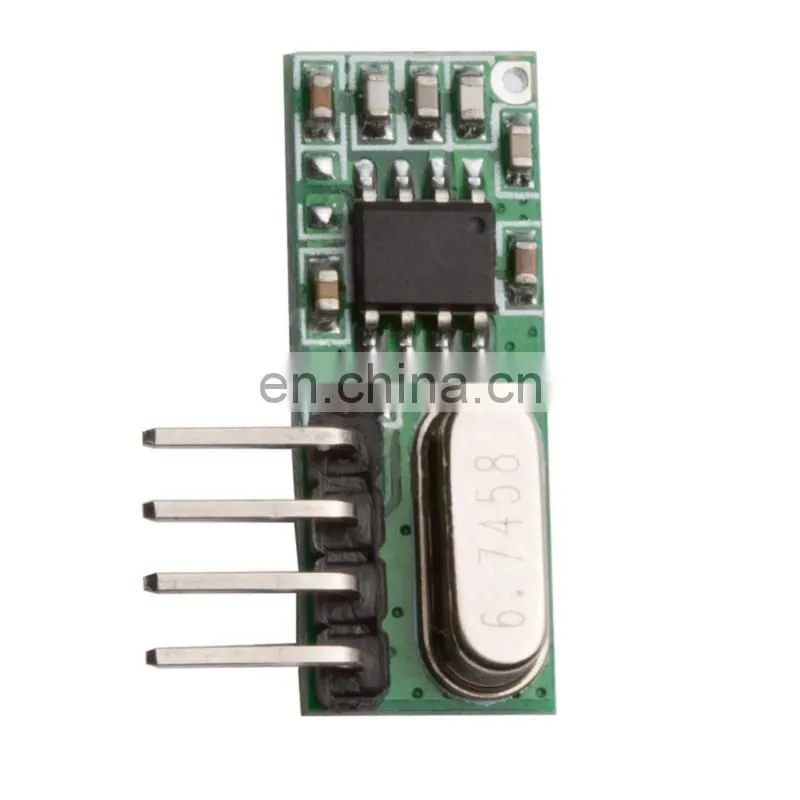

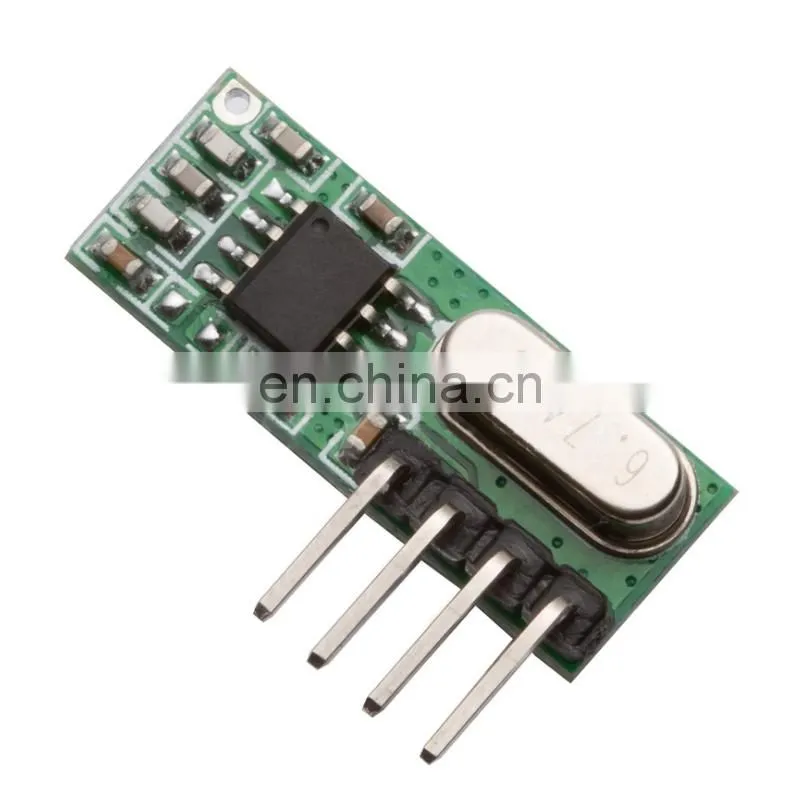

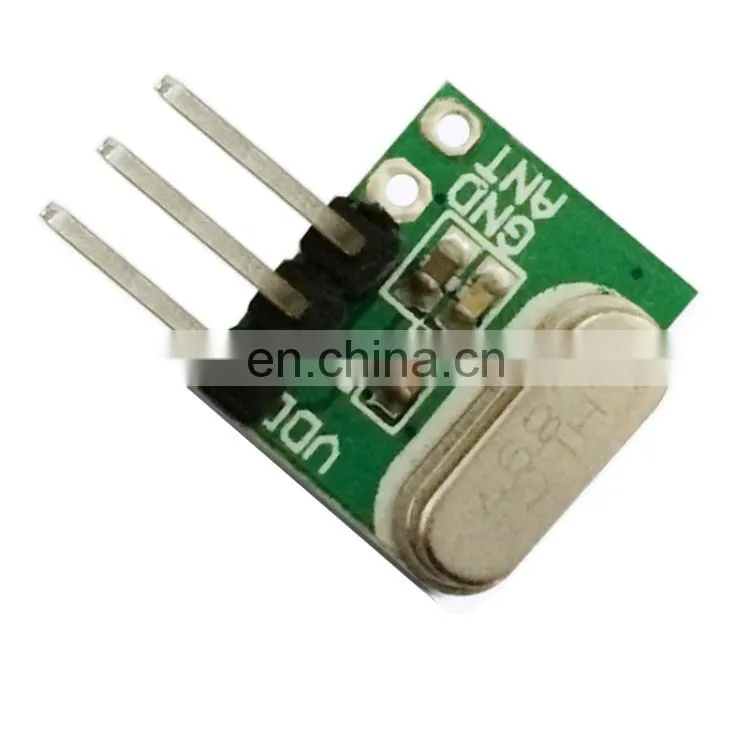

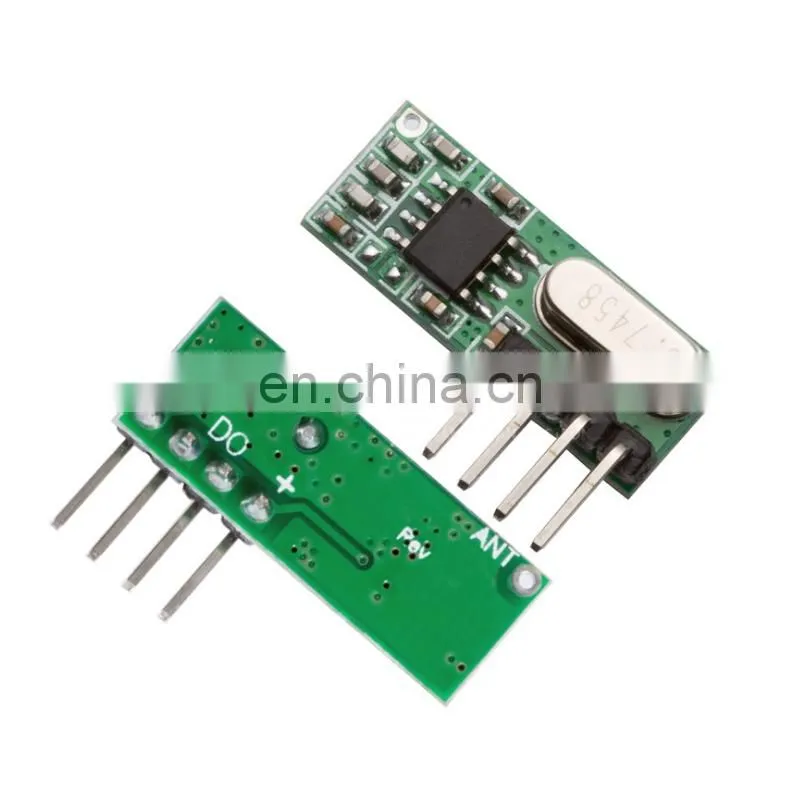

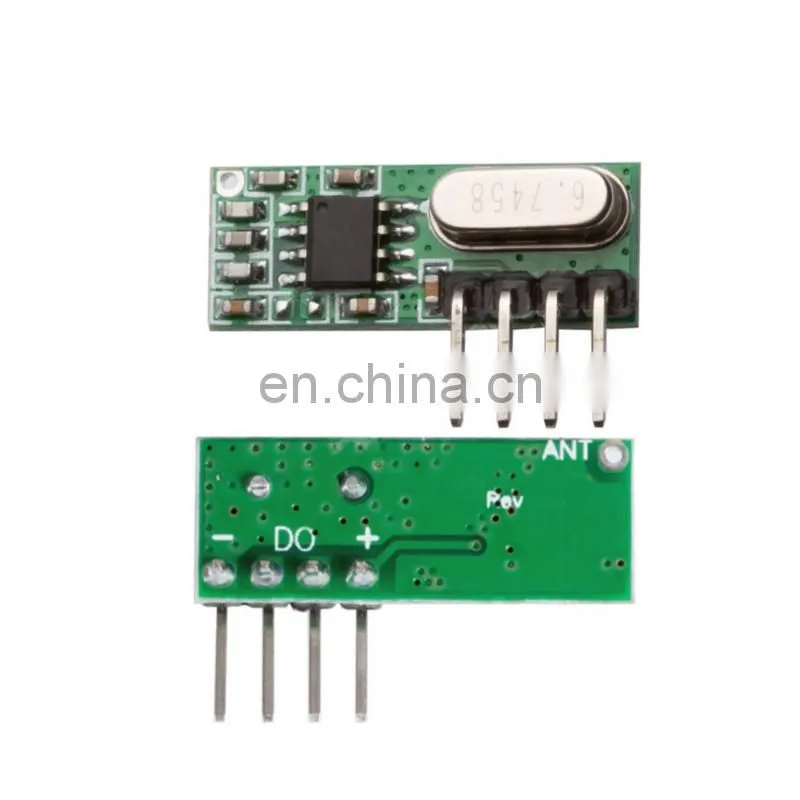

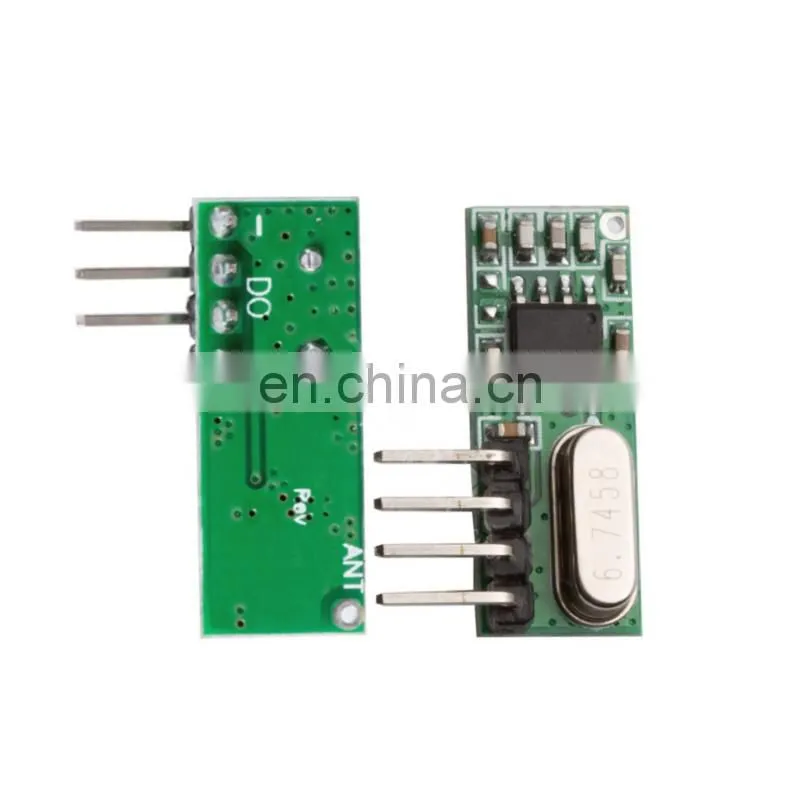

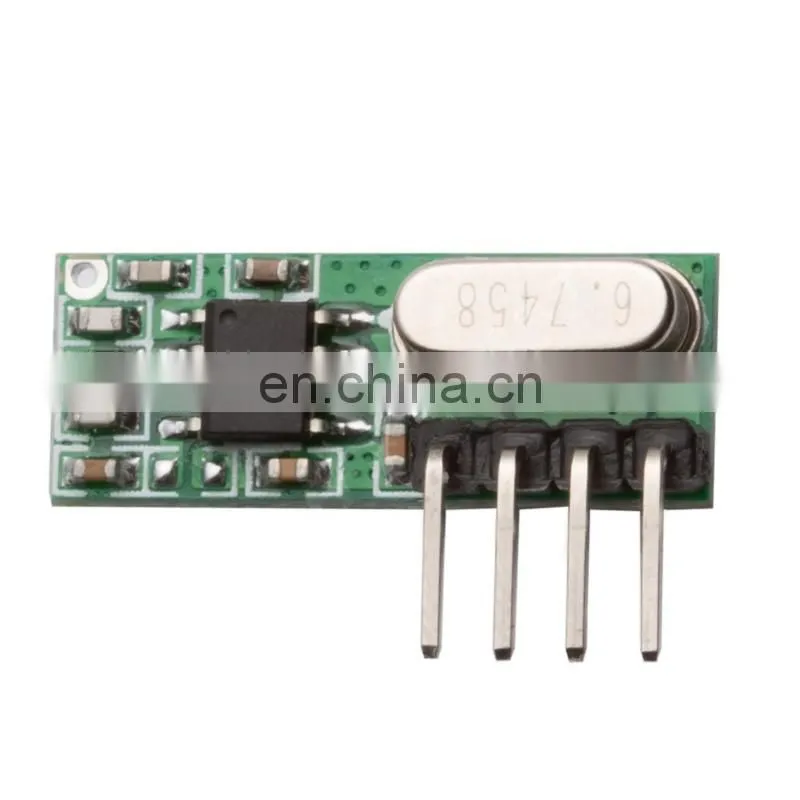

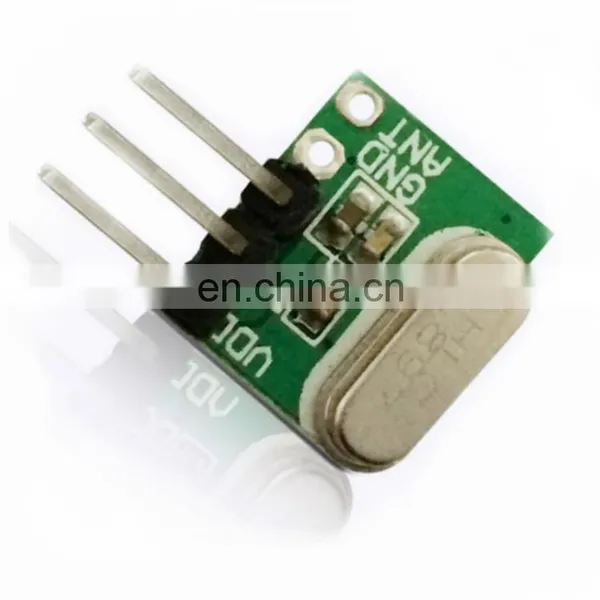

5, the physical picture
