Home > Products > Commercial building > High Quality Indoor Prefabricated Steel Structure Portable Storage Sports Basketball Gym Football Stadium

High Quality Indoor Prefabricated Steel Structure Portable Storage Sports Basketball Gym Football Stadium

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Prefabricated Structure Steel Sports Hall Basketball Gym Football Stadium

A: Components of high rise steel structure

2)Column: C style steel, H shape
3)Floor beam: C style steel,200*40*2.0mm
4)Floor: light magnesium board (our patent)
5)Stair: metal
6)Roof truss: angle steel
7)Purling tube metal
8)Roof panel: corrugated sandwich panel with color steel two sides
9)Door: aluminum frame with panel same as wall, with lock

Remark: this list is for your reference but the elements can vary.

Technique Index
Earthquake resistante: 8 fission intensity
Wind pressure: <31m/s about 10 grade
Roofing snow load; <80kg/m2
Roofing live load: 50kg/m2

Dead Load: 450kg/m2

Live Load: 200kg/m2

B: The advantages of steel structure

1)Economic : quick installed and saving the cost of construction
2)Reliable quality: mainly produced in the factory and control the quality
3)big space: the max span of prefab steel structure can reach 80meters
4)antiseismic: because the weight is light
5)Beautiful appearance: can use different colors
6)Long lifespan: can be used more than 50 years

C:Steel structure Frame

Specifications	1)Size:MOQ is 10m2, width X length X eave height, roof slope
		2)Span: 9-180m,type:Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors!
		3)Height: 3-10m
		4)Slope: 1/20, 1/10,1/5,1/3
		5)column distance: 6-9m
		6) Base:Cement and steel foundation bolts
		7) Column and beam:Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable
		8) Bracing: X or V or other type bracing made from angle, round pipe, etc
		9) C or z purlin:Size from C120~C320, Z100~Z200
		10) Roof and wall panel:Single colorfull corrugated steel sheet0.2 ~1.2mm thick, such as YX25-207-828 or sandwich panel :sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, YX40-320-960

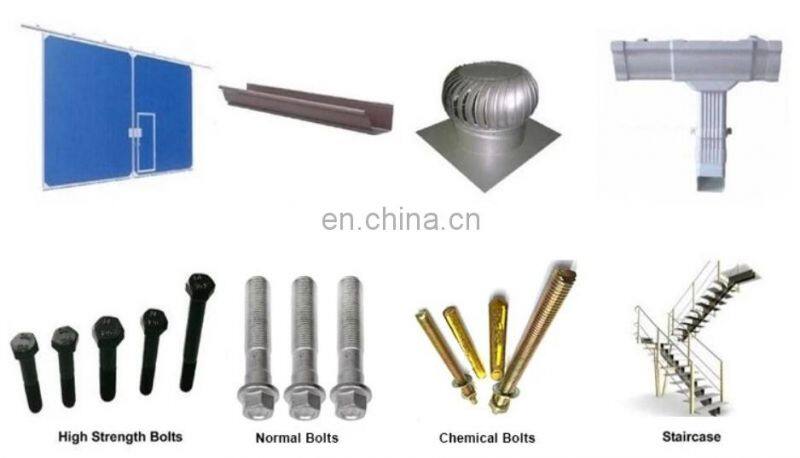

		11)Accessories:Semi-transparent skylight belts, Ventilators, down pipe, outer gutter, etc
We are glad to bulid steel structre as your given drawing.If you need we design for you, pls supply us the following parameter together with detail size:
Design Parameters	1)Live load on roof(KN/M2)
		2)Wind speed(KM/H)
		3)Snow load (KG/M2) if have
		4)Earthquake load if have
		5)Crane (if have) ,Crane span, crane lift height, max lift capacity
		6)Doors and windows: dimension, quantity, position
		7)The materials on the roof and the wall
		8)Crane need or not. if yes, please tell me the max lifting weight and max lifting height.
		9) If you have other requirements,please also inform us.
		10) It is better if you have your own drawings. please send them to me.

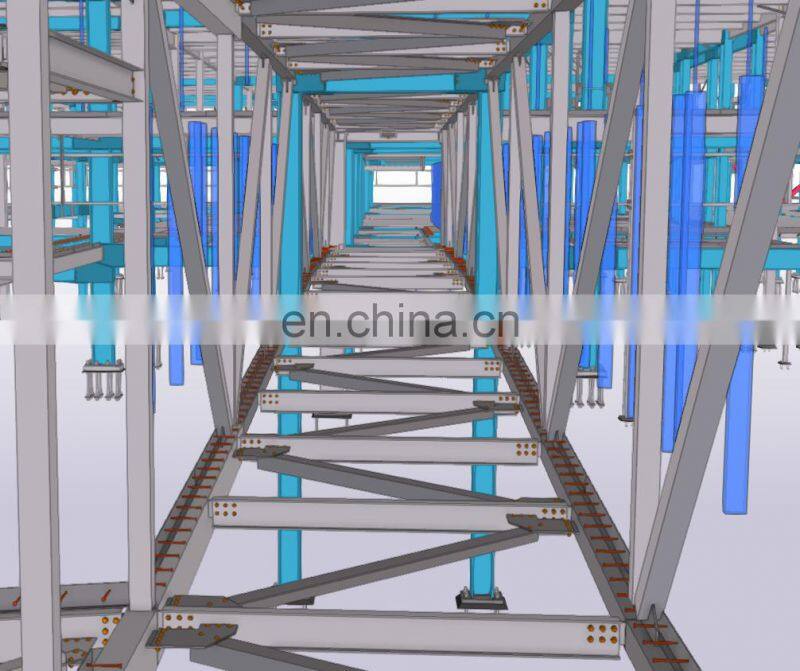

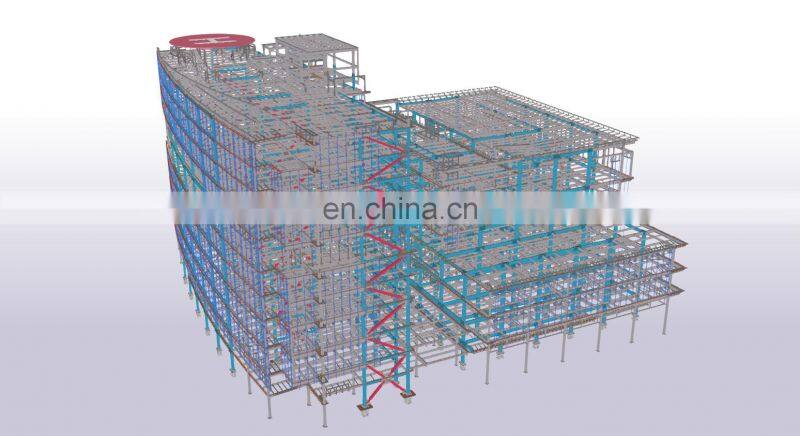

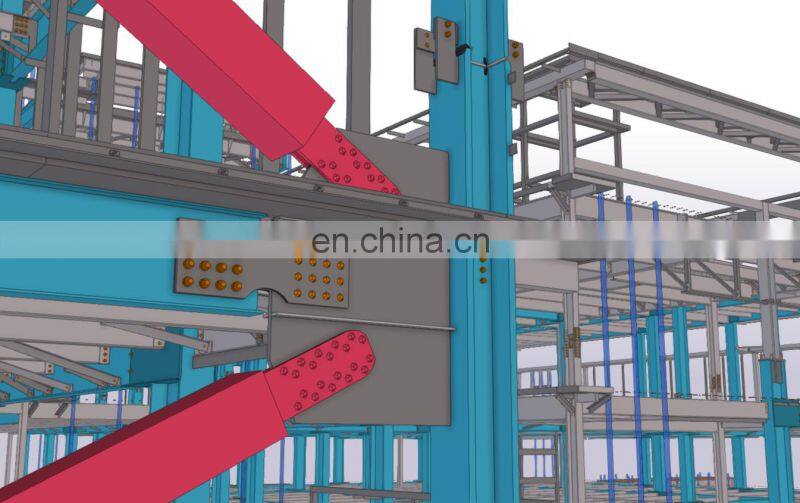

Steel Structure design and detailing

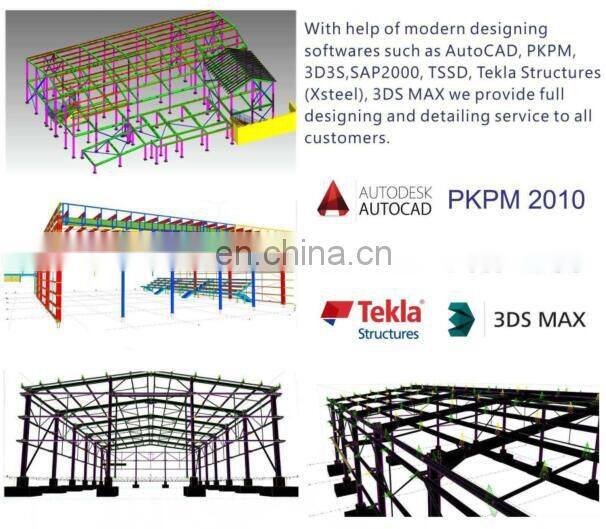

With help of modern designing soft wares such as AutoCAD, PKPM, 3D3S, SAP2000, TSSD, Tekla Structures (Xsteel), 3DS MAX we provide full designing and detailing service to all customers.

Production Line for Steel Structure

Detailed Images

Our professional design engineer team can use modern design softwarehouse, such as AutoCAD, PKPM, 3D3S, SAP2000, TSSD, TEKLA Structure, 3DS Max, to provide you with full design and details.
We can do complex industrial, commercial, residential buildings like, office mansion, shopping mall, supermarket, warehouse, hotels, poultry farm, workshop, 4S shop etc

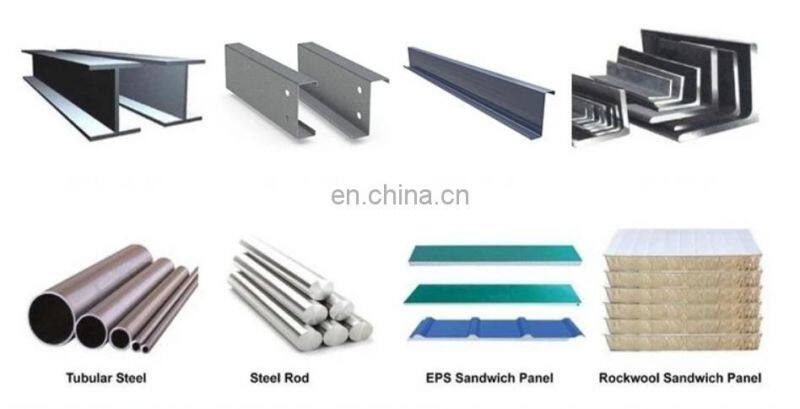

A. Main Steel: Q345, Q235, Q345B, Q235B Etc
B. Colomn & Beam: Welded or hot rolled H section
C. Connection Method of Steel Structure: Welding Connection or Bolt Connection
D. Wall & Roof: EPS, Rockwool, Glasswool, PU sandwich panels; Or corrugated Steel Sheet
E. Door: Rolling Door or Sliding Door
F. Window: UPVC window or Aluminum Alloy Window
G. Surface: Hot dipped galvanized Or grey color painted
H. Crane: 5MT, 10MT, 15MT and more

Case Show

Steel Structure Warehouse

Usage: Two Level Office + Showroom + Warehouse

Total Area: 2400m2

Project Site:Ethiopia

Steel Structure School Building

Project Site: Haiti

Total Area: 17000m2

Housing area: 12000m2

Housing Category: 5+4 Floors School

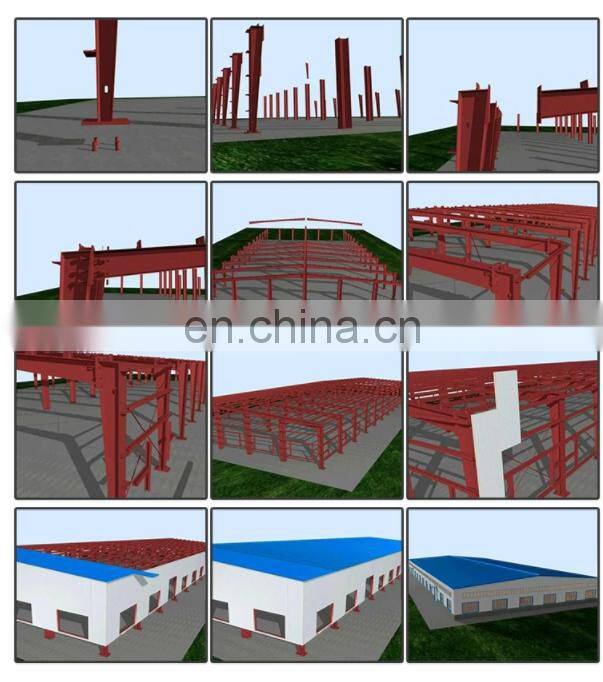

Install Information

Packing & Delivery

Our Company

Our clients and exhibitions.

Established in 2001, Weizhengheng Group covers an area of over 48,000 sqm, with more than 1,000 employees from 9 subsidiary companies together with offices. Each company enjoys its own feature.

Shijiazhuang Weizhengheng Light Steel Color Plate Co., Ltd, professional in export trade business, has more than six years of experience in this field. Hebei Weizhengheng Modular House Teck Co., Ltd., located in Shijiazhuang and specialized in steel frame villa and container houses design, product, sell and construction. Heilongjiang Weizhengheng Steel Structure Engineering Co., Ltd, located in Harbin, benefits from freight economy when exported to Russia. Beijing Weizhengheng Metal Structure Engineering Co., located in the capital city of China, may receive clients from the abroad while saving their time and energy. Other branch companies are Shenyang Tianying Light Steel Color Plate Co., Ltd, Hulun Buir Weizhengheng Light Steel Color Plate Co., Ltd, Ulanhot Weizhengheng Light Steel Color Plate Co., Ltd, Shandong Office, Manzhouli Office and Uganda Office.
