Customized Prefabricated Steel Structure Building Modern Hotel Factory Workshop Warehouse Steel Building

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

China Manufacturer Steel Structure for Warehouse

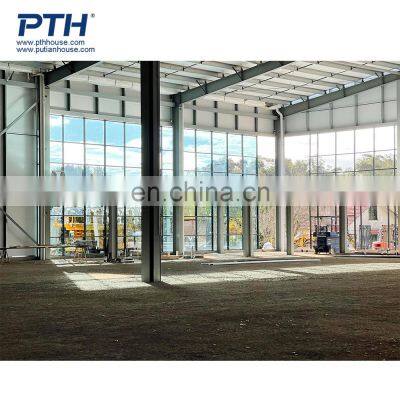

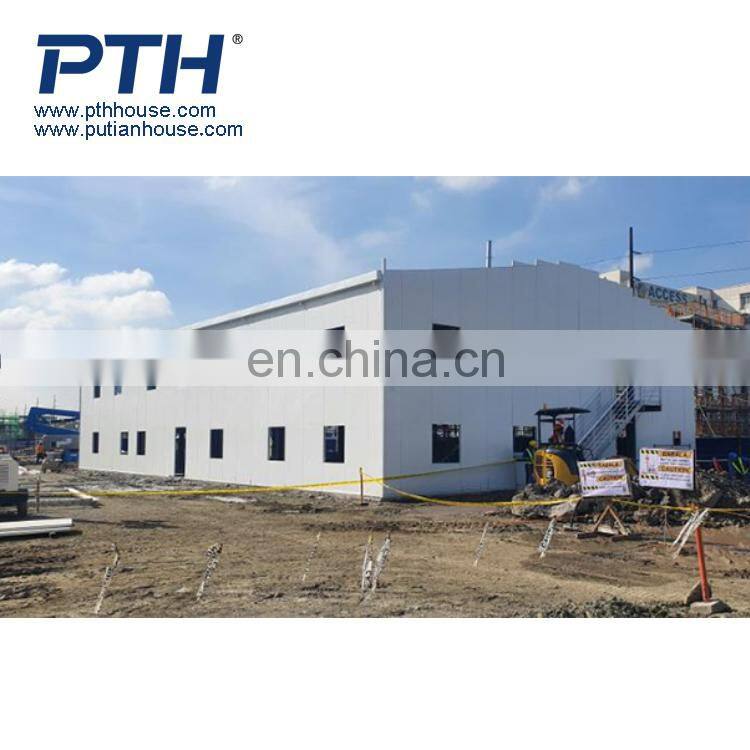

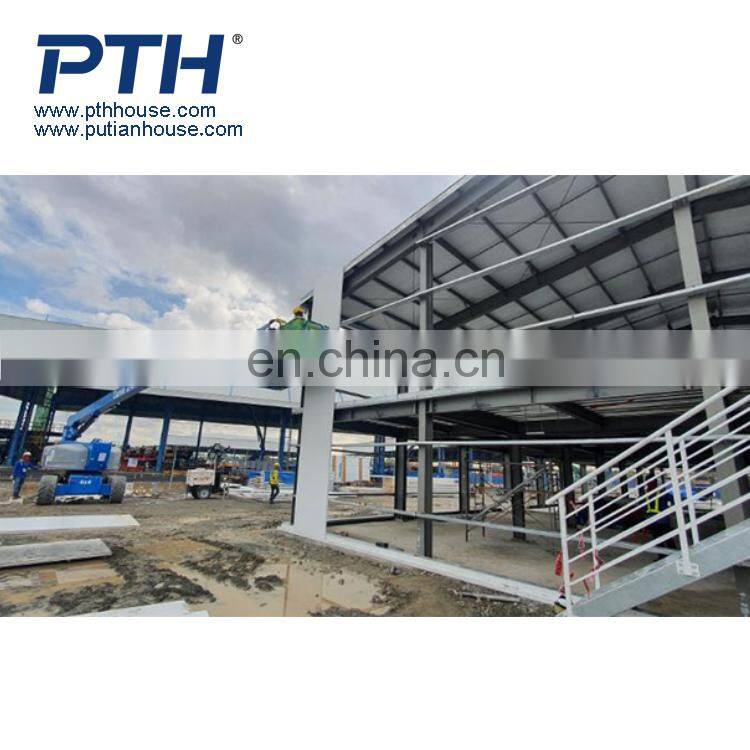

Detailed Photos

Products Description

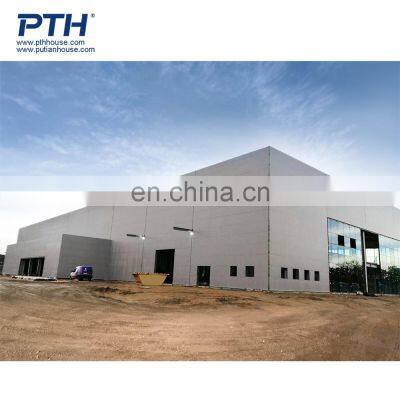

PTH provides single-story steel structure building and multi-story steel structure building.

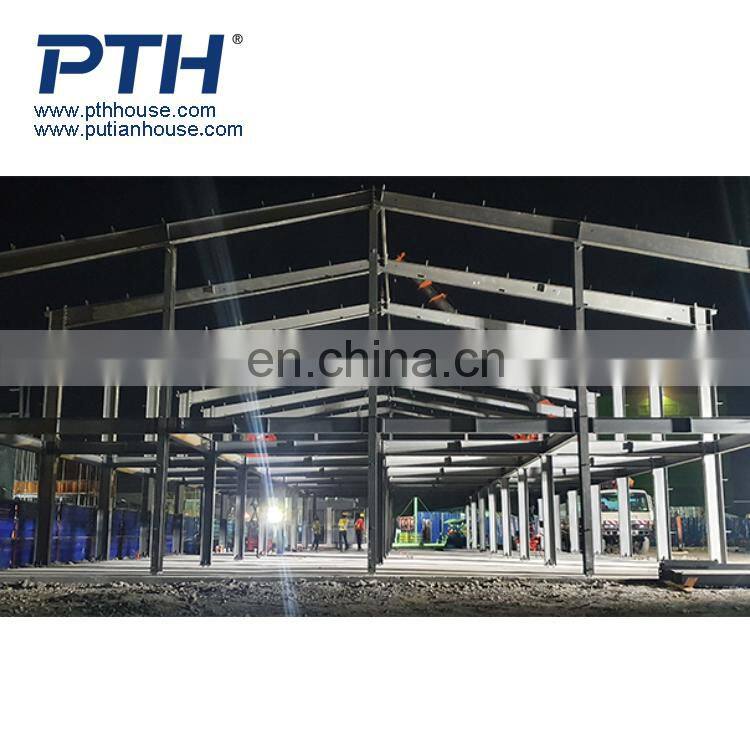

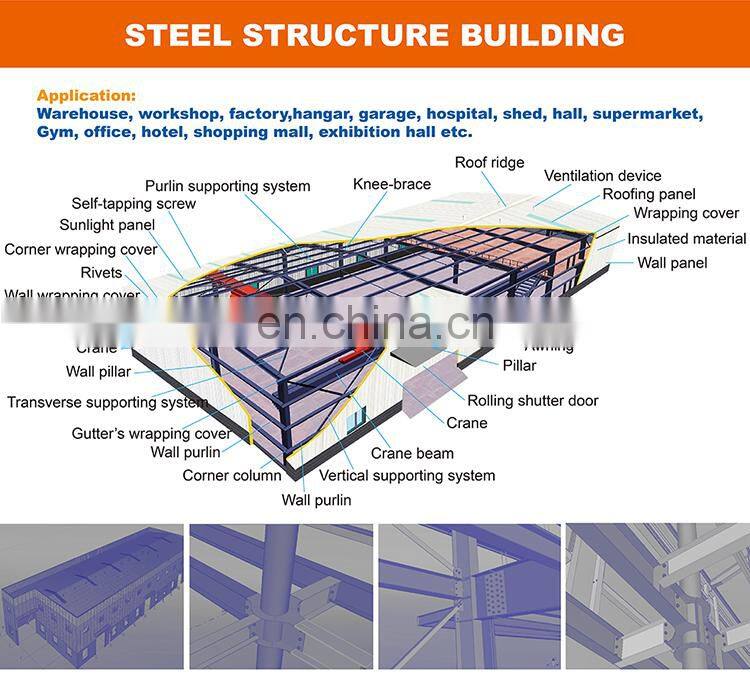

Steel structure building is made of heavy steel frame and cladding panels, doors and windows etc. Main Column and rafter are welded H -steel, purlin is steel with galvanization 275g/m2, can be C or Z section. Secondary steel components are L- steel, CHS, SHS, RHS, round steel rod, etc. Most of the steel componnets are connected by bolts.
Options: one floor or multi-floor, crane, skylight, ventilation etc.

Characteristics and Advantages:

1. Size can be customized
2. Large span, clear span can reach to 70m without middle colums
3. Environment protective, no garbage caused, low demand of foundation
4. Doors, windows, and interior partitions can be customized and flexibly fixed
5. Beautiful appearance, different colors for the wall and roof cladding
6. Cost saving and convenient transportation
7. Fast installation and easy to maintenance
8. Anti-rust and normally more than 50years using lifespan, surface treament can be paint or hot dip galvanization
9. Safe and stable, can resist 8 grade earthquake
10. Structure can be designed according to the required live load and local snow load and wind load, can resist typhoon/hurricane

Main Structure	Column	Q355/Q235 H- steel , Box column is also available
		Rafter, Beam	Q355/Q235 H- steel
		Surface processing options	1. Epoxy zinc-rich primer + epoxy mica intermediate paint (120μm thickness)
		Surface processing options		2. Hot dip galvanization
Sub Structure	Purlin	Q355B, C/Z steel section, galvanization 275g/m2
		Angle brace	Q235B, L- steel
		Cross bracing	Q235B round bar, L-steel
		Tie bar	Q235B, round pipe
		Batter brace	Q235B, round bar
Roof System	Roof panel options	1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two sides is steel sheet. Thickness of roof panel 50mm/75mm/100mm, thickness of steel sheet 0.4mm/0.5mm/0.6mm
	Roof panel options			2. Steel plate, thickness 0.4mm/0.5mm/mm
		Gutter options	1. Galvanized steel gutter, thickness 2.0mm/2.5mm, 3.0mm
		Gutter options		2. Painted, Pre-finished steel gutter, thickness 0.4mm/0.5mm/0.6mm
		Down spout	PVC pipe
		Steel flashing and cover	Steel sheet for roof ridge cap, gable wall end cover and corner cover
		Options	Roof skylight 1.8mm PVC sheet and stainless steel ventilator
Wall System	Wall panel options	1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two sides is steel sheet. Thickness of roof panel 50mm/75mm/100mm, thickness of steel sheet 0.4mm/0.5mm/0.6mm
				2. Steel plate, thickness 0.4mm/0.5mm/mm
				3. Brick wall (provided by client)
		Door	1. Roller door for truck, size customized
				2. Sliding door for truck, size customized
				3. Access door, steel door, glass door etc.
		Window	PVC or Aluminum frame, Fixed, swing, sliding, louver etc, size customized
		Steel flashing and cover	Steel sheet end cover and corner cover
Accessories and fasteners		Anchor bolts, chemical bolts, high strength bolts, ordinary bolts, self-drilling screws, rivet etc.
Other Options		Crane 5T, 6T, 10T, 16T, 30T etc.

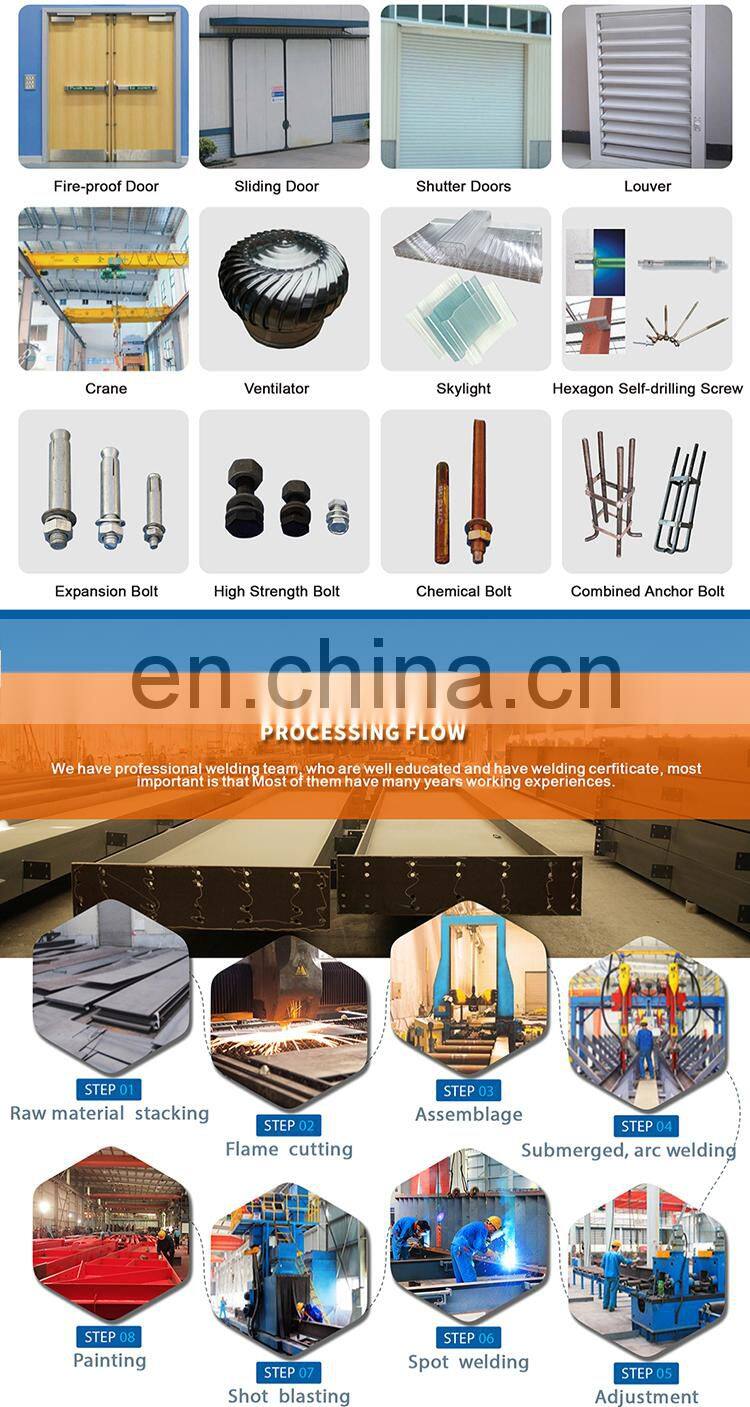

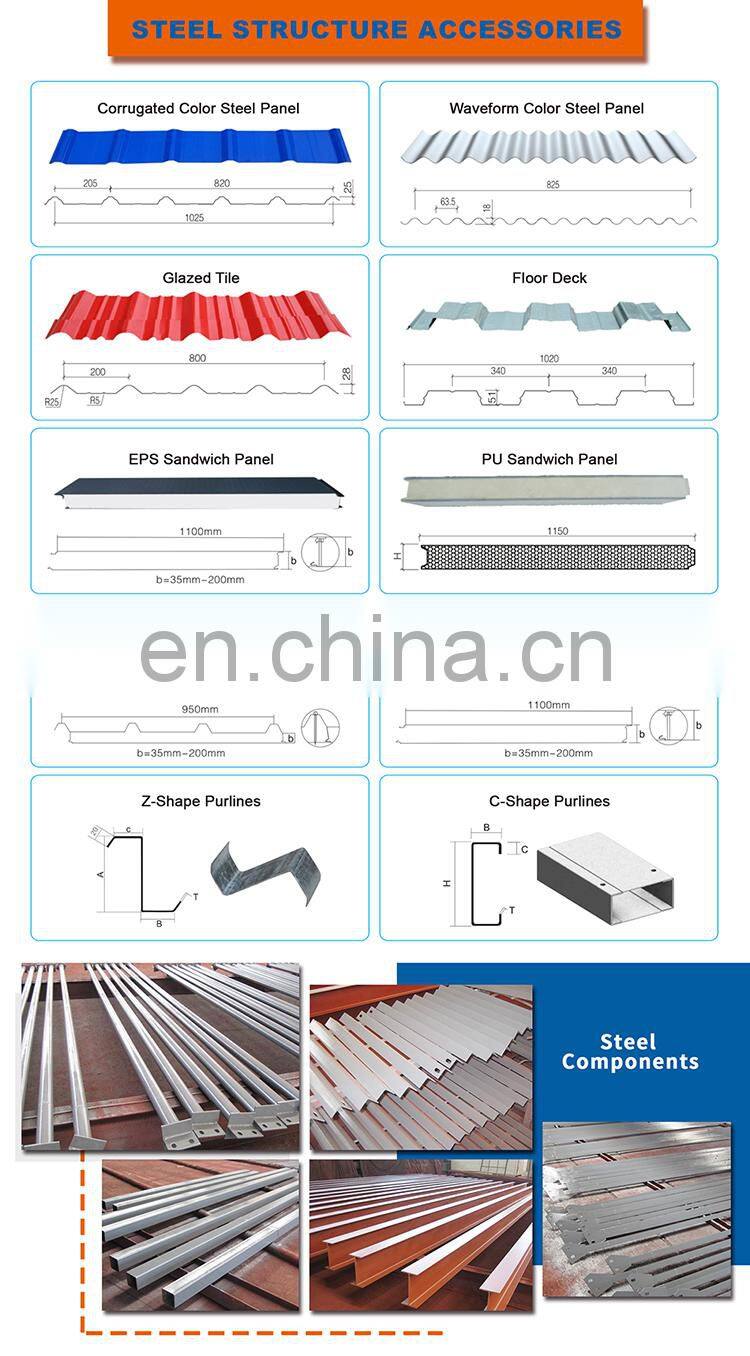

Accessories&Processing flow

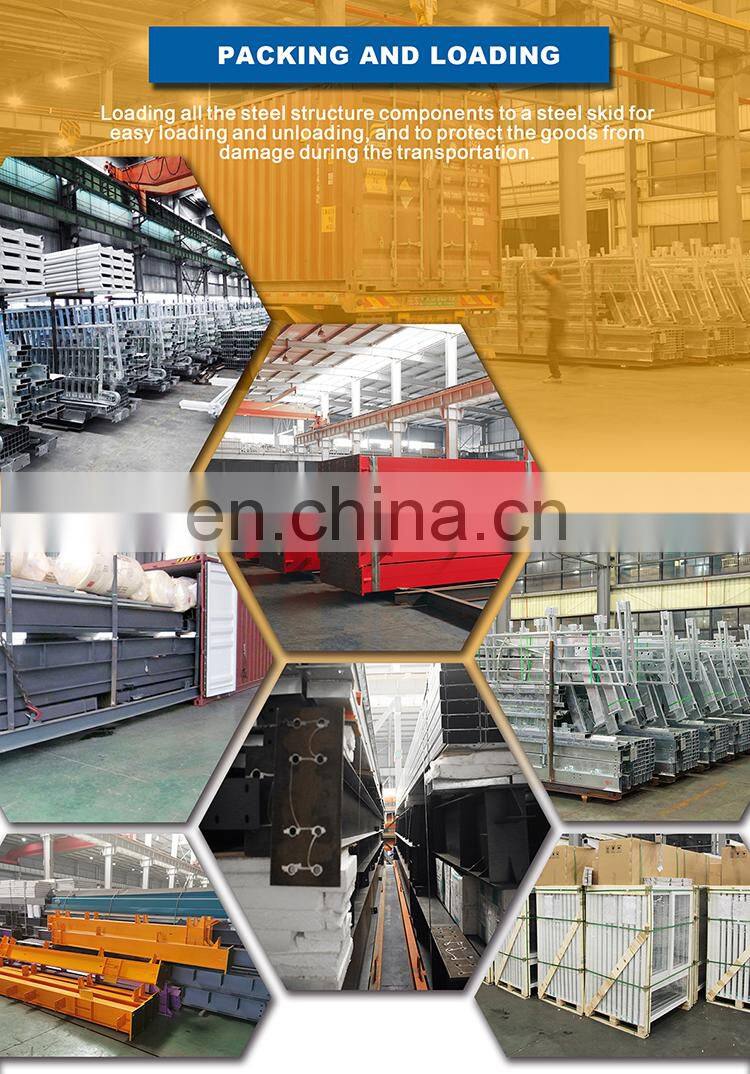

Packaging&Shipping

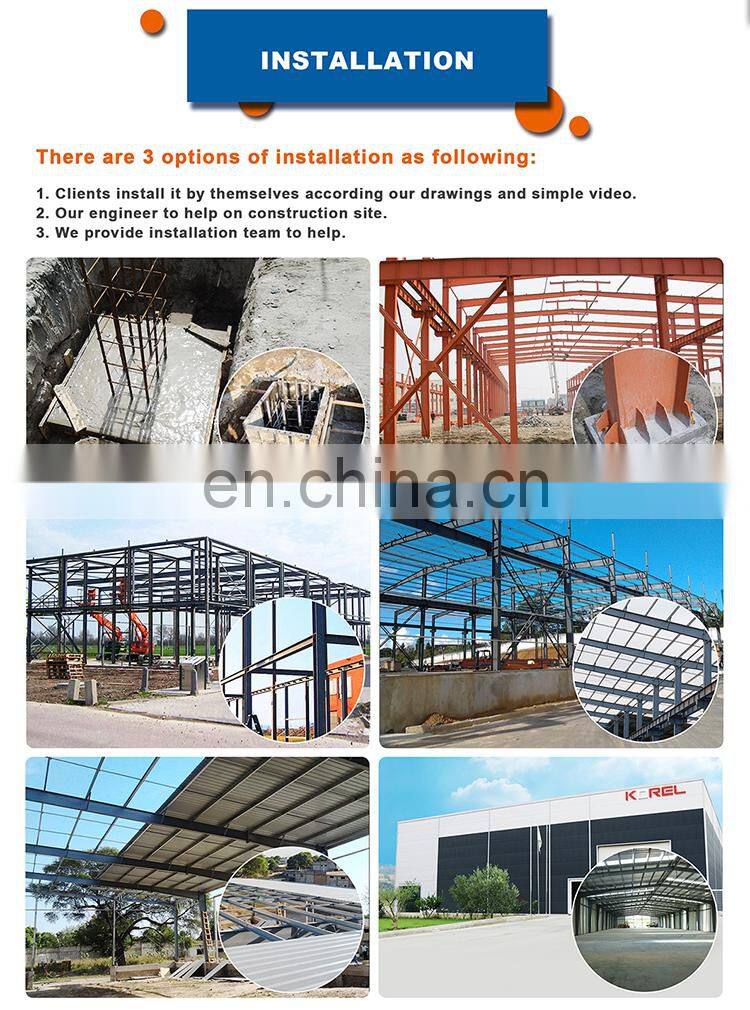

Installation Instructions

Other Products

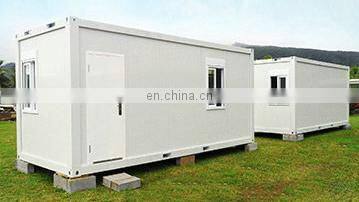

CONTAINER HOUSE

DOUBLE-C STRUCTURE

LIGHT GAUGE STEEL

STEEL STRUCTURE BUILDING

Company Profile

1.Contact us
Contact us by Phone/Email/LinkedIn/WeChat
2.Drawing and Quotation
Tell us what you want,our sales man and designer give you the best proposal for your container house project.
3.Finalize contract
Finalize details for price,payment,shipment time,and sign the contract.
4.Producing
Start production upon receipt of down payment,the sales follows up the producing progress.
5.Inspection
QC team will make routine inspection in each process,and provide inspection report.
6.Packing&Shipment
Packing all the parts onto the steel rack , load into the shipping container ; contact shipping forwarder and ship to the final port as customer directed.
7.Install
PTH provide complete installation drawing,or PTH send engineer to the site to give the installation guidance.For the new type container house, ordinary people can assemble it like the furniture, no need heavy crane.
8.After-sale service
Anytime,any problem,our sales man and engineer will try our best to help your solve it.

FAQ

1. Do you provide on-site installation service?
1) Only large projects provide installation services
2) General projects, we can provide Installation guide service based on customers' request.
3) Installation supervision charge standard: 150USD/day, customer should responsible for the travel fee, accommodation,translation fee, and ensure staff's health and safety.
2.What's your delivery time?
Salesman will confirm the time accordingly, large order should communicate with order management department in advance. Normally, delivery time is 45days after receiving deposit. Large order delivery time should be arranged separately.
3.How to control the quality of your product?
a. quality of the design: think about possible problems in advance and provide a high-quality design solution.
b. quality of the raw material: choose the qualified raw material
c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.
4. How to deal with quality problems?
Warranty is 3 years. Within the warranty period, PTH will responsible for all quality problems caused by production.
5. If there is a clear service life of your products? If have, how long?
Under conventional climate and environment, steel structure whole building 10 years, main structure 15 years, protecting system 10 years.
6. What designs do you have in different climates (How can the products adopt to different climates)?
Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve the anti-pressure ability of the structure.
High corrosion region: use corrosion resistant material, or paint anticorrosive coating.
