Deep Drilling Hole Water Well Inspection Borewell Camera

Deep drilling hole water well inspection borewell camera

 WIth Manual/Automatic Winch and PTZ rotary camera, PIW-R700-12 is specializes in 100-700m well/borehole inspection.

Specifications of PIW-R700-12 well logging camera:

Camera Size: Φ90mm (75mm optional)
Camera Material: 304 stainless steel
Camera Lens Material: explosion-proof optical glass
Camera Pixels: CCD camera, 720 TVL
Lens Angle: Pan 360°, Tilt 180°
Camera Light: Φ90mm front 8 high-brightness patch beads, rear 16 LED light source light beads
Brightness Adjustment: can adjust the brightness of the front light source via the button of the control box, 5 dimming
Probe Pressure: 25MPA
Focal Length Adjustment: can adjust focus via the main control panel buttons

Camera Size: Φ70mm
Camera: split iron galvanized probe, easy to remove
Camera Lens: anti-reflective anti-wear resin film
Camera Pixels: CCD camera, 700 TVL
Lens Angle: HD low illumination 2.8mm wide-angle camera
Camera Lights: equipped with 15 high-brightness LED cold light source
Probe Pressure: 15MPA, 1500 meters max.

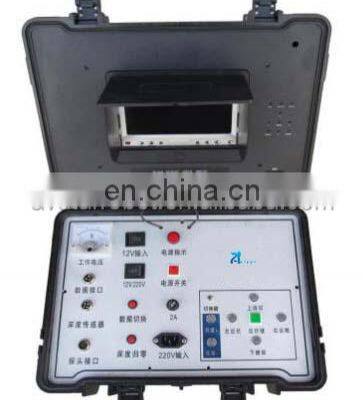

Aluminium Alloy Main Control Box
Voltage Input: 220V
Depth Interface: connect the depth sensor
Probe Interface: connect the probe, transmit video and power
Data Interface: can write the well number and calibrate depth automatically.
Video System: 16G SD card recording system, support 32G max.
Depth Return to Zero: please return to zero before well logging to count accurately.
Display: 12" high light LED display, with a sunshade, outdoor visual.
Extended Port: video capture extension interface(optional)

12" LCD monitor
Aspect Ratio: 4: 3
Contrast Ratio: 500: 1
Brightness: 1000cd / ㎡
Resolution: 1024*768
Power Supply: DC 12V
Color System: PAL / NTSC / SECAM

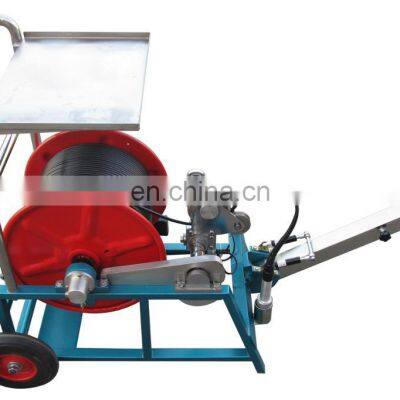

Manual / Auto in one Winch: 220V, available in electric mode; when using the battery power supply, if the battery is not enough or logging time is longer, only supply for the main control box, the winch is changed to manual mode.
Main Control Box Tray: stainless steel tray, removable, easy to transport.
Down Well Pulley: has depth counting function. Need to connect the data cable to the main control box to use it.
Pulley Support Rod: retractable, removable. There is a hydraulic rod in the connection of winch to prevent rod shaking when logging.
Depth Counting Function: depth accurate to 0.05 meters, if there is an error, the depth can be calibrated.

Video System: SD card recording system, support 32G max.
Depth Return to Zero: please return to zero before well logging to count accurately.

Cable Material: light and heat resistant material
Bearing Pull: 280KG
Outer Diameter: 8.2mm
Temperature: 45℃

Safe Packing.
Wooden carton with foam.

    Fast delievery.
    DHL, FedEx and UPS.

We also have many other models borewell cameras with 50m/300m/700m/800m/1000m/2000m depth.
