Product Description

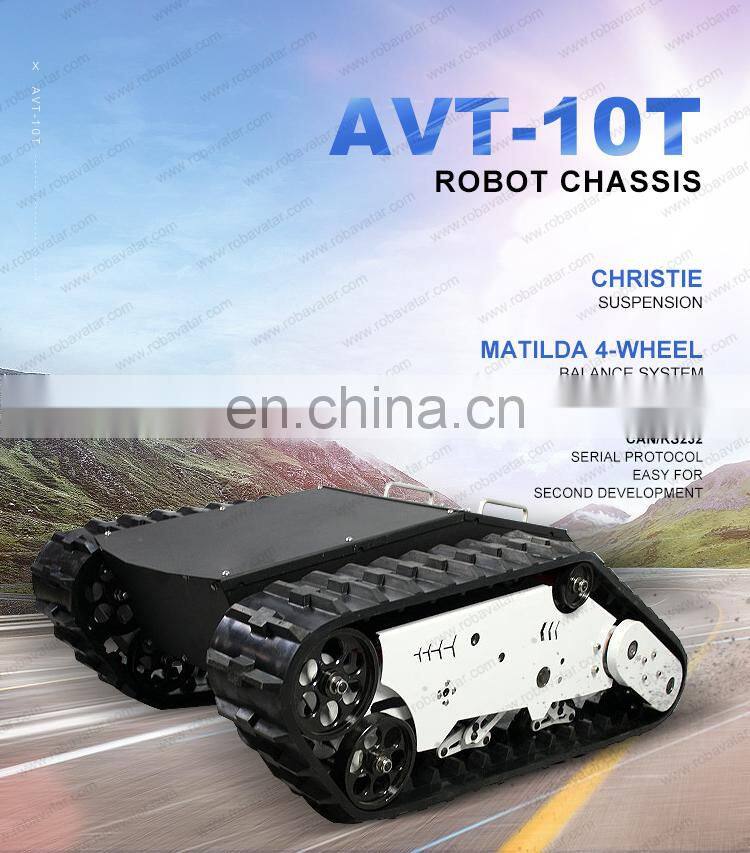

Professional manufacturer sell AVT-10T rubber crawler robot chassis commercial robot with excellent trafficability

Product Description

1. Product Introduction:

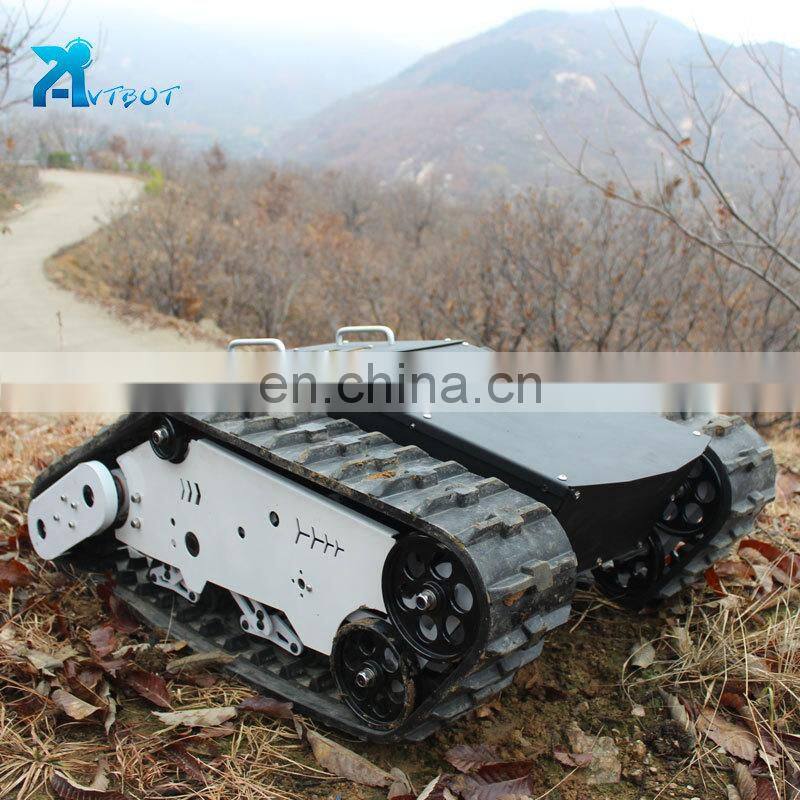

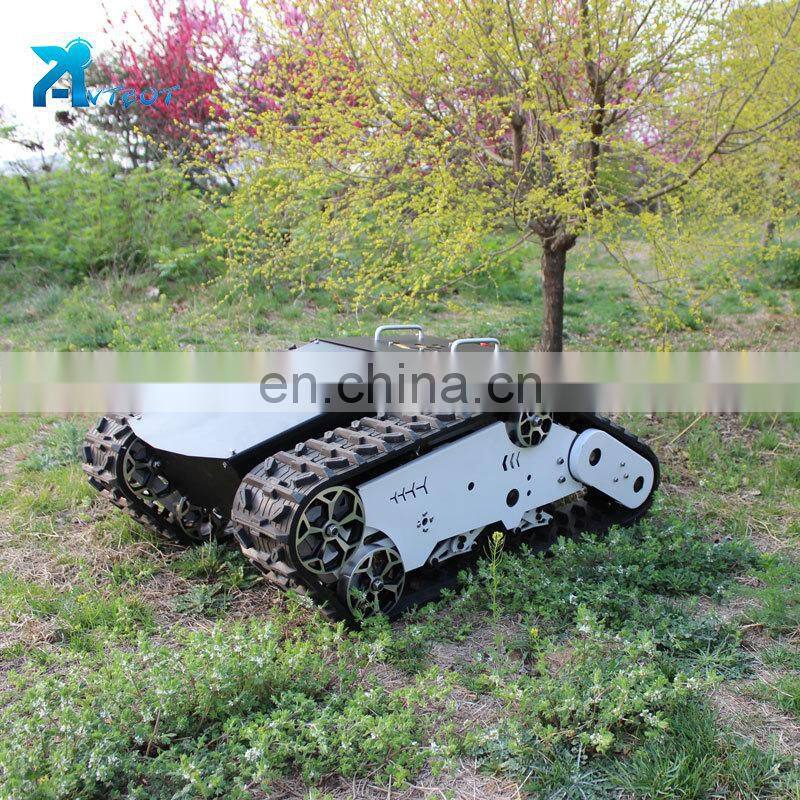

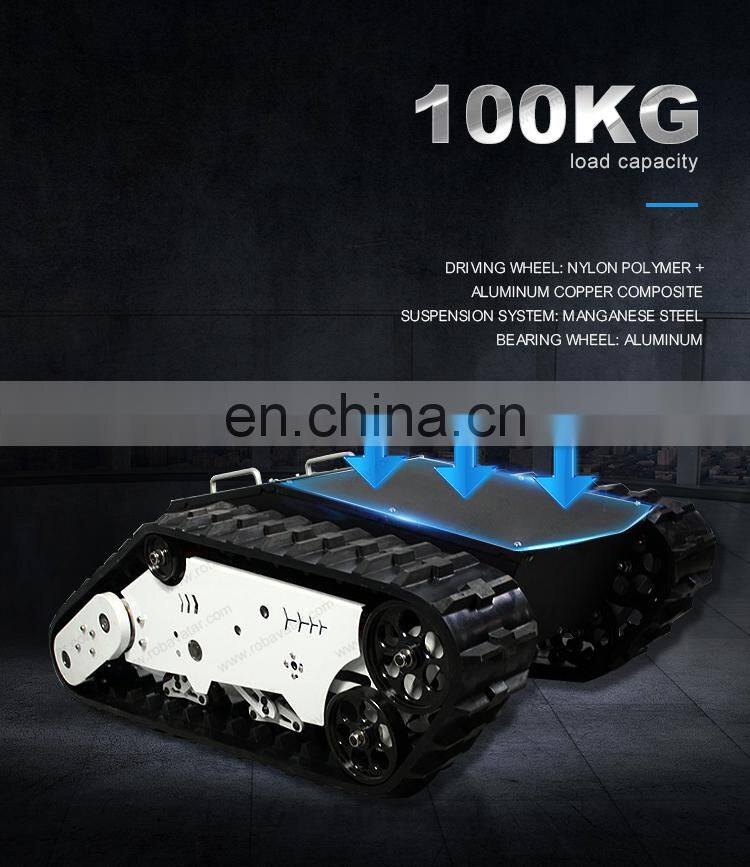

The robot chassis AVT-10T is made of 304 stainless steel and galvanized square pipe, which has good corrosion resistance, so the chassis can be used effectively for a long time. Not afraid of climbing and driving in the wild, you can walk on 45° steep slopes or stairs. The rubber track will increase the friction with the ground, which is of great significance for the robot chassis that can withstand a load of 100kg. Therefore, the price of the chassis for robot needs to be determined according to the materials used in the robot chassis kit.

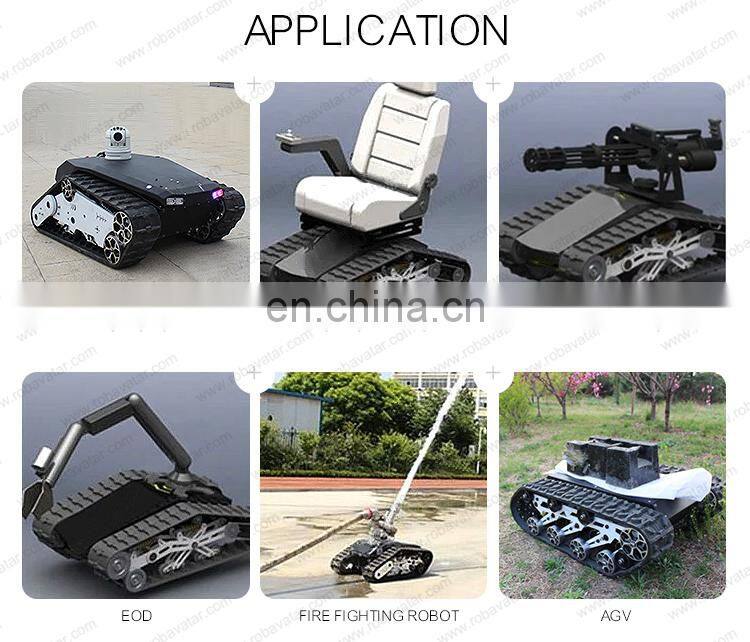

2. Product Application:

1. Exploration of inspection

2. The rescue vehicle

3. Scientific research and education

4. Fire control security guard

5. Special photography

6. Special transport

3. Product Features:

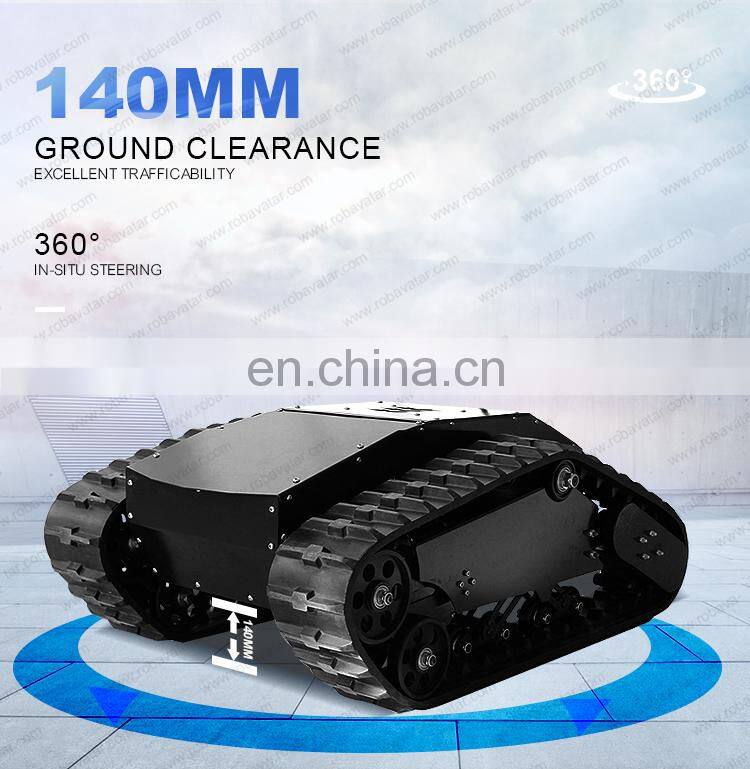

1. 140mm ground clearance, excellent trafficability.

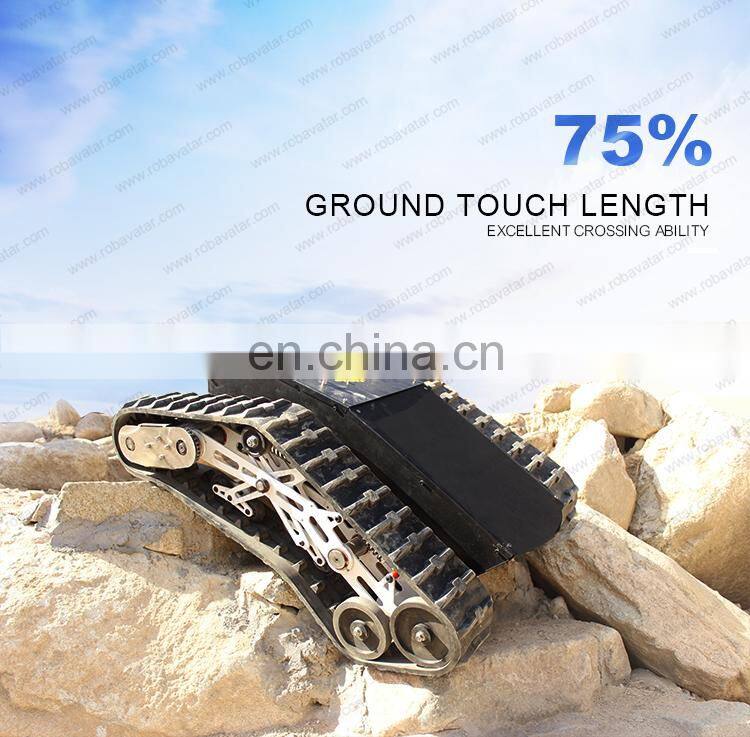

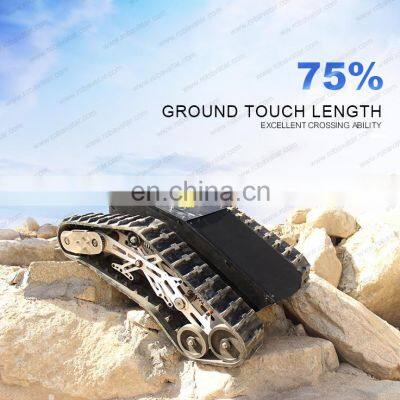

2. 75% ground touch length, excellent crossing ability.

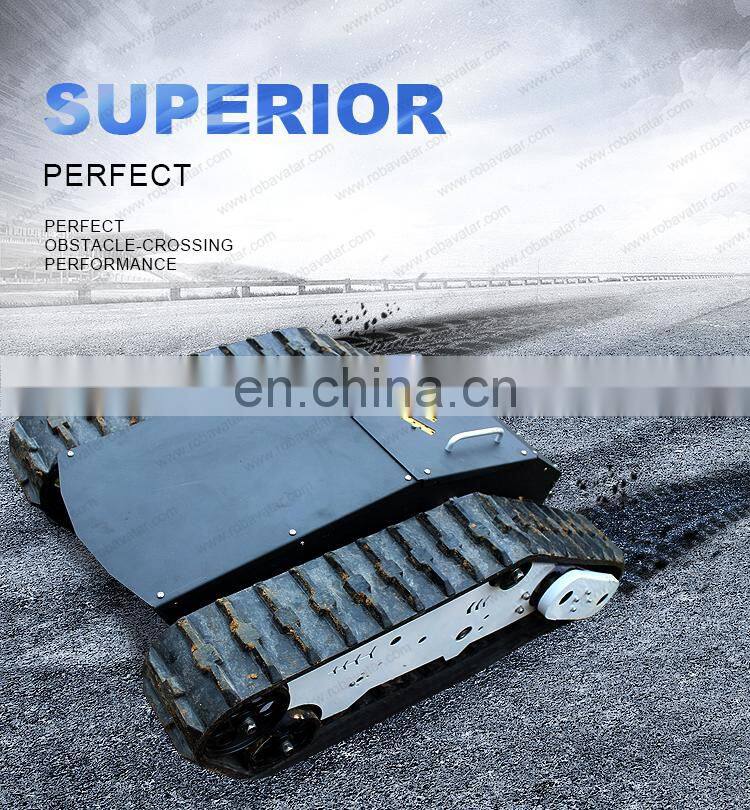

3. Superior grip, perfect obstacle-crossing performance.

4. Product Specification:

Item	Data	Item	Data
Body Material	304 Stainless Steel Skin, Galvanized Square Tube	Dimension	1020750405mm
Track Material	Quality Rubber Embedded with Kovlar Fiber	Internal Size (Excluding Battery)	320295240mm
Self Weight	110KG	Max. Load Weight	120KG
Motor	Kane Motor 110BL03	Track Circumference	2.3m
Track Width	150mm	Motor Rated Torque	2.5N
Drive Wheel Diameter	148mm	Rated Torque	60NM
Wheel Material	Aluminium	Ground Contact Length	74cm
Reduction Ratio	1:7.5	Reducer	NMRV50
Surface Treatment	Sprayed / Partially Painted	Running Speed	6.5KM/H

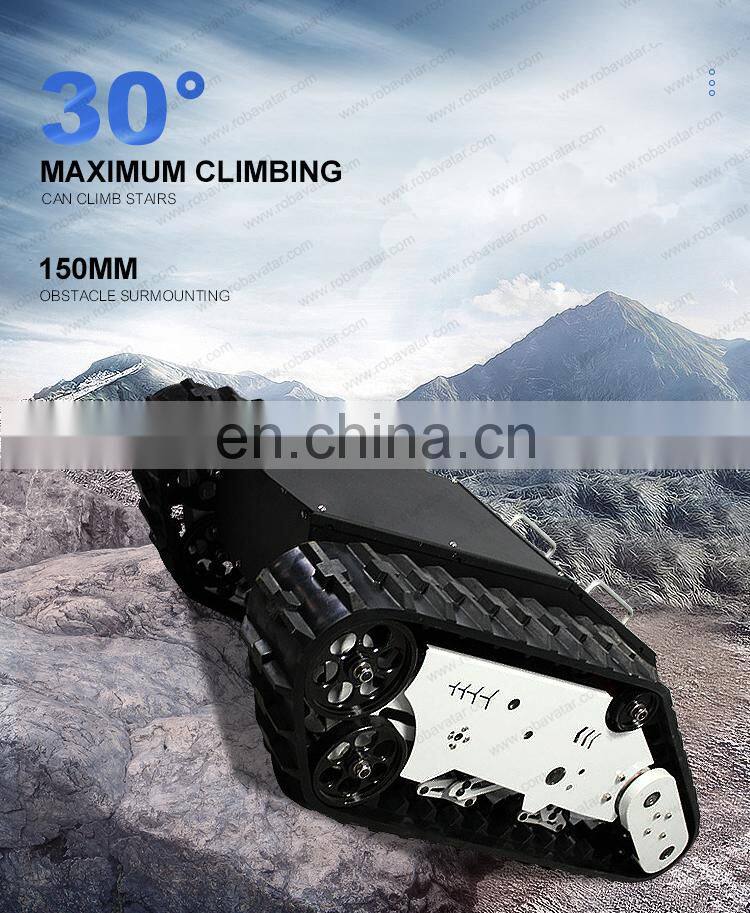

Climbing	30°, can climb stairs	Power	1000W*2
