Product Description
outdoor crawler robot tracked machine robot chassis
Application:
TinS-3 is widely used for secondary development of robotic products. You can build on your own robot kit with it. With small size, it is especially working well in small space, with adding-on inspection camera, robot arm, telescopic rod, cleaning brush, etc.
Major application fields:
1. Robot competition in colleges and universities
2. Lab robot research
3. The second development of robotics
4. Pipeline detection robot, power station detection robot, EOD robot secondary development, etc.
Advantages:

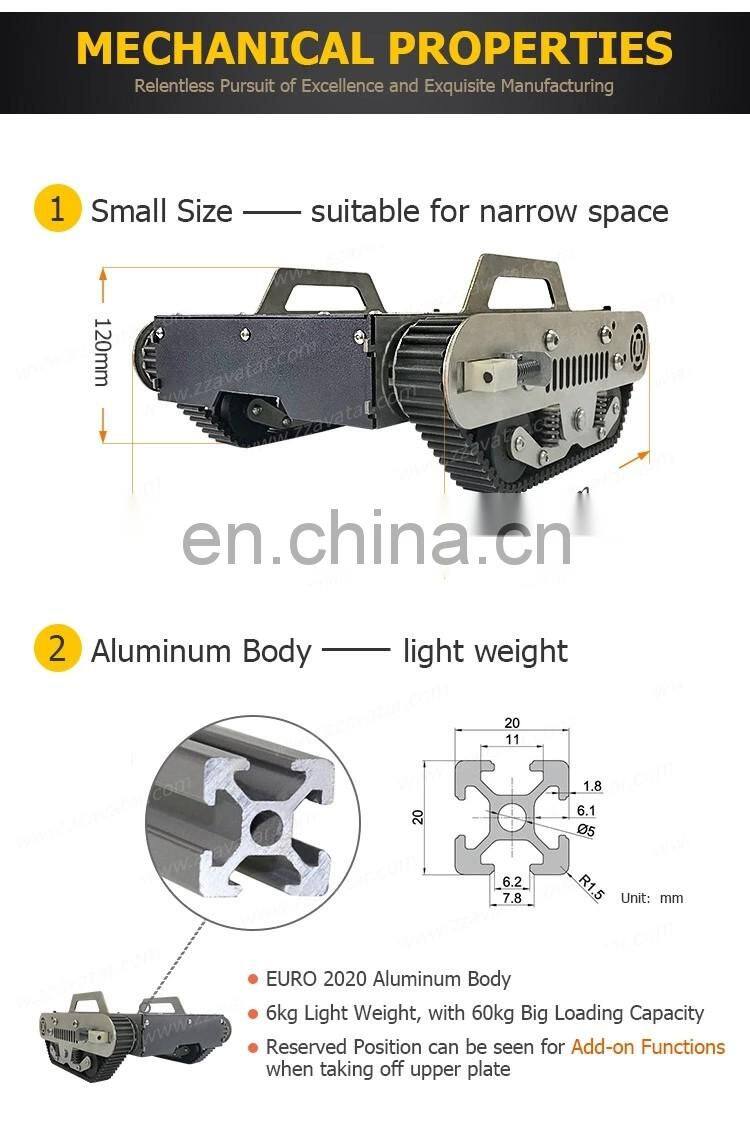

1. Small size 300*290*120mm, light weight 6.5kg, big loading capacity 60kg, especially good to work in small areas.
2. Rubber Track: with good ground adhesion, all-terrain chassis.

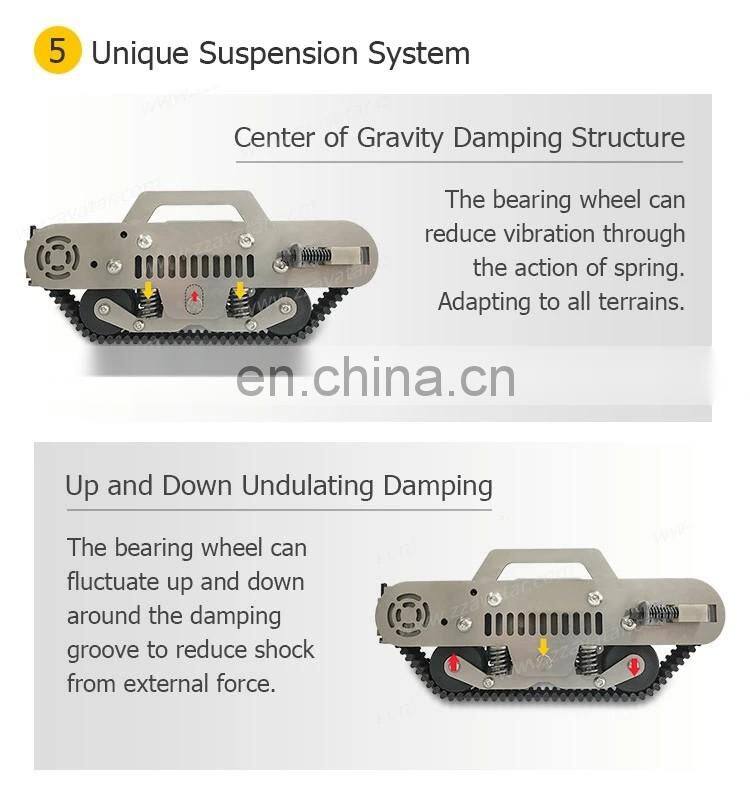

3. Patent Suspension System: 1) up and down fluctuation suspension system. 2) center of gravity shock absorption suspension. Our unique design.

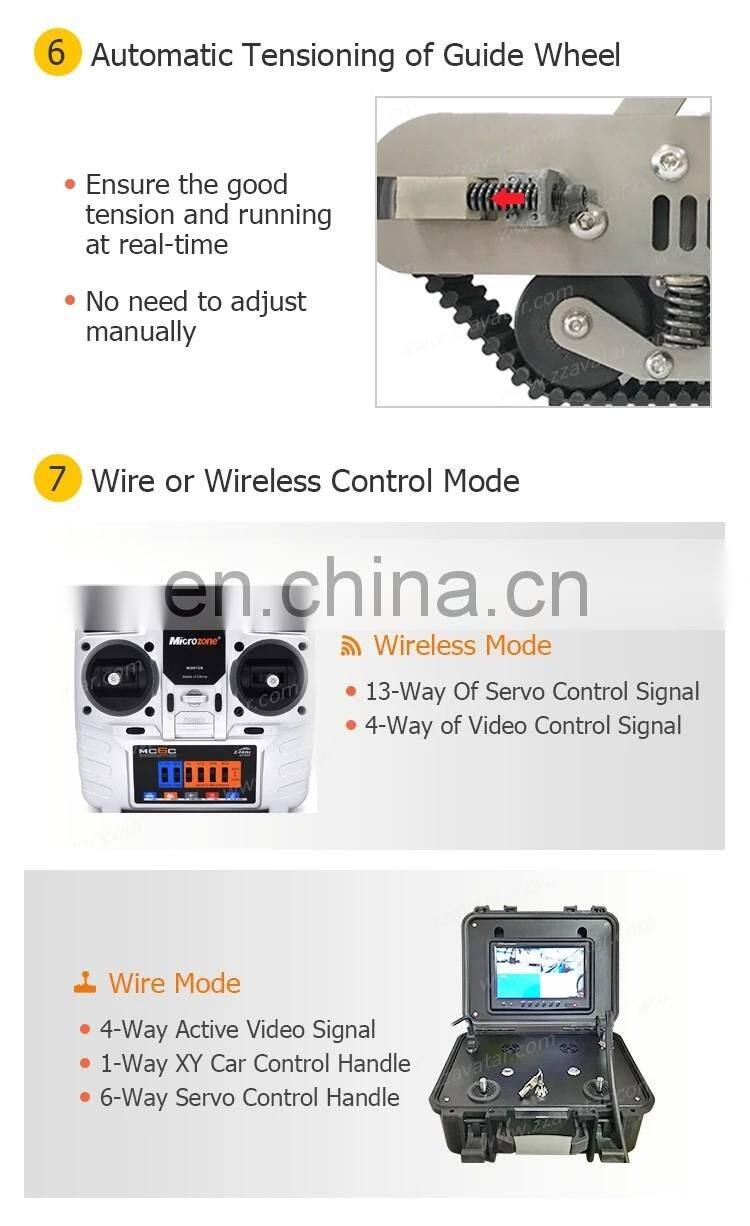

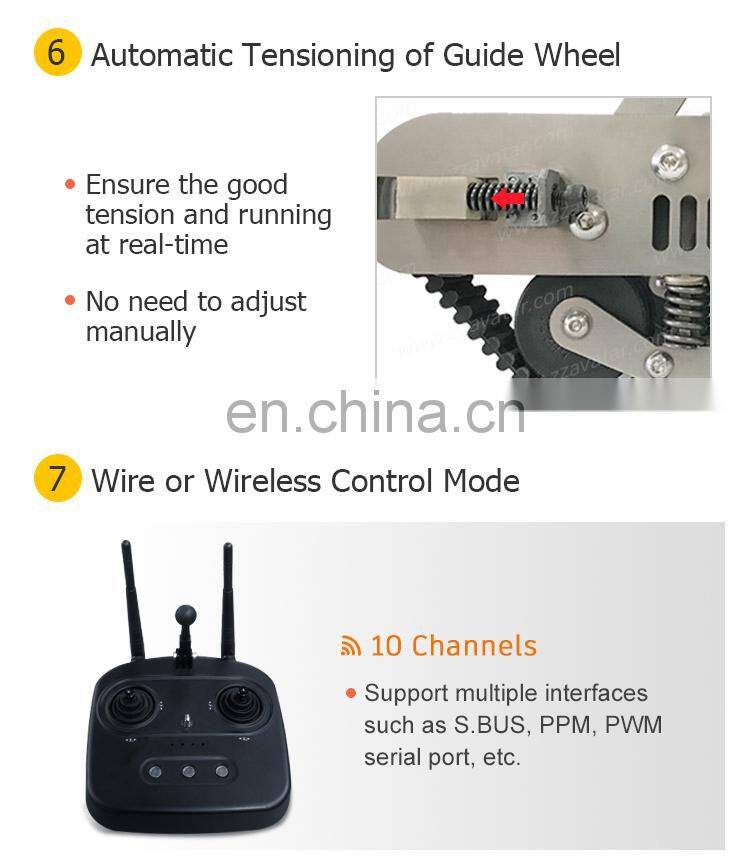

4. Guiding Wheel: self-tension, automatic adjust, ensuring timely tension and running.

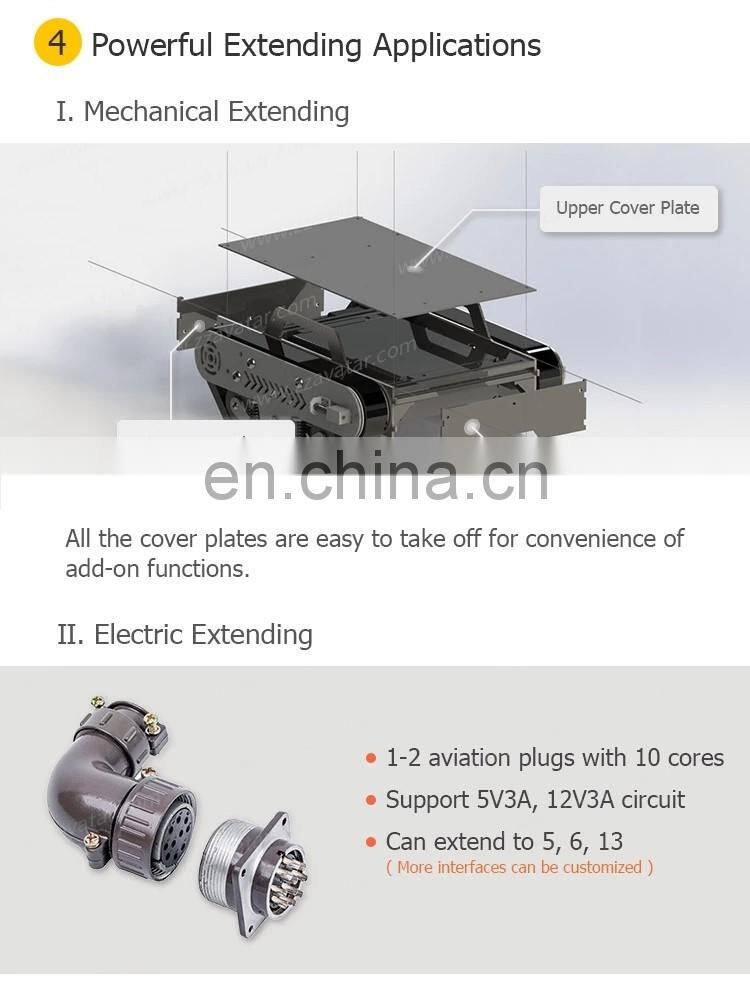

5. Separate Self-control Circuit and Extending Circuit: 1) mechanical extending with detachable front/rear/and upper cover plate, greatly reducing customizing risk. 2) Electrical extending with 5V3A, 12V3A circuit for 5/6/13 extending circuit.

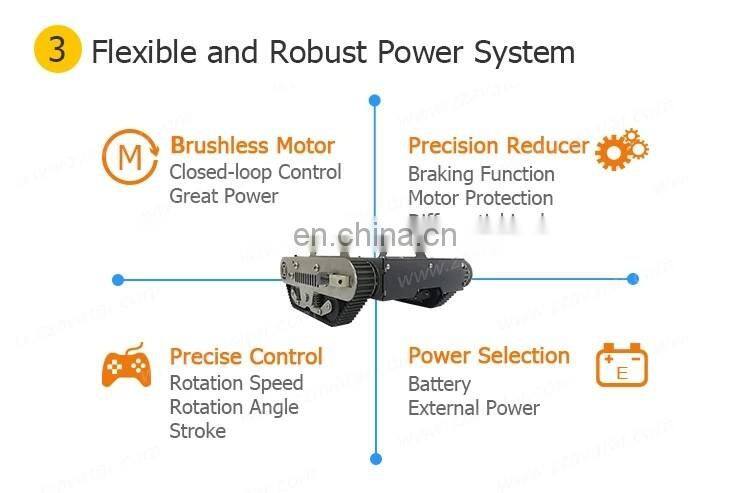

6. Power and Control: 1) battery and wireless control: support 13-Way Servo Control Signal and 4-Way active control signal. 2) wire mode: support 4-Way active control signal, with one XY lever and 6-way servo control lever.
7. Optional Modular: no-map navigation, position tracking lock, etc.
|
Model |
TinS-3 |
|
Dimension |
300*290*120mm |
|
Self Weight |
6.5kg |
|
Load Weight |
40kg(7km/h) |
|
Drive Wheel Diameter |
55mm |
|
Motor Type |
DC brushless motor |
|
Rated Power |
53W*2 30*2 |
|
Motor Step Angle |
1.8 |
|
Running Speed |
0-120m/min |
|
Damping |
Left and right * 2 shock absorption |
|
Surface Treatment |
Oxidized, Stainless steel |
|
Rated Torque |
1.1NM |
|
Reduction Ratio |
1:5.18 |
|
Track Width |
30mm |
|
Maximum Climbing |
30° |
|
Maximum Obstacle |
45mm |
|
Design Tension |
40N |
|
The Biggest Span |
170mm |

1.Warranty:one year for main machine, excluding easily wear parts. During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
2. Spare Parts: most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.

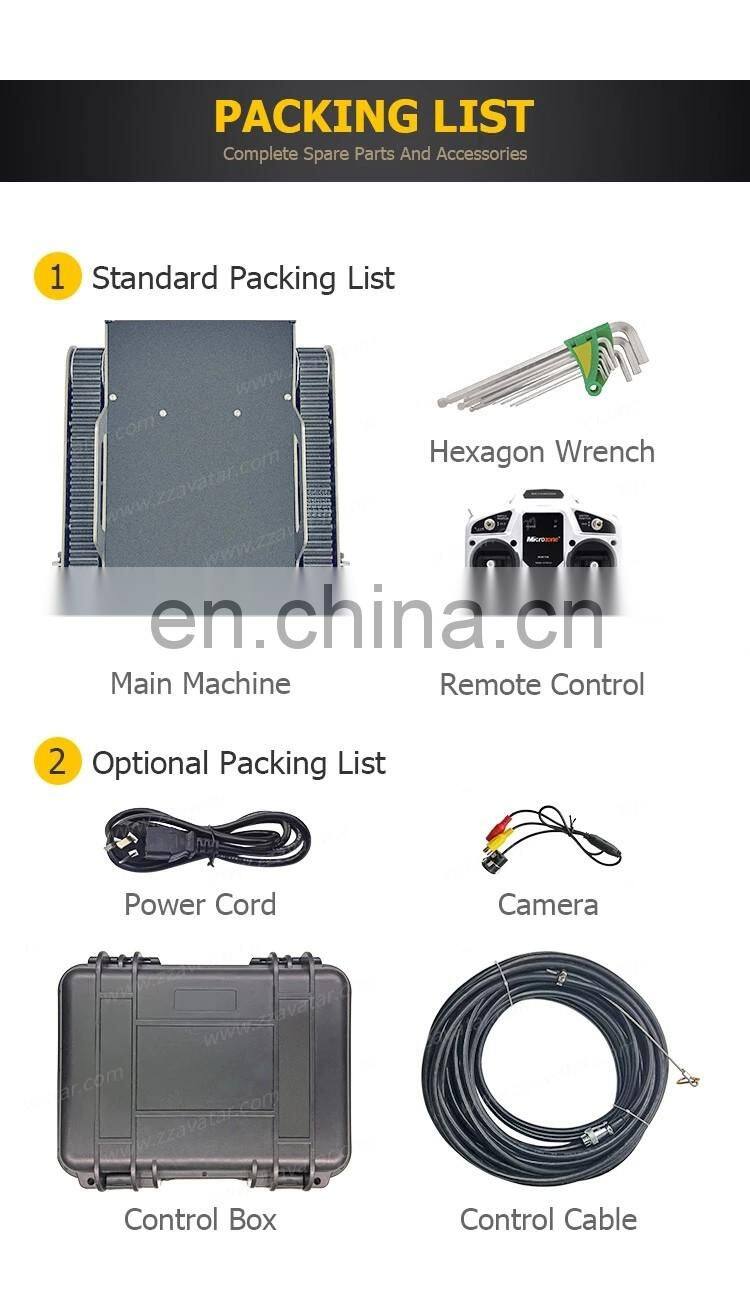

3. Operation and Maintenance: we will offer you detailed operation manual, ensuring you can use it perfectly.
4. Online Service: your question will be answer within 24 hours during working days, 48 hours during holiday.
