Product Overview

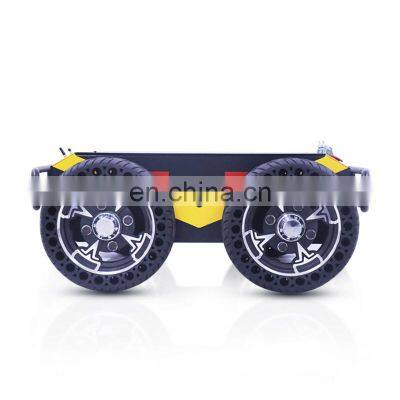

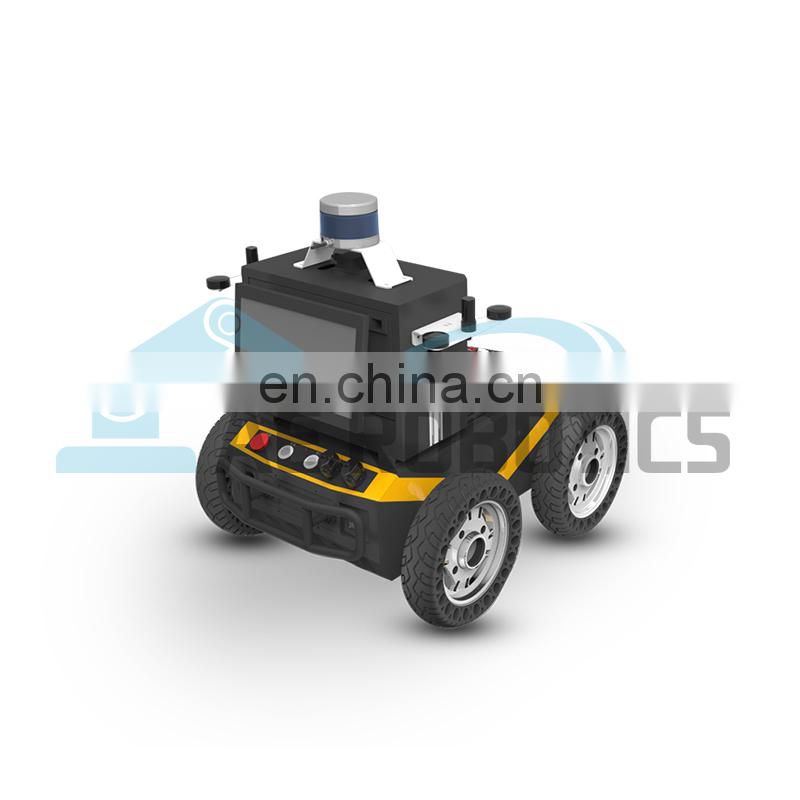

All Terrain Open Source ROS Mobile Robot
R1000 is a self-developed and produced multi-functional all-terrain intelligent mobile robot with IP67 protection level. Provides a wealth of expansion interfaces, which can integrate sensors such as lidar, cameras, and depth cameras, and can be equipped with accessories such as PTZs, robotic arms, and grippers. It can realize SLAM, autonomous path planning, intelligent obstacle avoidance and other functions. Various application scenarios such as inspection, unmanned driving, collaborative control, remote grabbing and manipulation.
PRODUCT SPECIFICATIONS
Technical indicators | Basic Edition |
Size | 865×650×345mm |
swing diameter | 1000mm |
dead weight | 84Kg |
specified load | 120Kg |
Ground clearance | 100mm |
tires | 12.1 inches (308mm) solid tire |
drive mode | four-wheel Independent drive |
motor | Brushless Servo Motor |
turn | differential steering |
brake | Servo brake, motor power off brake |
Protection class | Ip67 |
Navigation method | none |
collision detection | Front and rear electronic ollision bar detector |
emergency stop | Rear emergency stop button |
Rated speed | 1.6m/s |
Gradeability | Full load climbing 15°, load 50kg climbing 30° |
Obstacle dearance heighi | 6cm fulload vertical), 10cm (load 55kg) |
positioning accuracy | none |
driving direction | Forward, backward, rotate 360° in place |
communication | RS232 |
Power Output | 12V (10A), 24V (10A), battery (10A), total outp ut power 500W |
remote control | 2.4GHz ISM, remote control distance≤200m |
Rated operating time | 6-8 hours |
Charging time after full discharge | ≤3.5hours |
battery material | LiFePO4 |
Nominal voltage | 48V |
capacity | 1440Wh(48V 30Ah) |
