Cobot Industrial Robotic Arm AE AIR7L-B AE Cobot 6 Axis 7kg Payload Robot Arm 7 Axis

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Overview

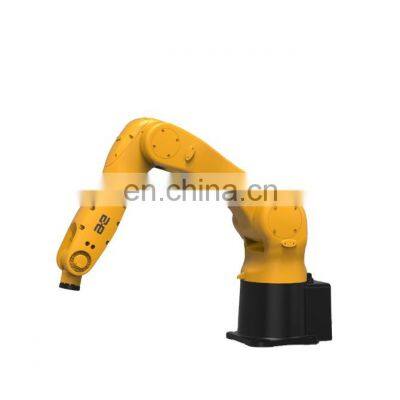

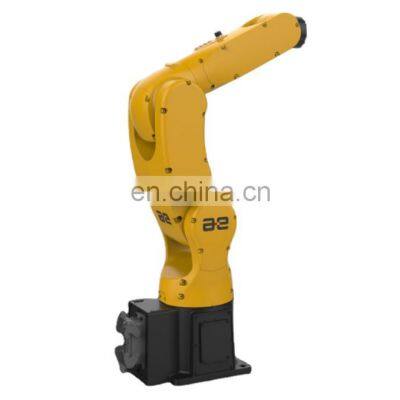

AIR7L-B 7kg payload 6-axis industrial robot

AIR7L-B is 7kg payload compact industrial robot. It is the smallest robot in AE robot family. In AE robotics family there are 3kg,7kg,8kg,10kg,20kg,50kg and 165kg payload robot. Use Japan nabtesco RV gearbox reducer and China No.1 Leaderdrive harmonic gearbox reducer. The robot each joint communicate by high speed bus EtherCAT.

Products Description

Type			AIR7L-B
Axes			6
Payload			7Kg
Manipulator	Weight	53Kg
Manipulator	Weight:	Reach	920mm
Positioning accuracy	Position repeatability	±0.02mm
Ingress Protection			IP67
Mounting		Mounting	Floor/ wall/ ceiling
Working range	Axis 1 rotation	-170°/+170°
	Materials	Axis 2 arm	-100°/+135°
	Ambient humidity	Axis 3 arm	-120°/+156°
	Ambient temperature	Axis 4 wrist	-200°/+200°
	IP Classification	Axis 5 bend	-135°/+135°
	Programming	Axis 6 turn	-360°/+360°
Rotation rate	Axis 1 rotation	380°/s
	Motor Type	Axis 2 arm	320°/s
	Installation orientation	Axis 3 arm	390°/s
		Axis 4 wrist	490°/s
		Axis 5 bend	565°/s
		Axis 6 turn	815°/s

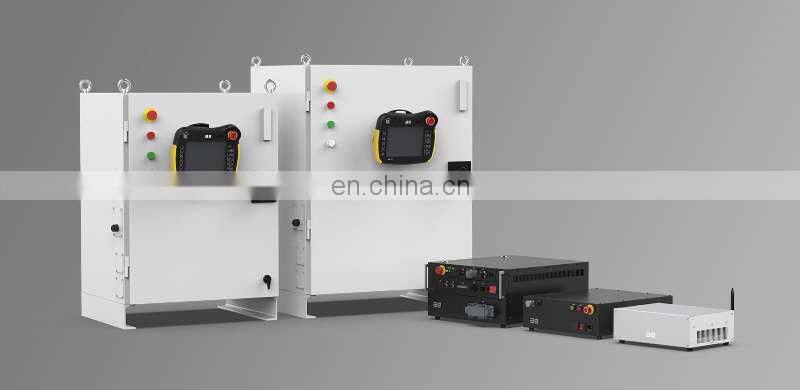

Controllers			inCube20
If the mechanical limit is removed, the working range can reach -180° /+180°

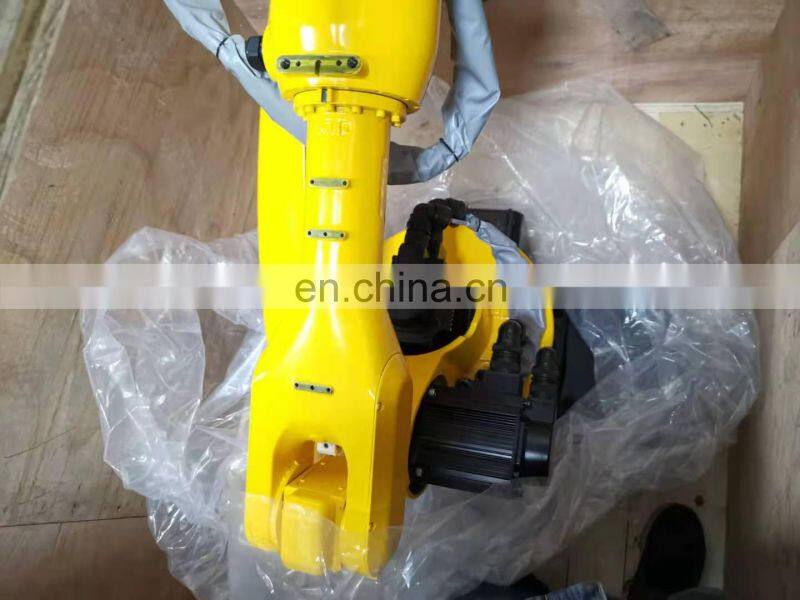

Product packaging

Similar Products

AIR10-A

AIR8-A

AIR50-A

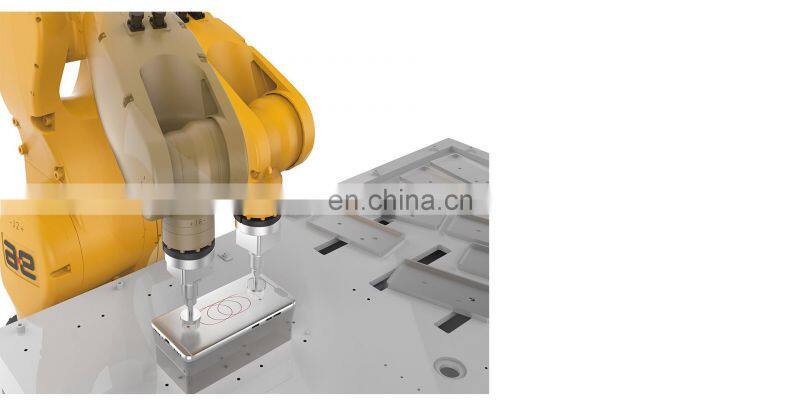

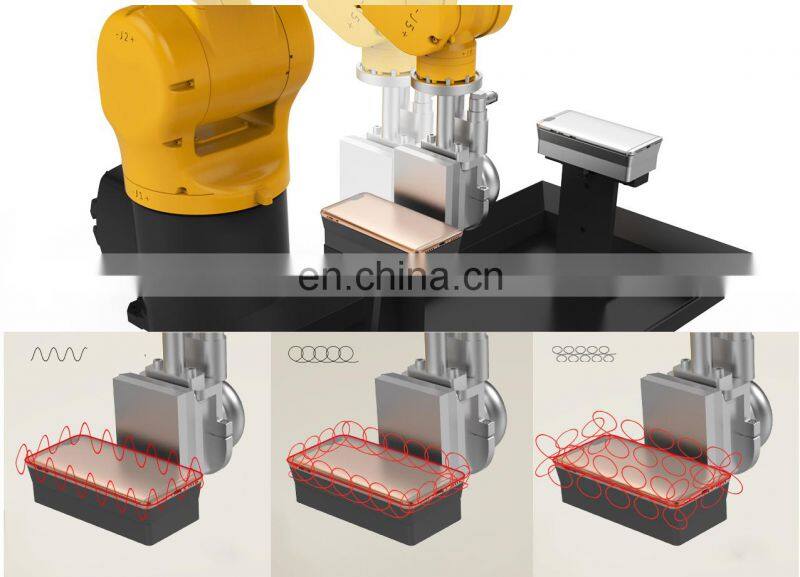

Application

AE Robotics Co., Ltd

Email: info@automationar.com

Sales Manger : Eric
P&W：+86 135 1097 8730

Tele：0755-82598262

Company Profile

AE Robotics Co., Ltd

We are an one-stop robot provider in China.Providing high cost effective robot and cobot.we are distributor of ABB,KUKA,KAWASAKI EPSON etc. and sell robot whole world. we provide customer one stop serivce, help customer customzied robotics tools.

Trust is first, Providing the best Pre-sale service and after-sale service is very important for customer. Hope we can make win-win and long-term business.

FAQ

Q1：How long time delivery time

A1：7~10workding days

Q2: What brand of gearbox
A1： J1~J3 is Japan nabtesco RV reducer, J4~J6 is Leaderdrive Harmonic reducer

Q3: How to program
A3: Teaching pendant english interface,

Q4:How many Digital interface
A4: User Digtial input and output 16/16

Q5：What is warranty
A5: 12month
