LIVTER 220v Household Saw Blade Welding Machine UN-10 Copper Rod Aluminum Wire Butt Welding Machine

Butt welding machine features:

eccentric compression, simple and applicable. Spring pressure, upending Force uniform. Easy to operate and flexible to use. Energy saving and high production efficiency. One year warranty, life-long maintenance.

Model un-10

voltage 380V

output power 10KVA

adjustment Series 7

welding diameter low carbon steel 4-10mm

upending mode spring pressure

electrode maximum distance 40mm

welding machine weight about 50kg

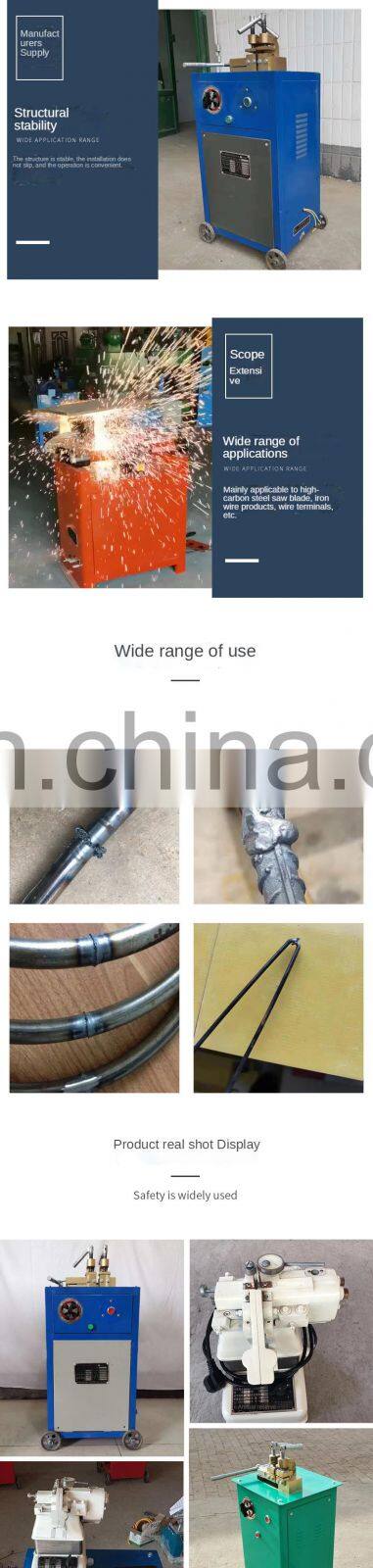

scope of Application: wire drawing nail, wire and cable, enameled wire, wire rope factory, stainless steel products, foreign trade products and other industrial departments

butt welding machine:

also known as butt welding machine, it is a kind of welding machine, which is used to realize the butt welding of strip materials, such as welding two 1 m steel bars into a 2 m steel bar. Weldable carbon steel/stainless steel/copper/aluminum and other metal materials

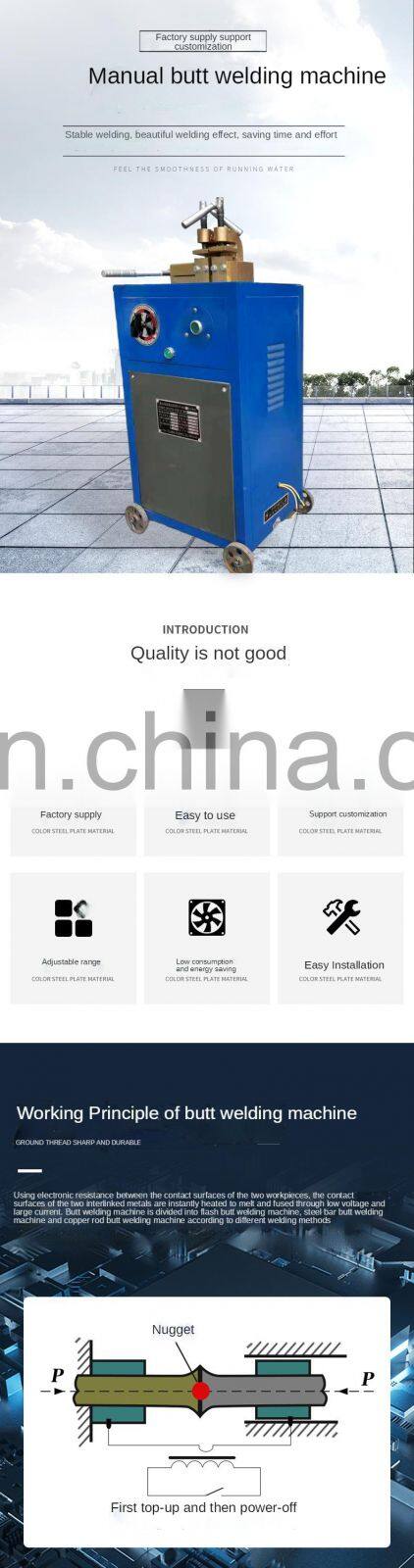

working principle:

touch welding: the work piece is opposite to the Chuck, and the two ends of the joint are close to each other. A large amount of current is directed to the work piece through the chuck, and high temperature is generated through the contact surface, when the metal reaches the plastic state, it is pressed tightly at the moving end to squeeze the two ends.

Main purpose:

used for welding rods, pipes, steel, etc. It can weld metal with a diameter of 7mm (up to 700mm, see un-150 type in our store), which is suitable for various hardware products industries, such as bicycles, fans, kitchenware and utensils, etc.

FAQ

1.What is your MOQ?
Our MOQ is usually only 1 PCS.

2.What is your delievery time?
The time of delievery is around 10-45days.

3.What is the shipping port?
We ship the goods via Xiamen or Shanghai port.

4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Xiamen Fujian Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee
shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.

2 Cooperating with the customers all over the world and knowing the markets very well.

3 Strongtech is a listed company. Everything can be rest assured working with us.

4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Butt welding machine operating procedures:

1. Motor, electrical, air compressor, etc. on welding equipment shall be implemented according to its relevant regulations. There is also a complete protective shell, and there should be a protective cover at the first and second terminals.

2. On-site use of electric welding machine should be equipped with rain-proof, moisture-proof, sun-proof shed, and equipped with fire service inventory.

3. During welding, welding and coordination personnel must take safety measures to prevent accidents such as electric shock, Air fall, gas poisoning and fire.

4. Welding and cutting are strictly prohibited on pressure pipes, containers containing inflammable and explosive materials and stressed components in operation.

5. When welding copper, aluminum, zinc, tin, lead and other non-ferrous metals, it must be carried out in a well-ventilated place, and the welding personnel should wear gas masks or breathing filters.

6. When welding in the container, the following measures must be taken: there must be air inlet and air outlet in the container and ventilation equipment must be set; The lighting voltage in the container must not exceed 12V, and someone must be present for monitoring during welding, welding in containers that have been sprayed with paint or plastic is strictly prohibited.

7. When welding preheated weldments, baffles should be set to isolate the radiant heat emitted by weldments.

8. When welding or cutting at high altitude, safety belts must be fastened. Fire prevention measures should be taken around and below the weldments and monitored by special personnel.

9. When the welding wire passes through the road, it must be raised or buried underground through the protective pipe. For example, when passing through the track, it must pass under the track.

10. Grounding wire and handle wire shall not be placed on inflammable and explosive articles with heat source, grounding wire shall not be connected to pipelines, machine tool equipment and building metal frame or track, and grounding resistance shall not be greater than 4 euros.

11. Open-air electric welding is not allowed in rainy days. When working in Feuchtgebiete, the operator should stand in the place where the insulation is laid and wear the insulated shoes.

12. For electric welding machines that have been stopped for a long time, the insulation resistance must be checked. 5mΩ, and the wiring part must not be corroded or damp.

13. The welding pliers should be firmly connected with the handle wire, and the welding should not be held by arms. When removing welding chips, the face should avoid the cleared weld.

14. During load operation, welding personnel should always check the temperature rise of electric welding machine. If the temperature rise exceeds 6℃ of grade A and 8℃ of Grade B, it must stop running and cool down.

15. Within 1m of the welding site, oxygen cylinders, acetylene generators, wood and other flammable materials shall not be stacked.

16. After the operation, clean up the site, destroy the fire, cut off the power supply, lock electric brake box, and eliminate the residual heat of solder before leaving.

17. The use and transportation of all kinds of gas cylinders (oxygen, argon, helium, acetylene and carbon dioxide, etc.) of welding equipment shall comply with the regulations on safety supervision of gas cylinders.
