Intermediate bulk container IBC grid IBC Cage Frame automatic production line
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
IBC Tank Tubular Mesh Welding Machine with Automatic Unloading System
-
IBC Tank Stainless Steel Tubular Cage Automatic Welding Machine
-
Intelligent Ibc Automatic Tubular Mesh Six-head Spot Welding Machine
-
IBC Tubular Mesh Welding Machine With Automatic Feeder And Unloading System
-
Hot Sales Servo Motor Welding Machine//
-
Compressor Frequency Inverter Automatic Motor Welding Machinery
Product Description
Product Description

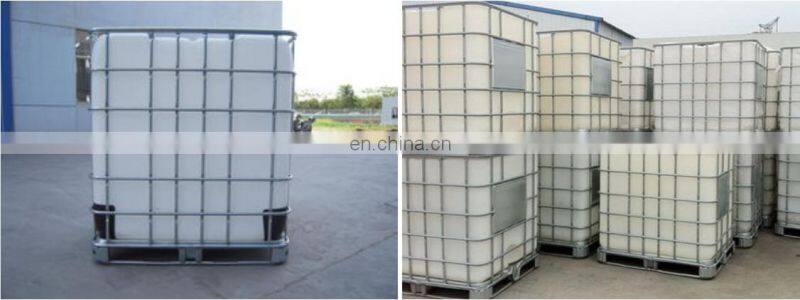

"Gantry Type Welding Machine Is The Special Automatic Welding Machine For Welding Ibc Tank Tubular Frame.IBCIntermediate Bulk Container Is An Essential Tool In Modern Storage, Liquid Transportation. The Ibc Tank Is Composed Of Inner Container And Metal Frame. The Metal Frame Is Made Of Bended Tubular Mesh.

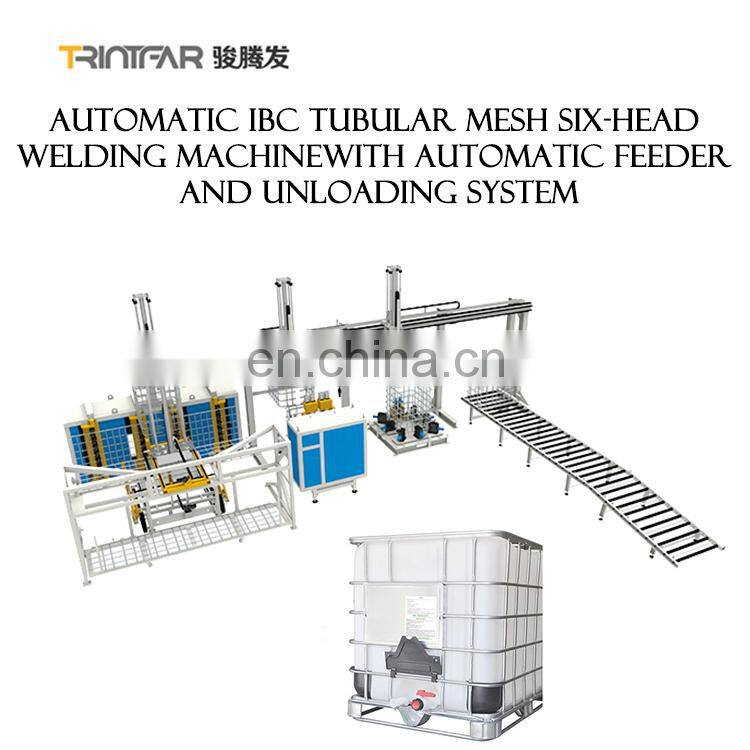

Used for the production of IBC tonnage frame. The production process includes the welding of the galvanized pipe to the frame mesh, the bending of the outer frame, the insert riveting of the two ends of the screen frame after bending, the flattening and drilling of the connection between the bottom tube and the bottom plate of the screen frame, and the selection of steel for some parts. The feet are welded on the steel feet of the bottom support. The frame mesh welding machine uses an intermediate frequency inverter resistance welding controller, which has the advantages of fast welding speed, high current, and good penetration. It is suitable for welding IBC frame mesh galvanized ribbed crescent tube, galvanized ribbed square tube, etc. Material, and achieve excellent welding strength and solder joint appearance; the welded mesh can be manually transported or automatically unloaded by a manipulator to be stacked on the mesh stacking trolley and transported to the next process; the welding line uses a pneumatic manipulator With the conveyor belt, the automatic feeding, reversal, bending, locking, flattening, punching and conveying of the mesh can be achieved.
Specification
item | value |
Condition | New |
Machine Type | Welding Manipulator |
Applicable Industries | Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining, Other |
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
Local Service Location | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan |
Showroom Location | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Morocco, Argentina, South Korea, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Tajikistan, Japan, Malaysia, Australia |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2021 |
Warranty of core components | 1 Year |
Core Components | PLC, Engine, Gearbox, Pressure vessel, Gear |
Place of Origin | China |
Shanghai | |
Brand Name | Trintfar |
Certification | ISO CCC CE |
Warranty | 3 years |
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support | |
Key Selling Points | Automatic |
Weight (KG) | 4000kg |
Voltage | 380V |
Current | Other |
Rated Capacity | 90KVAx6 |
Rated Duty Cycle | 50% |
Dimensions | Other |
Usage | Automatic Welding |
Usage | IBC IBC tank tubular frame welding |
Place of Origin: | Chnia |
Welding Head: | 6 sets |
Stepping Welding Moving Speed: | 500mm-1000mm/sec |
