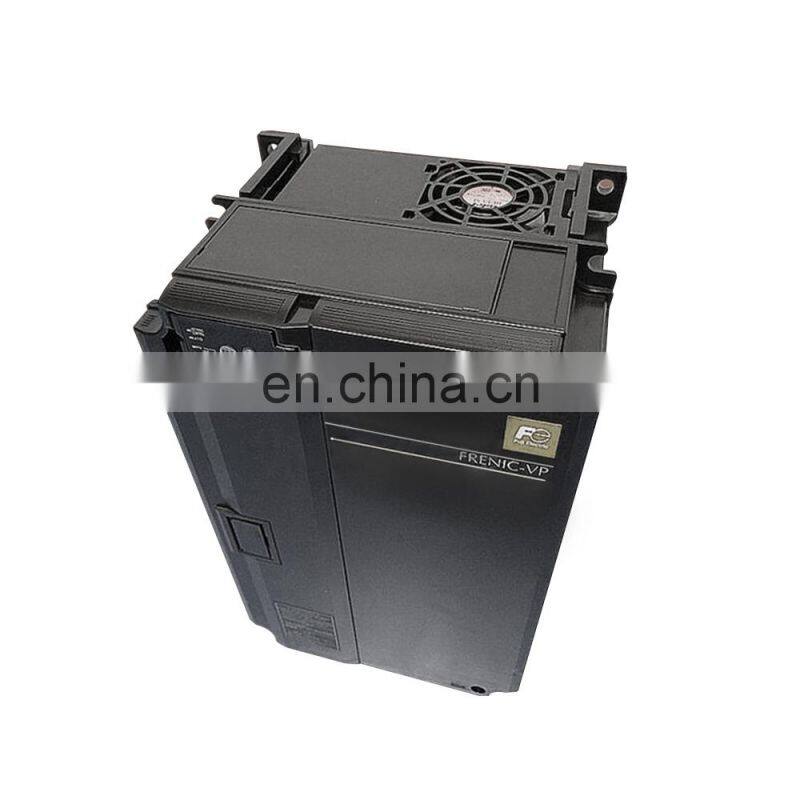

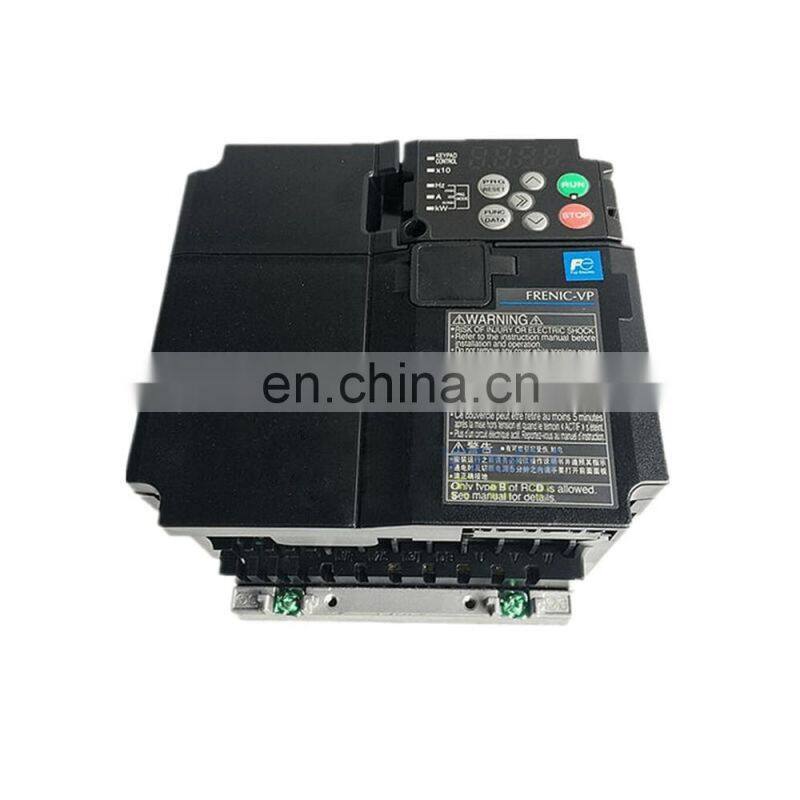

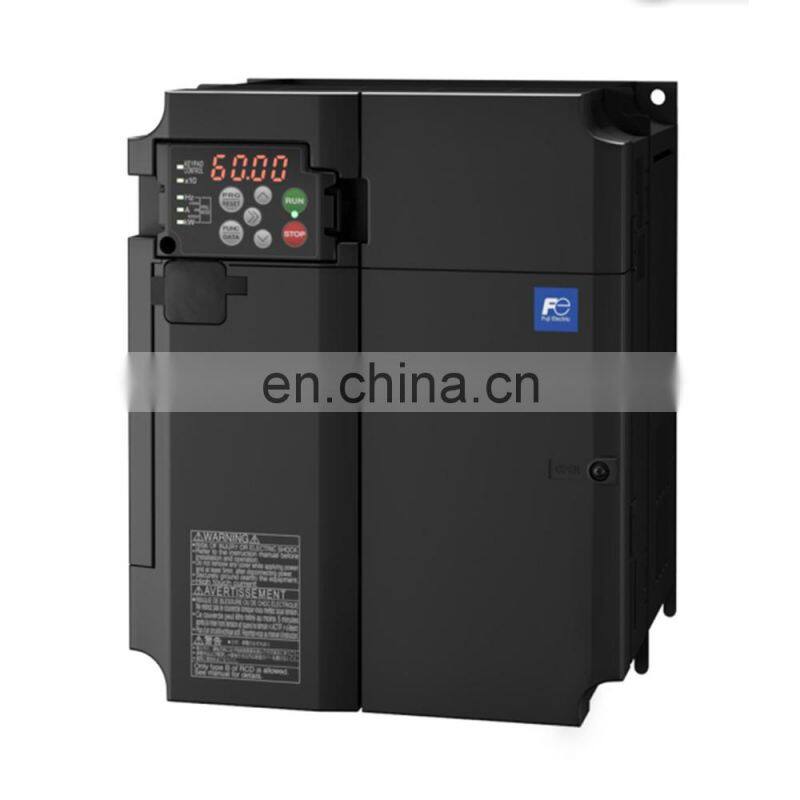

Latest original Fuji Frequency converter FRENIC-VP Series FRN0018 0013 0009 0025 0031 0037 0044 0059F2S-4C
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Siemens V20 frequency converter
-
Siemens V20 frequency converter 0.37/0.55/0.75/1.1/1.5/2.2/3/4/5.5/7.5/11kw Siemens frequency converter
-
CS aluminum alloy single diaphragm coupling high precision servo motor connecting sleeve diaphragm elastic coupling
-
Hot Selling Product Pllc New Gsk Atc Mini Numerical NEWKer 3/4axis Control Controller Lathe
-
Hot Sell Mini Atc Control Motor And Controls For Flat Bed Seimen Controller Lathe
-
metal cnc fiber laser cutting machine
Product Description
Product Description
Product features
① Realize the optimal control of air conditioning equipment and improve the energy-saving effect
Air conditioning equipment needs to precisely control the operation of cooling tower fan and cooling water pump according to different flow, pressure and temperature of circulating cooling water. The standard accessory "user customized logic" of this product has powerful calculation function and realizes the * optimal control of air conditioning equipment. Therefore, the power consumption is reduced by about 45% compared with previous products.
Standard with new functions and custom logic |
● constant temperature difference control and estimated end pressure control can be carried out by organizing user-defined logic |
● the user can create separate time series. |
● up to 200 levels can be combined. No special environment is required |
● digital logic circuit or analog calculus circuit can be formed by digital and analog input and output signals |
● logic set by password function can be protected |
② More operable touch screen with remote operation
The communication touch screen (optional) can display "current value", "set value", "power consumption" and other information. Even if it is far away from the frequency converter host, it can confirm and control the operation status of the air conditioning equipment in time.
● the operation panel is equipped with a separate RS-485 port (terminal block) as standard |
● optional with USB operation panel for communication with PC |
● after installing the option card, it can support various communication interfaces. I / O series: relay output, analog input / output, temperature measurement resistance input (PT100) Communication Series:DeviceNet, PROFIBUS-DP, LonWorks, CC link |
● removable interface board is adopted |
●Support for multiple languages |

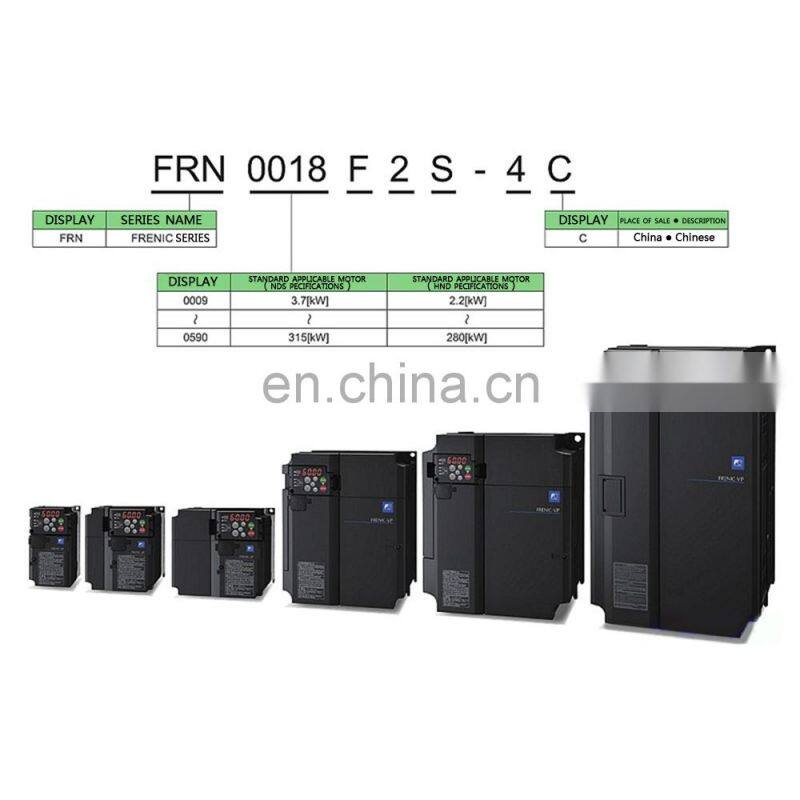

Specification
Applicable motor capacity | model | Dimension (W × H × D） |
3.7kW | FRN0009F2S-4C | 140mm×130mm×143mm |
5.5kW | FRN0013F2S-4C | 180mm×220mm×158mm |
7.5kW | FRN0018F2S-4C | 180mm×220mm×158mm |
11kW | FRN0023F2S-4C | 180mm×220mm×158mm |
15kW | FRN0031F2S-4C | 220mm×260mm×190mm |
18.5kW | FRN0037F2S-4C | 220mm×260mm×190mm |
22kW | FRN0044F2S-4C | 220mm×260mm×190mm |
30kW | FRN0059F2S-4C | 250mm×400mm×195mm |
37kW | FRN0072F2S-4C | 250mm×400mm×195mm |
45kW | FRN0085F2S-4C | 326mm×550mm×261mm |
55kW | FRN0105F2S-4C | 326mm×550mm×261mm |
75kW | FRN0139F2S-4C | 361mm×615mm×276mm |
90kW | FRN0168F2S-4C | 361mm×675mm×276mm |
110kW | FRN0203F2S-4C | 361mm×740mm×276mm |
132kW | FRN0240F2S-4C | 536mm×740mm×321mm |
160kW | FRN0290F2S-4C | 536mm×740mm×321mm |
200kW | FRN0361F2S-4C | 536mm×1000mm×366mm |
220kW | FRN0415F2S-4C | 536mm×1000mm×366mm |
280kW | FRN0520F2S-4C | 686mm×1000mm×366mm |
315kW | FRN0590F2S-4C | 686mm×1000mm×366mm |
Packing & Delivery
FAQ
Q: Do you support customized manufacturing?
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below
